IoT connected Gateway 2M black - 30807.G

Pdf
Vimar - 30807.G - IoT connected Gateway 2M black
Vimar - 30807.G - IoT connected Gateway 2M black

30807.G
Wiring devices / View Wireless wiring devices / LINEA / Devices

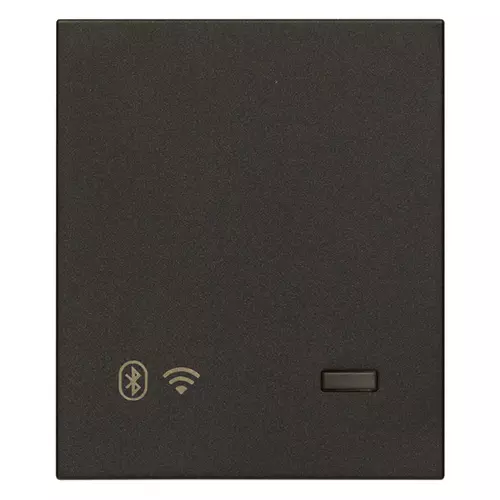

IoT connected Gateway 2M black
IoT Bluetooth Wi-Fi Gateway for integration, configuration, supervision of VIEW Wireless, via Cloud and App for smartphone, tablet, 100-240 V 50/60 Hz power supply, black - 2 modules

Product Status
3 - Active

Class group
Installation bus systems
Class
System interface/media gateway for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
Yes
Model
Bluetooth interface
Mounting method
Flush-mounted
Width in number of modular spacings
2
Demounting protection
No
With LED indication
Yes
Updateable
Yes
Operating voltage
100,00 - 240,00 V
Voltage type
AC
Power consumption
1,00 W
Protocol
Other
Provider dependent
No
Visualization
No
Web-Server
Yes
Radio interface
Yes
IR interface
No
Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

40. Bluetooth technology

41. Wi-Fi CERTIFIED

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352688391
1 NR

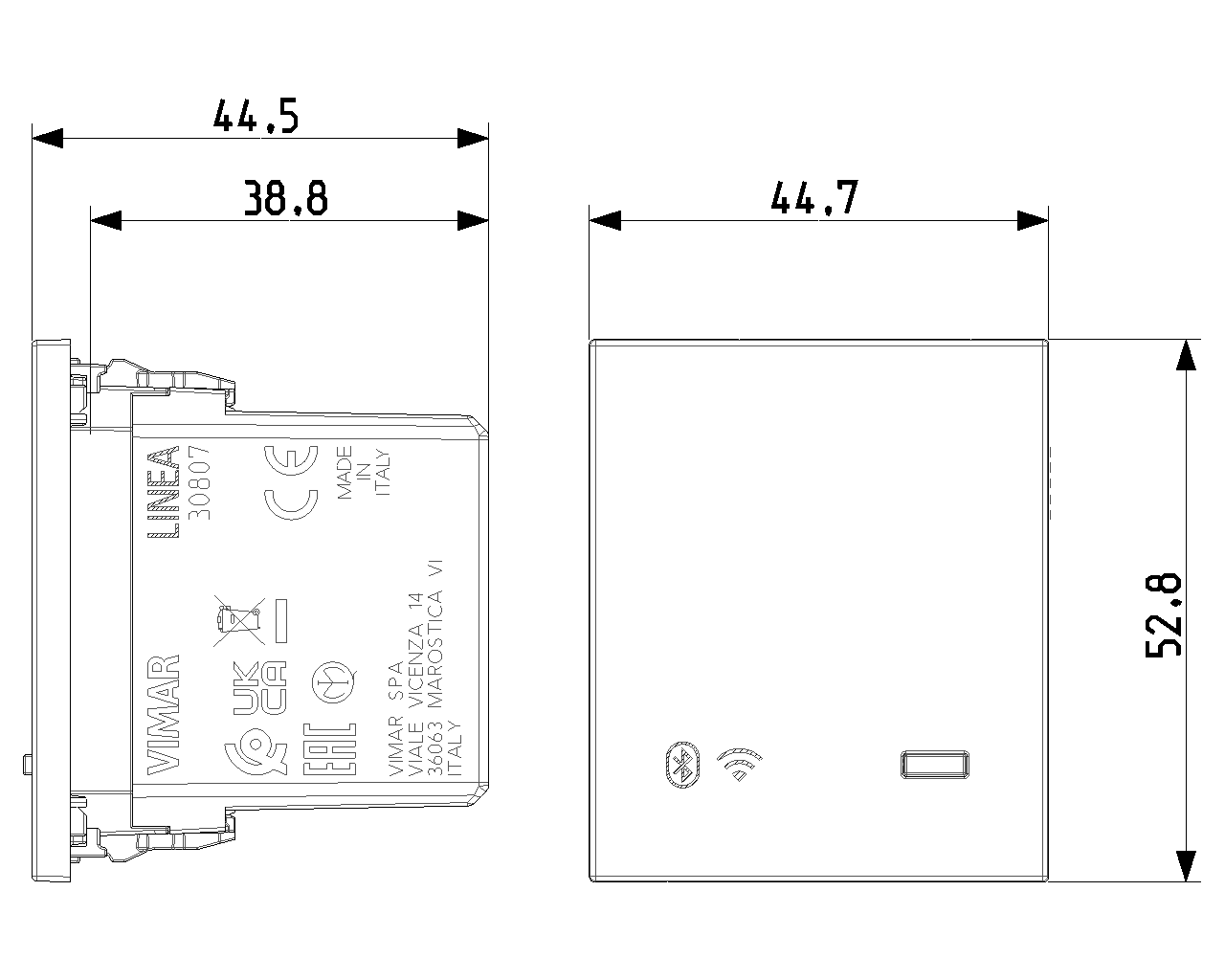

6x5.4x5.2 [cm]
59.24 [g]
Barcode Qty 60 NR
8007352744851
60 NR
37.5x30x13.5 [cm]
3,877.68 [g]
