16A IoT connected actuator white - 30803.B

Pdf
Vimar - 30803.B - 16A IoT connected actuator white
Vimar - 30803.B - 16A IoT connected actuator white

30803.B
Wiring devices / View Wireless wiring devices / LINEA / Devices

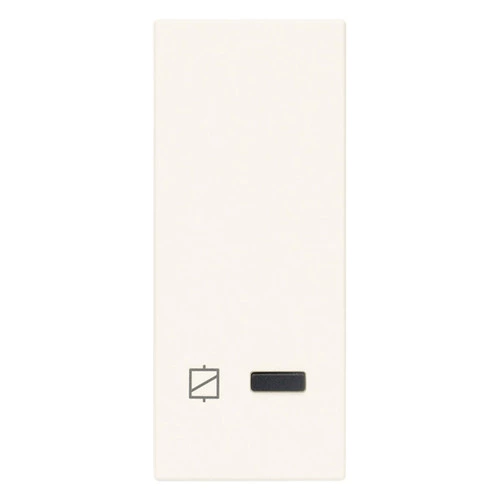

16A IoT connected actuator white
View Wireless connected electronic control device with NO 16(3,5)A 100-240 V~ 50/60 Hz relay output, local control with push button or remote control, double technology with Bluetooth® wireless technology 5.0 standard for the realization of View Wireless mesh system and Zigbee 3.0 standard, function for measuringthe instant power and load cut-off threshold, RGB LED visible in darkness with brightness control, 100-240 V 50/60 Hz power supply, white

  • Compatible with SmartThings hub

Product Status
3 - Active

You may also be interested in

30807.B
30807.B - IoT connected Gateway 2M white
Class group
Installation bus systems
Class
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
1
Local operation/hand operation
No
With LED indication
Yes
Number of digital inputs
0
Suitable for C-load
Yes
Max. number of switching contacts
1
Max. switching current
16 A
Rated current
16 A
Rated operating voltage
100,00 - 240,00 V
Different phases connectable
No
With bus connection
Yes
Bus module detachable
No
Modular expandability
No
Degree of protection (IP)
IP40

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

40. Bluetooth technology

42. Zigbee certified

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352690110
1 NR
6x4.5x5.4 [cm]
56.96 [g]
Barcode Qty 72 NR
8007352744882
72 NR
37.5x30x13.5 [cm]
4,504.75 [g]
