30585
Smart systems&products / KNX / LINEA / Devices
6-button KNX control 3M
Control device with six push buttons, KNX standard, RGB LED visible in darkness with brightness control, to be completed with 1- or 2-module interchangeable half-button caps - 3 modules
Product Status
3 - Active
You may also be interested in
Sheets, Manuals, Documentation
- Full multilanguage instructions sheet (802 kb)
- Light multilanguage instructions sheet (637 kb)
- Manuale installatore (2893 kb)
- Installer manual (1926 kb)
Product Software

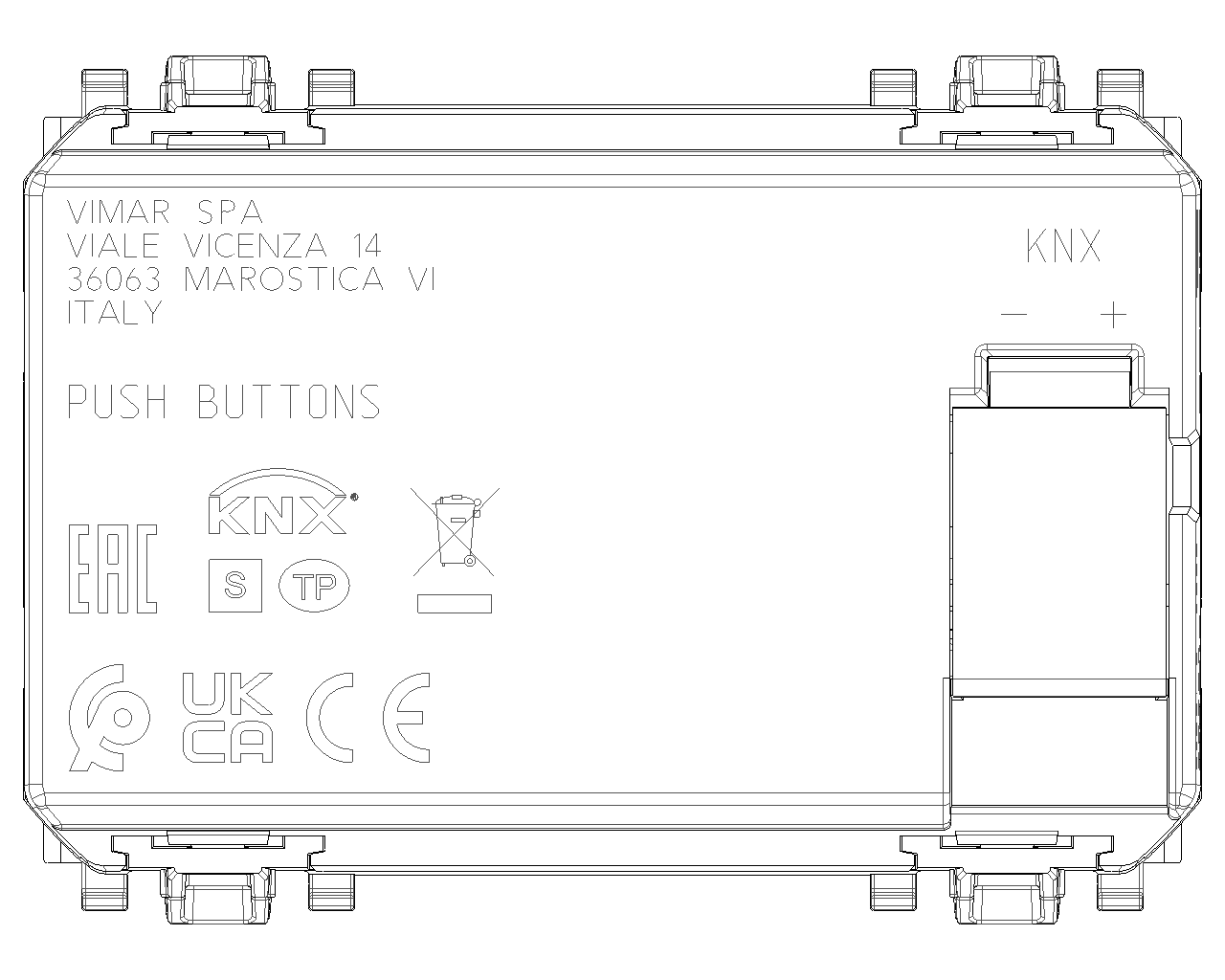

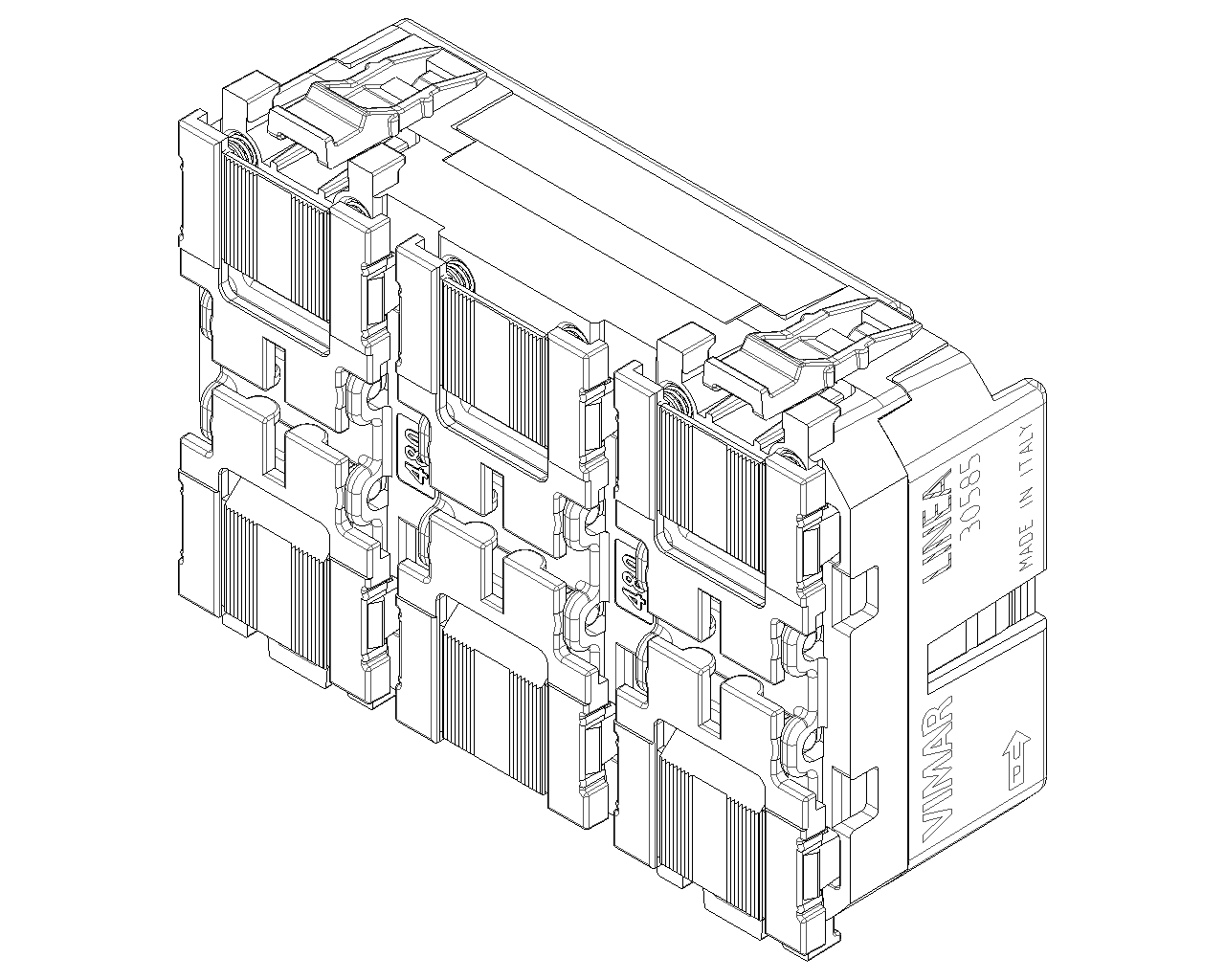

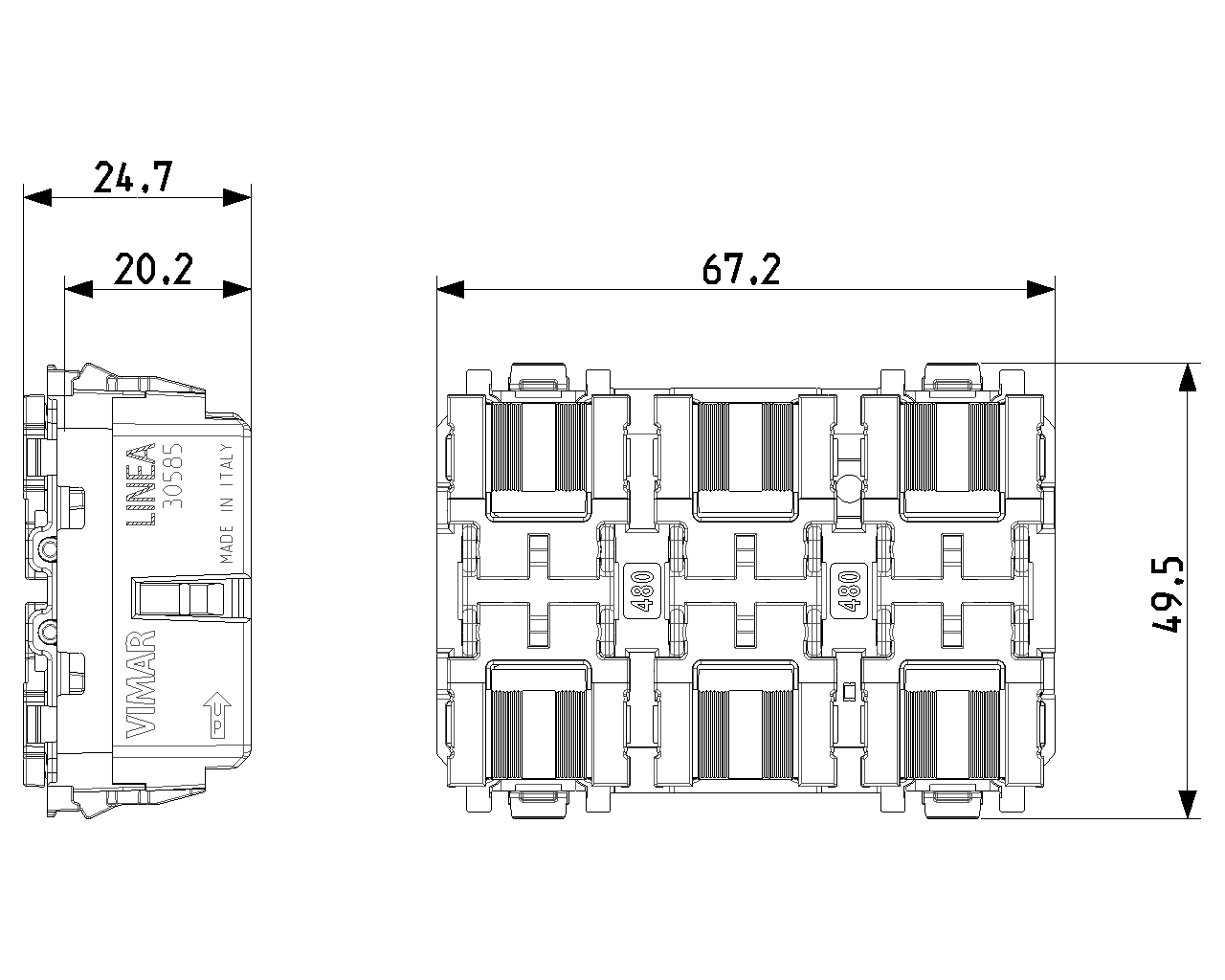

Drawings
Class group
Installation bus systems
Installation bus systems
Class
Multi operating device for bus system
Multi operating device for bus system
Bus system KNX
Yes
Yes
Bus system KNX-RF (Radio Frequent)
No
No
Bus system radio frequent
No
No
Bus system LON
No
No
Bus system Powernet
No
No
Other bus systems
Other
Other
Radio frequent bidirectional
No
No
Mounting method
Flush-mounted
Flush-mounted
Width in number of modular spacings
3
3
Number of actuation points
6
6
With display
No
No
Status-LED
Yes
Yes
IR sensor
No
No
Manual set point setting
No
No
Presence button
No
No
With temperature controller
No
No
With integrated DCF77 receiver
No
No
With time switch clock
No
No
With anti-theft/dismantling protection
No
No
Central functional unit for senders/actuators
No
No
Material
Plastic
Plastic
Material quality
Thermoplastic
Thermoplastic
Surface protection
Untreated
Untreated
Surface finishing
Matt
Matt
Colour
Other
Other
RAL-number (similar)
7024
7024
Transparent
No
No
Degree of protection (IP)
IP40
IP40
With bus connection
Yes
Yes
00. CE Marking - EU
37. Marking - Morocco
37. Marking - Morocco
Minimum order quantity: 1 NR
Barcode
8007352689527
1 NR
5.7x5.3x7.7 [cm]
48.68 [g]
8007352689534
70 NR
39.5x30x17 [cm]
3,800 [g]
