4-button KNX control+roller sh.slats 2M - 30582

Pdf
Vimar - 30582 - 4-button KNX control+roller sh.slats 2M
Vimar - 30582 - 4-button KNX control+roller sh.slats 2M

30582
Smart systems&products / KNX / LINEA / Devices

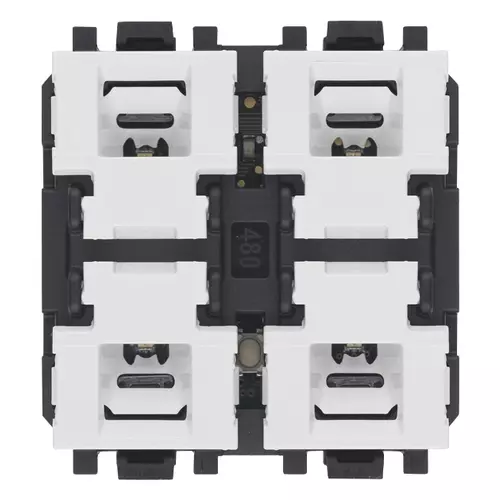

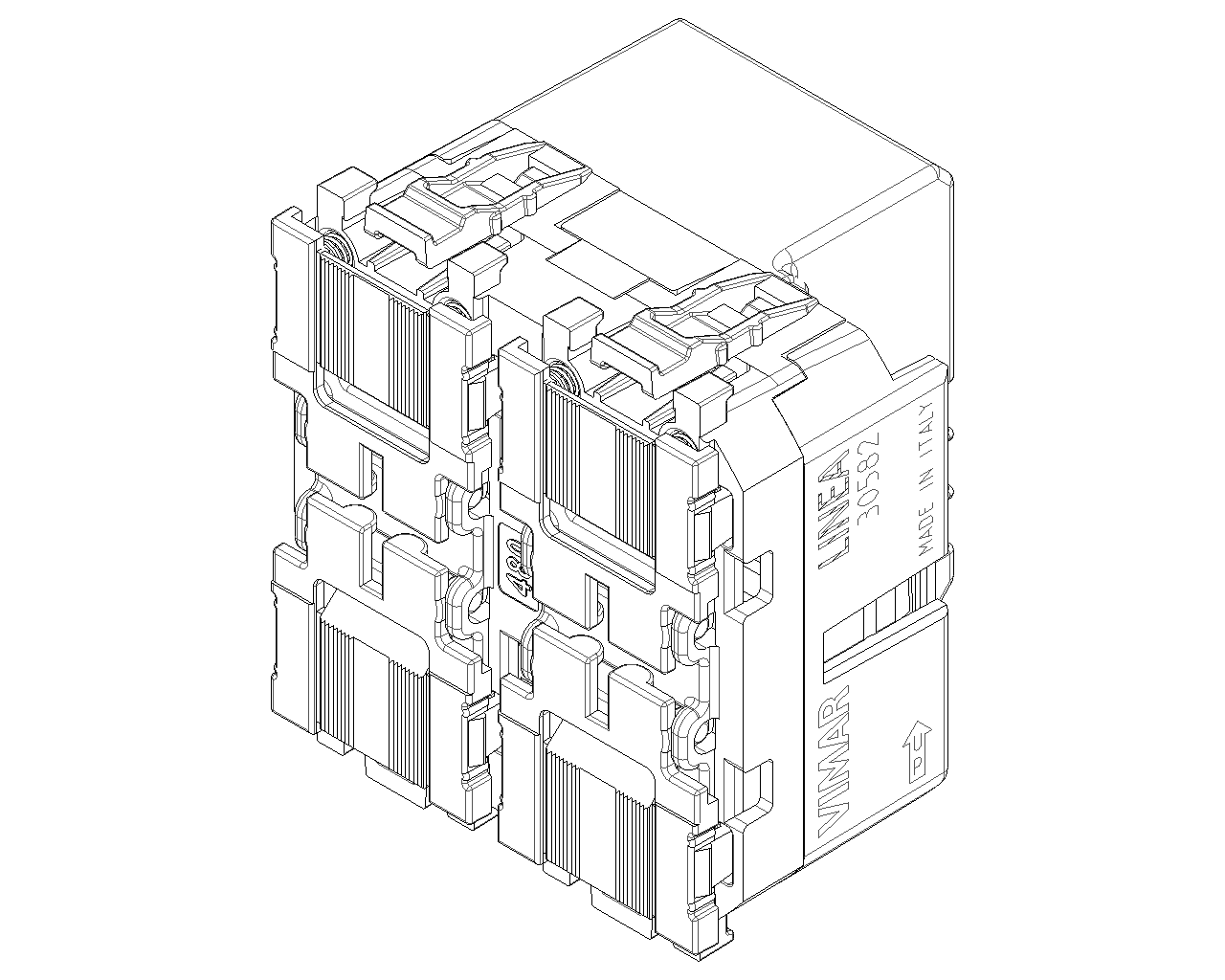

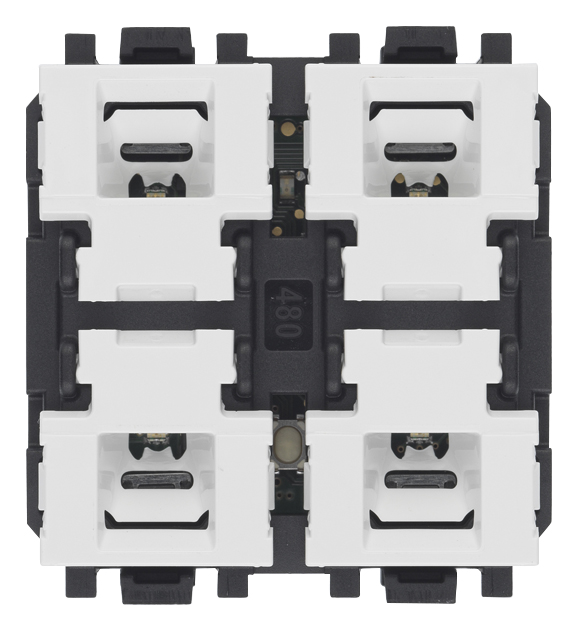

4-button KNX control+roller sh.slats 2M

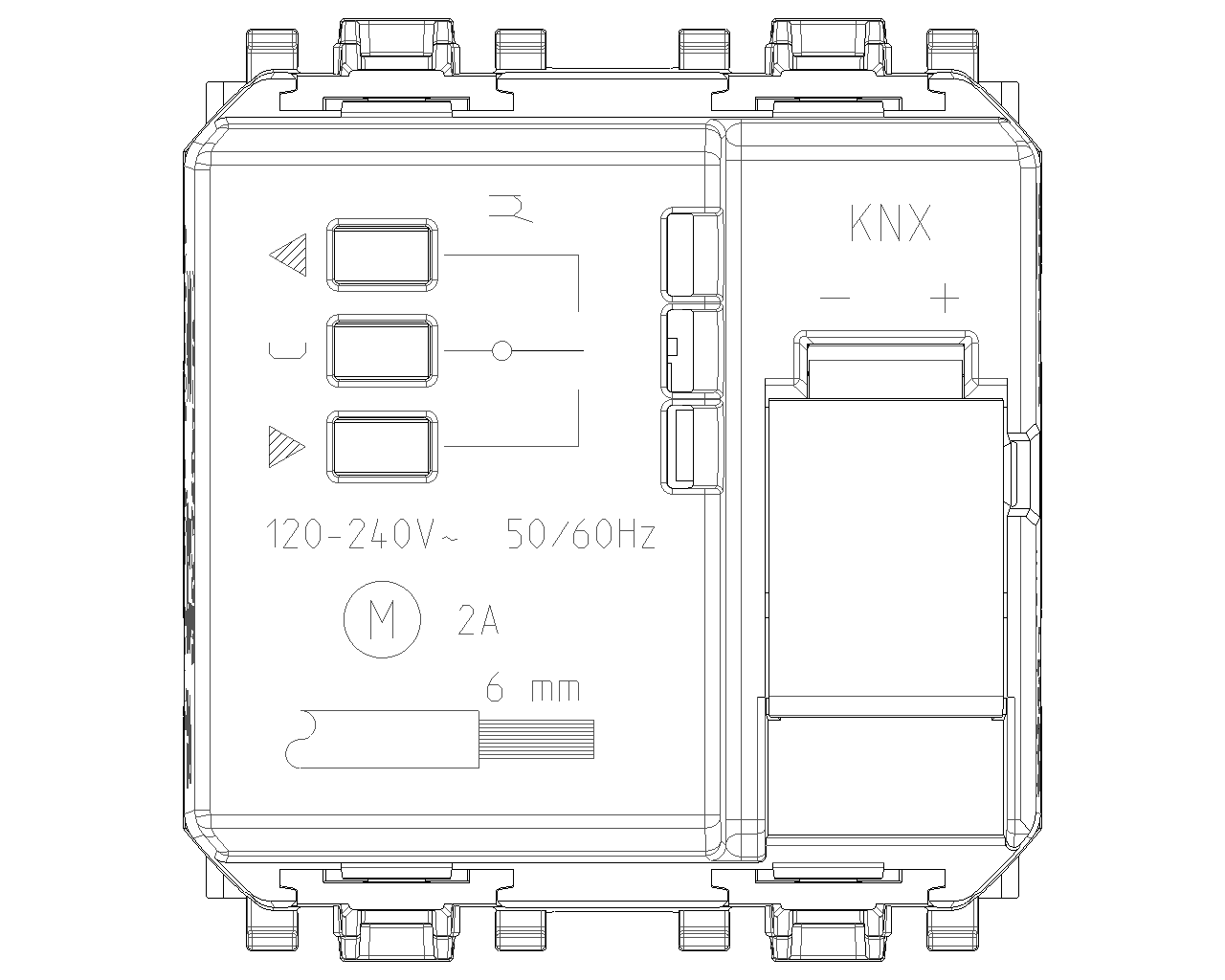

Control device with four push buttons and actuator for 1 roller shutter with slat orientation with change-over relay output for cosφ 0.6 motor 2 A 120-240 V~ 50/60 Hz, KNX standard, RGB LED visible in darkness with brightness control, to be completed with two 1- or 2-module interchangeable half-button caps - 2 modules

Product Status
3 - Active

You may also be interested in

31480.FG
31480.FG - 2 half buttons 1M arrow symbols black
31480.FB
31480.FB - 2 half buttons 1M arrow symbols white
31480.FC
31480.FC - 2 half buttons 1M arrow symbols canvas
31480.2FG
31480.2FG - 2 half buttons 2M arrow symbols black
31480.2FB
31480.2FB - 2 half buttons 2M arrow symbols white
31480.2FC
31480.2FC - 2 half buttons 2M arrow symbols canvas
Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
Yes
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
2
Number of actuation points
4
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
No
With temperature controller
No
With integrated DCF77 receiver
No
With time switch clock
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
Degree of protection (IP)
IP40
With bus connection
Yes

00. CE Marking - EU

27. KNX

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352689497
1 NR

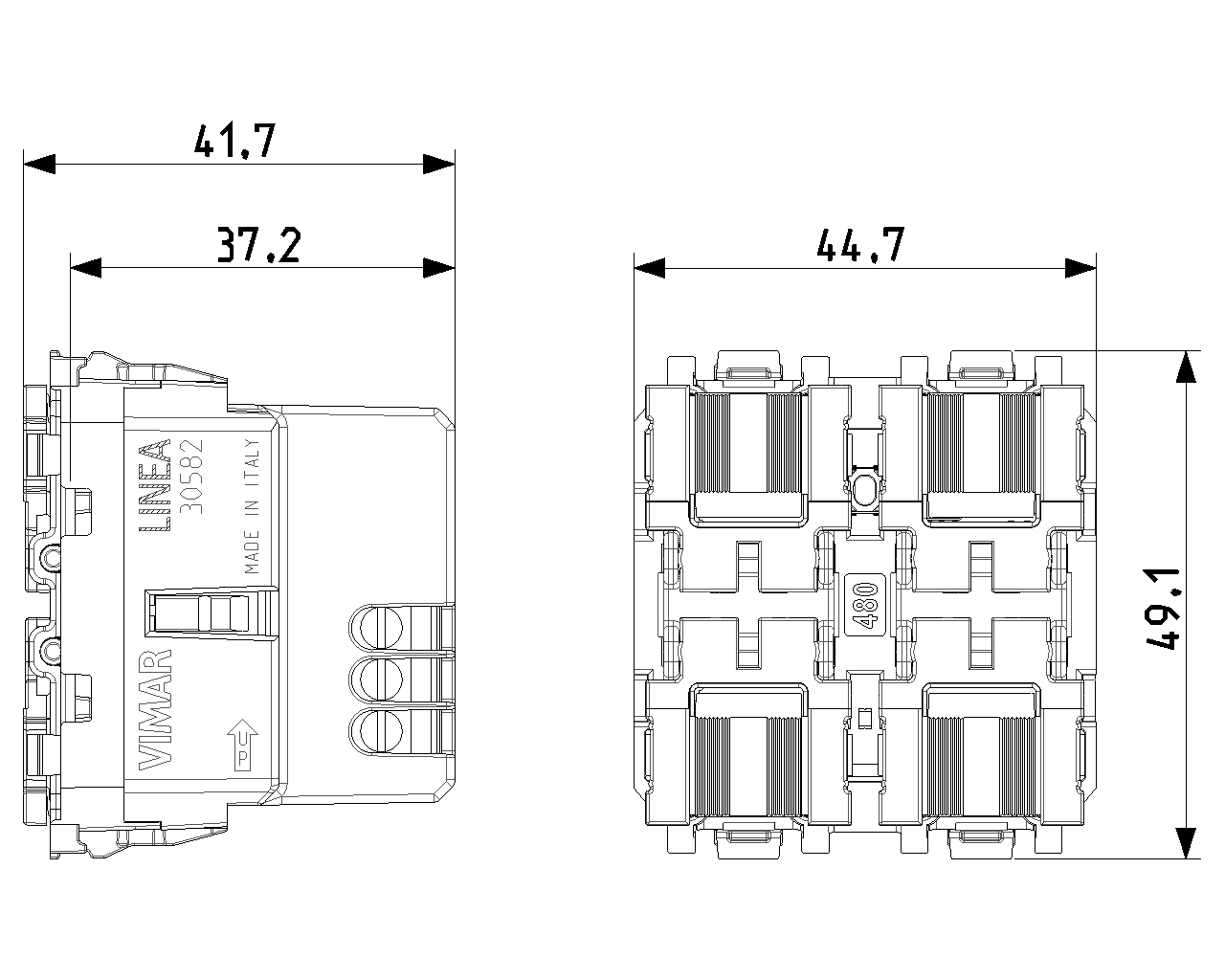

6x5.4x5.2 [cm]
61.4 [g]
Barcode Qty 60 NR
8007352689503
60 NR
37.5x30x13.5 [cm]
3,995 [g]
