EnOcean radio control - 30502

Pdf
Vimar - 30502 - EnOcean radio control
Vimar - 30502 - EnOcean radio control

30502
Smart systems&products / Smart switch&sound / LINEA / Non-modular components

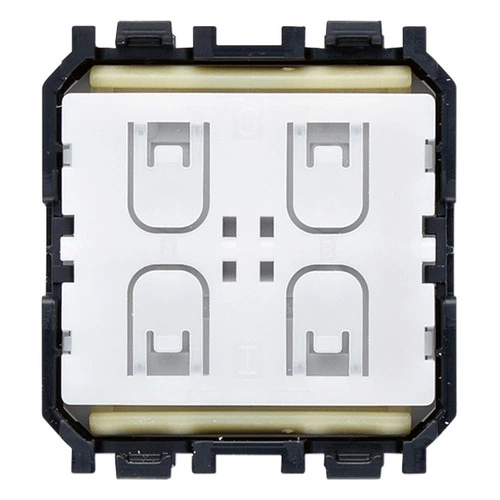

EnOcean radio control
Flat control with four push buttons with 868 MHz radio frequency transmitter, EnOcean standard, energy harvesting power supply provided by the built-in electro-dynamic generator, to be completed with dedicated buttons 31506 or 31506.2 - 2 modules

Product Status
3 - Active

You may also be interested in

31506.B
31506.B - Radio control button 1M white 2pc
31506.2B
31506.2B - Radio control button 2M white
31506.G
31506.G - Radio control button 1M black 2pc
31506.2G
31506.2G - Radio control button 2M black
31506.C
31506.C - Radio control button 1M canvas 2pc
31506.2C
31506.2C - Radio control button 2M canvas
30507.G
30507.G - Radio control frame 2M black
30507.B
30507.B - Radio control frame 2M white
Class group
Installation bus systems
Class
Light control unit for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
Yes
Bus system LON
No
Bus system Powernet
No
Other bus systems
None
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
2
With bus connection
No
Substation input
No
Local operation/hand operation
No
With LED indication
No
Interface 1-10 V
No
Number of inputs for light sensor
0
Max. switching current (resistive load)
0 A
Number of outputs
4
Max. control current
0 mA
Degree of protection (IP)
IP40

00. CE Marking - EU

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352694187
1 NR
6x4.5x5.4 [cm]
34.8 [g]
Barcode Qty 10 NR
8007352694194
10 NR
23.5x12.5x6.5 [cm]
433.6 [g]
Barcode Qty 90 NR
8007352694200
90 NR
37.5x30x21 [cm]
4,280 [g]
