6-button Home automation syst.control 3M - 30485

Pdf
Vimar - 30485 - 6-button Home automation syst.control 3M
Vimar - 30485 - 6-button Home automation syst.control 3M

30485
Smart systems&products / By-me Plus / LINEA / Devices

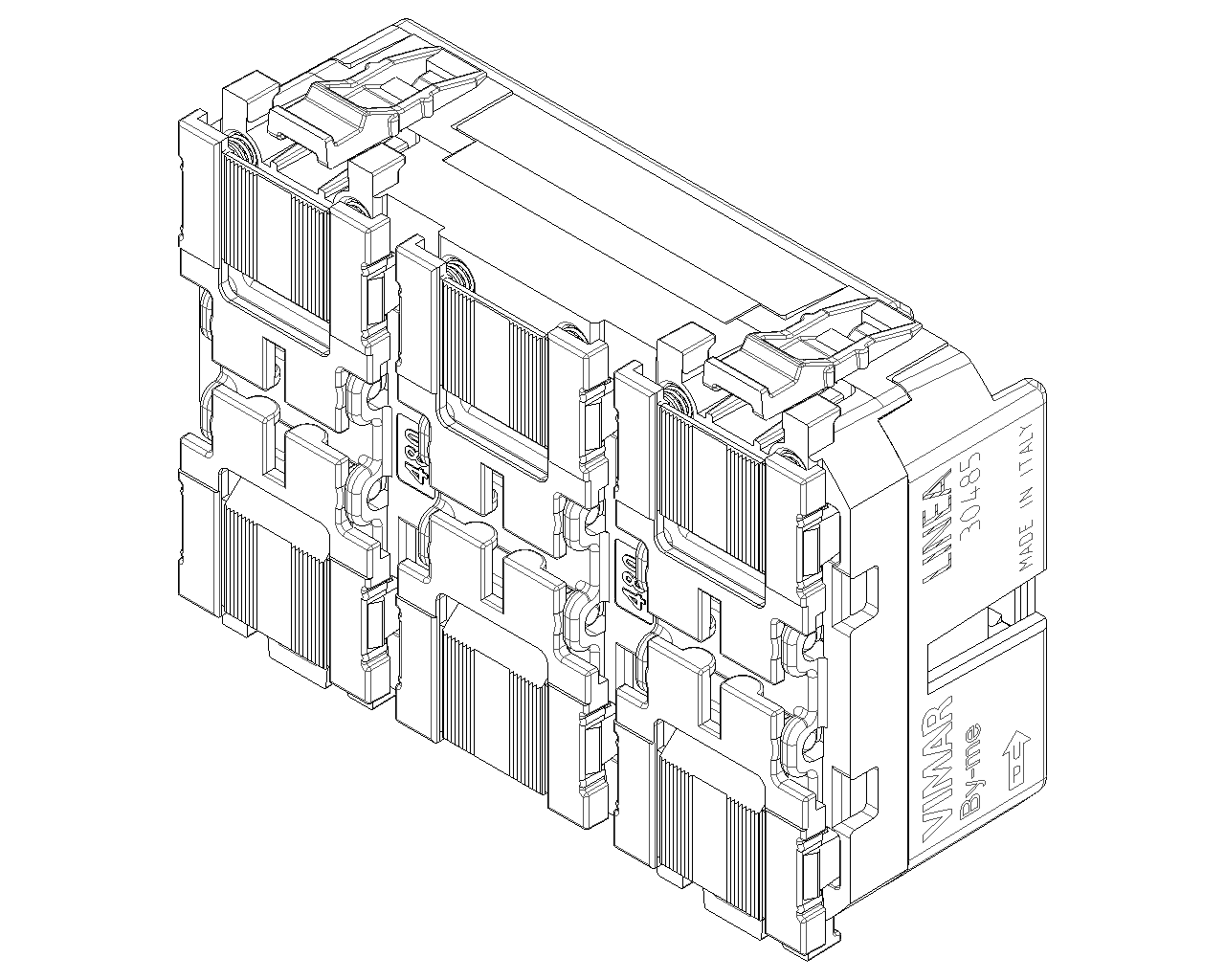

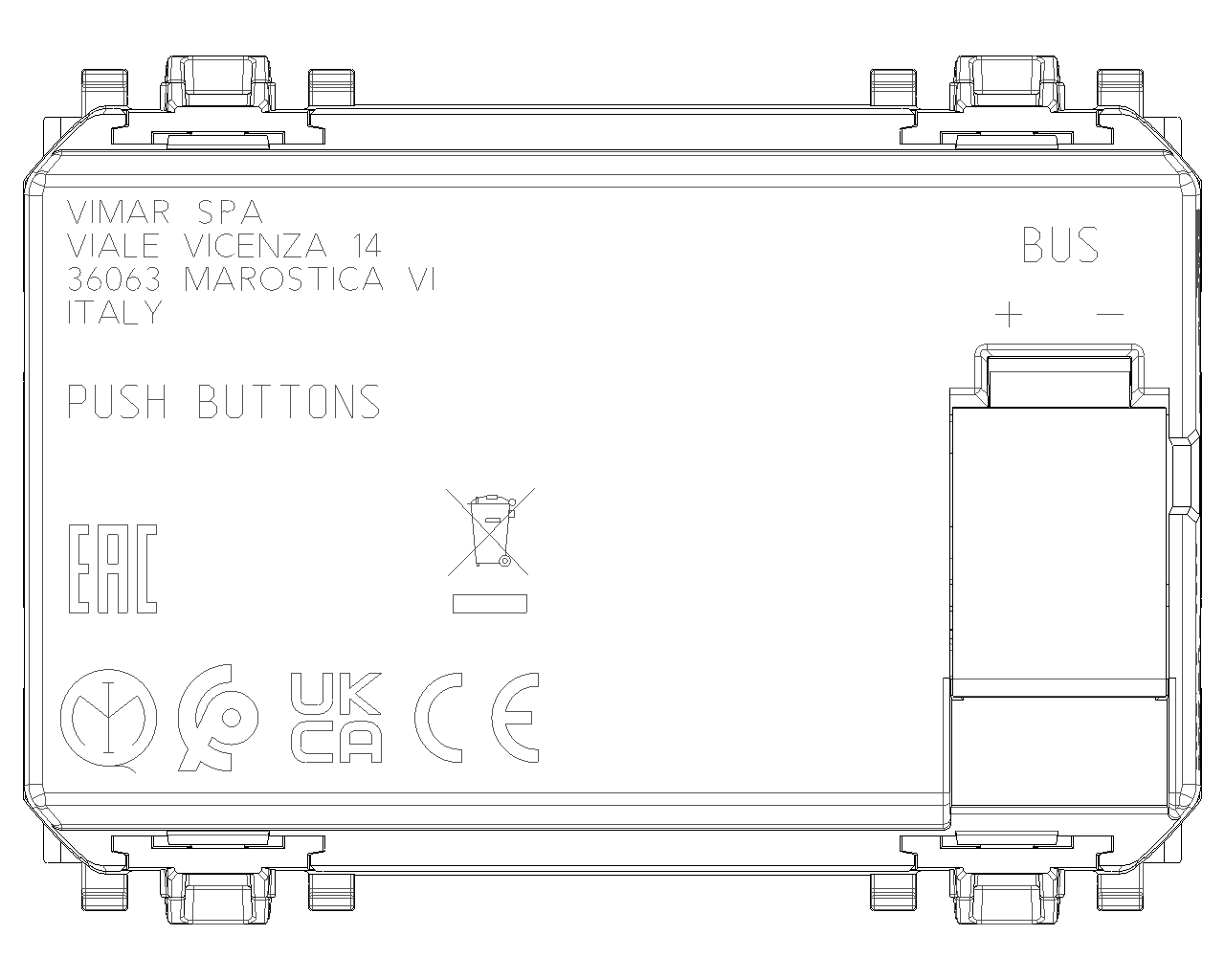

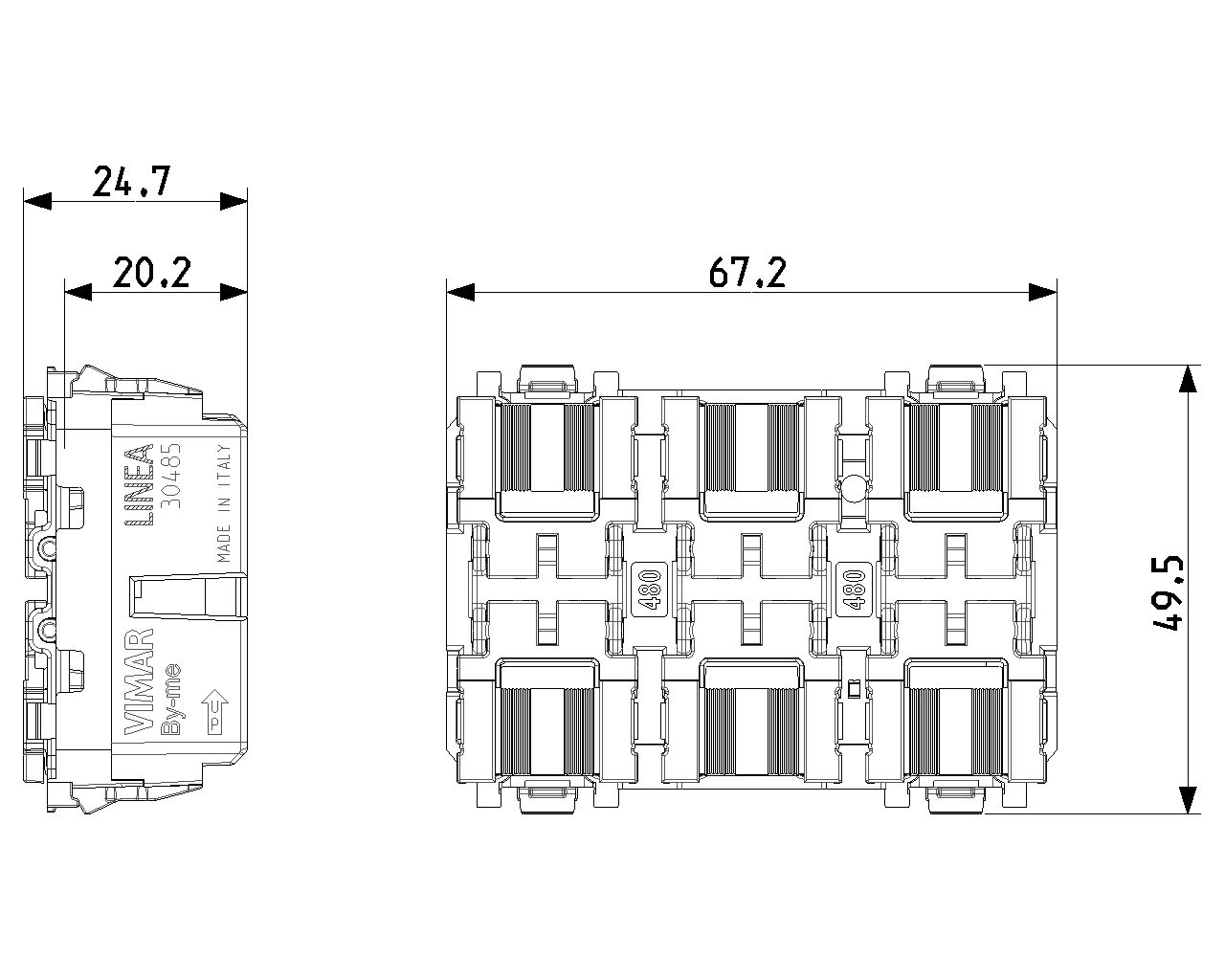

6-button Home automation syst.control 3M
Home automation control device with six push buttons, RGB LED visible in darkness with brightness control, to be completed with 1- or 2 module interchangeable half-button caps - 3 modules

Product Status
3 - Active

You may also be interested in

31480.G
31480.G - 2 half buttons 1M w/o symbol cust.black
31480.B
31480.B - 2 half buttons 1M w/o symbol cust.white
31480.C
31480.C - 2 half butt. 1M w/o symbol cust. canvas
31480.2G
31480.2G - 2 half buttons 2M w/o symbol cust.black
31480.2B
31480.2B - 2 half buttons 2M w/o symbol cust.white
31480.2C
31480.2C - 2 half buttons 2M w/o symbol cust.canvas
Class group
Installation bus systems
Class
Multi operating device for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequent)
No
Bus system radio frequent
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequent bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
3
Number of actuation points
6
With display
No
Status-LED
Yes
IR sensor
No
Manual set point setting
No
Presence button
No
With temperature controller
No
With integrated DCF77 receiver
No
With time switch clock
No
With anti-theft/dismantling protection
No
Central functional unit for senders/actuators
Yes
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Other
RAL-number (similar)
7024
Transparent
No
Degree of protection (IP)
IP40
With bus connection
Yes

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

37. Marking - Morocco

46. UK PSTI compliance

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352679696
1 NR
5.7x5.3x7.7 [cm]
48.68 [g]
Barcode Qty 70 NR
8007352679719
70 NR
39.5x30x17 [cm]
3,800 [g]
