1P NO 10A name-plate button - 30050

Pdf
Vimar - 30050 - 1P NO 10A name-plate button
Vimar - 30050 - 1P NO 10A name-plate button

30050
Wiring devices / Traditional wiring devices / LINEA / Devices

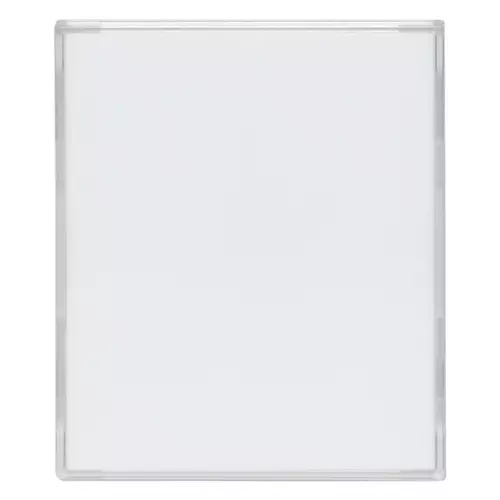

1P NO 10A name-plate button
1P NO 10 A 250 V~ push button with luminous name plate, for LED signalling unit 00935... and 00936... - 2 modules. Supplied without signalling unit.

Product Status
3 - Active

Drawings

view encumbered art. 30050
PNG DXF

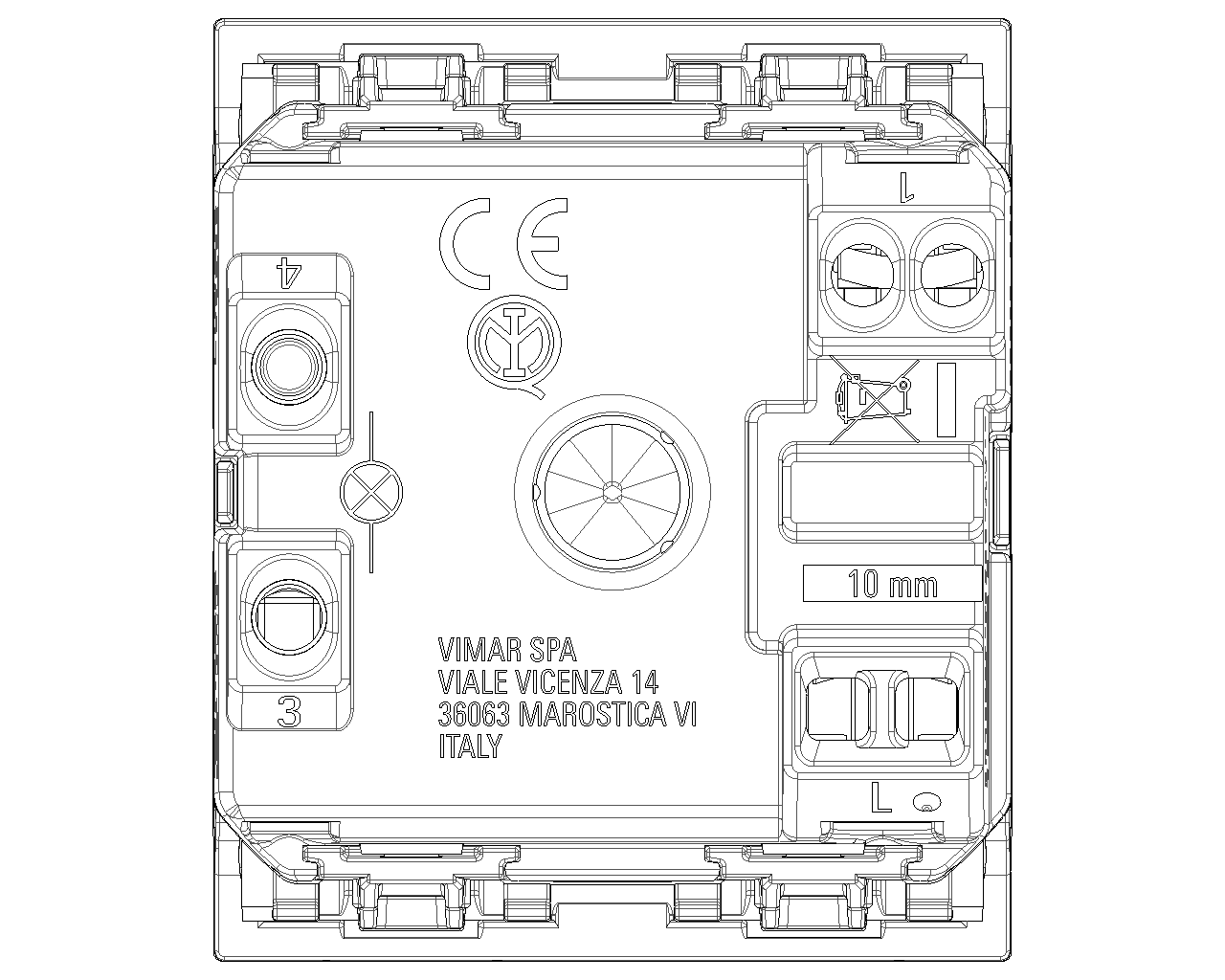

rear view art. 30050
PNG DXF

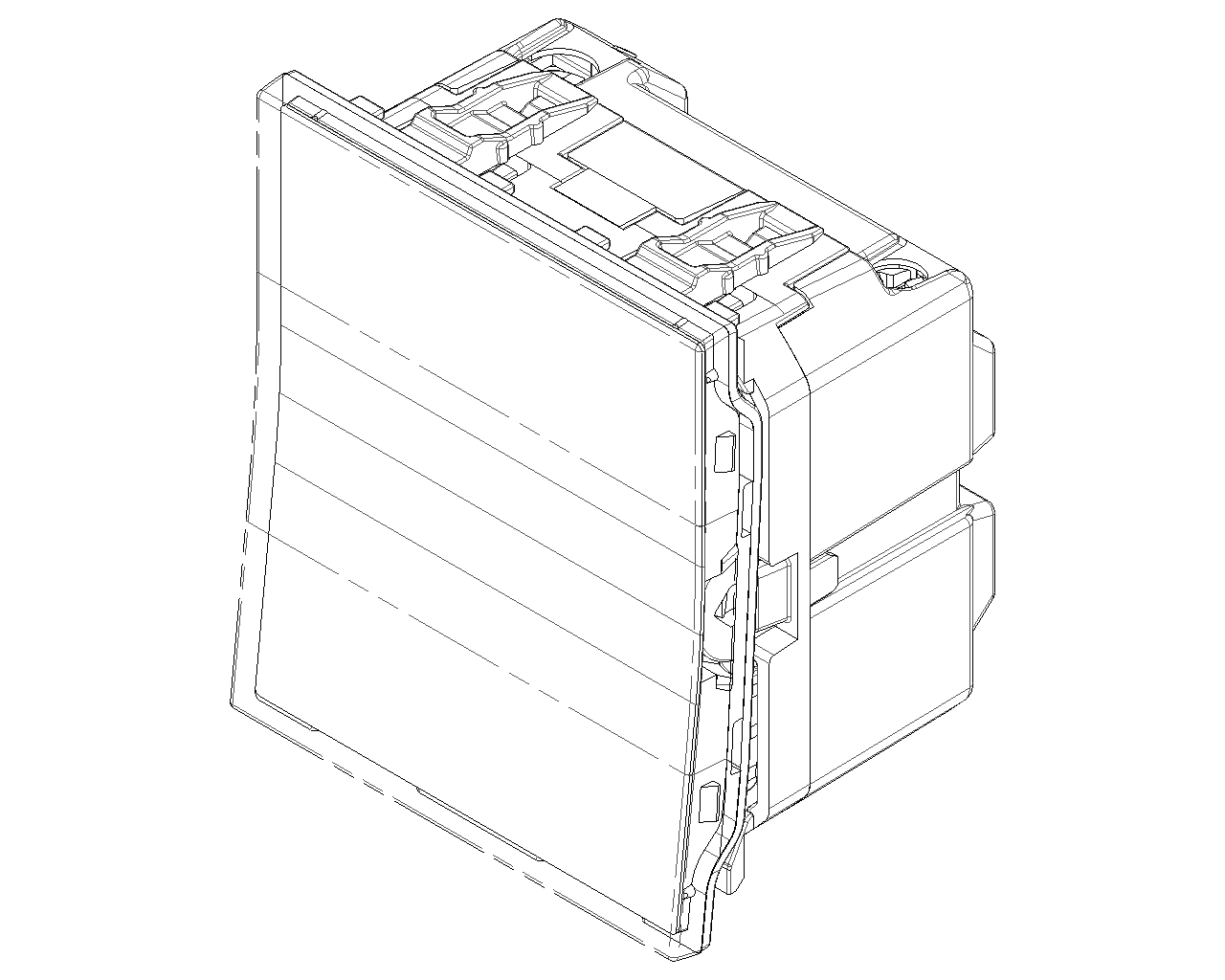

3D view art. 30050
PNG DXF
Class group
Communication technique
Class
Doorbell
Shape
Rectangular
With name plate
Yes
With lighting
Yes
Material
Plastic
Mounting method
Flush-mounted
Colour
White
Wireless
No
Built-in depth
26,50 mm
Length
3.490,00 mm
Width
4.480,00 mm
Height
52,80 mm
Diameter
0 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352676039
1 NR
5.2x4.3x5.6 [cm]
44 [g]
Barcode Qty 20 NR
8007352676046
20 NR
23x11.2x12.8 [cm]
973 [g]
Barcode Qty 120 NR
8007352676053
120 NR
35x25x27.5 [cm]
6,184 [g]
