Plate 3M metal matt white - 22653.01

Pdf
Vimar - 22653.01 - Plate 3M metal matt white
Vimar - 22653.01 - Plate 3M metal matt white

22653.01
Wiring devices / Traditional wiring devices / EIKON / Cover plates

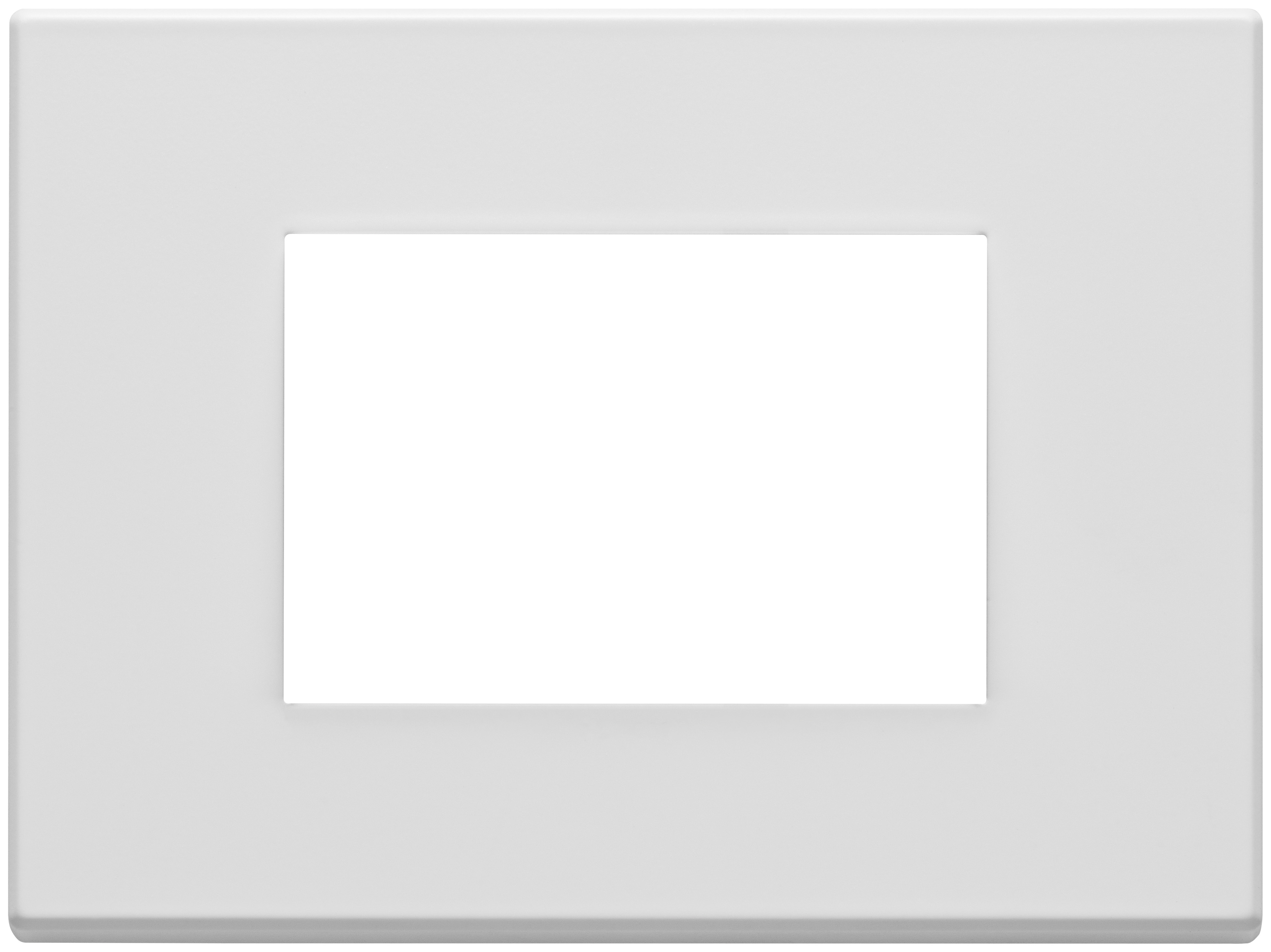

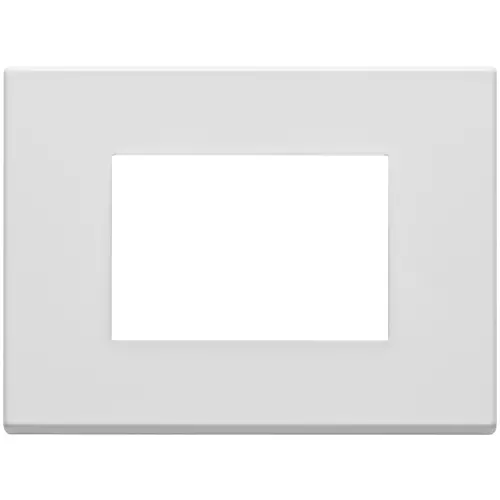

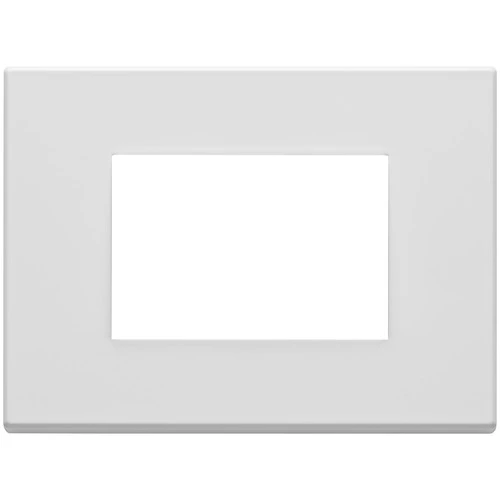

Plate 3M metal matt white
3-module cover plate, metal Total Look, matt white

Product Status
3 - Active

You may also be interested in

21613
21613 - Frame 3M +screws

Drawings

view encumbered art. 22653.01
PNG DXF
rear view art. 22653.01
PNG DXF
3D view art. 22653.01
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Surface protection
Lacquered
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
122,00 mm
Height
90,00 mm
Depth
10,15 mm
Built-in width
122,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

50. Product Environm. Profile

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352608658
1 NR
12.7x9.3x1.6 [cm]
184.3 [g]
Barcode Qty 5 NR
8007352611078
5 NR
13.6x9.7x10 [cm]
971.7 [g]
