Plate 6M (2+2+2) 71mm glass opal brown - 22644.77

Pdf
Vimar - 22644.77 - Plate 6M (2+2+2) 71mm glass opal brown
Vimar - 22644.77 - Plate 6M (2+2+2) 71mm glass opal brown

22644.77
Wiring devices / Traditional wiring devices / EIKON / Cover plates

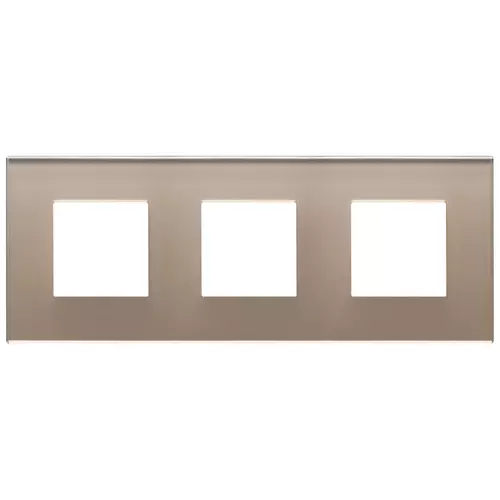

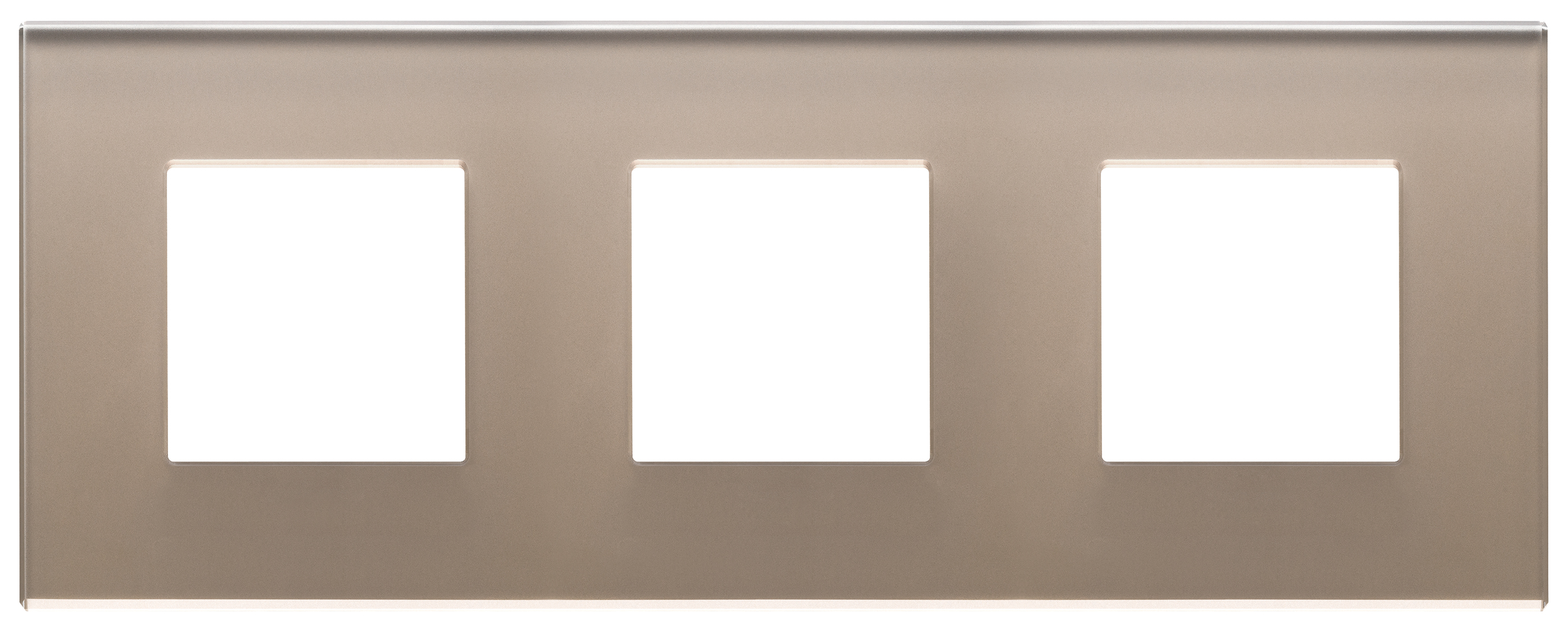

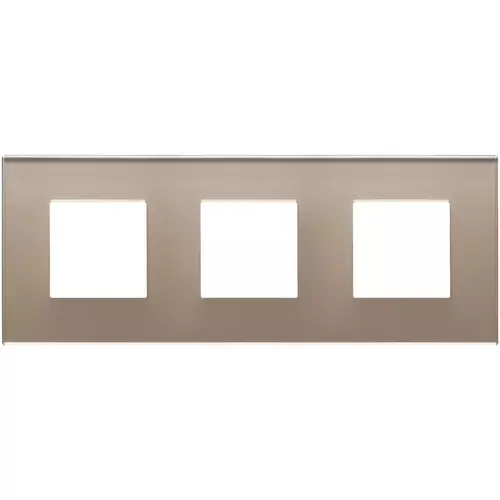

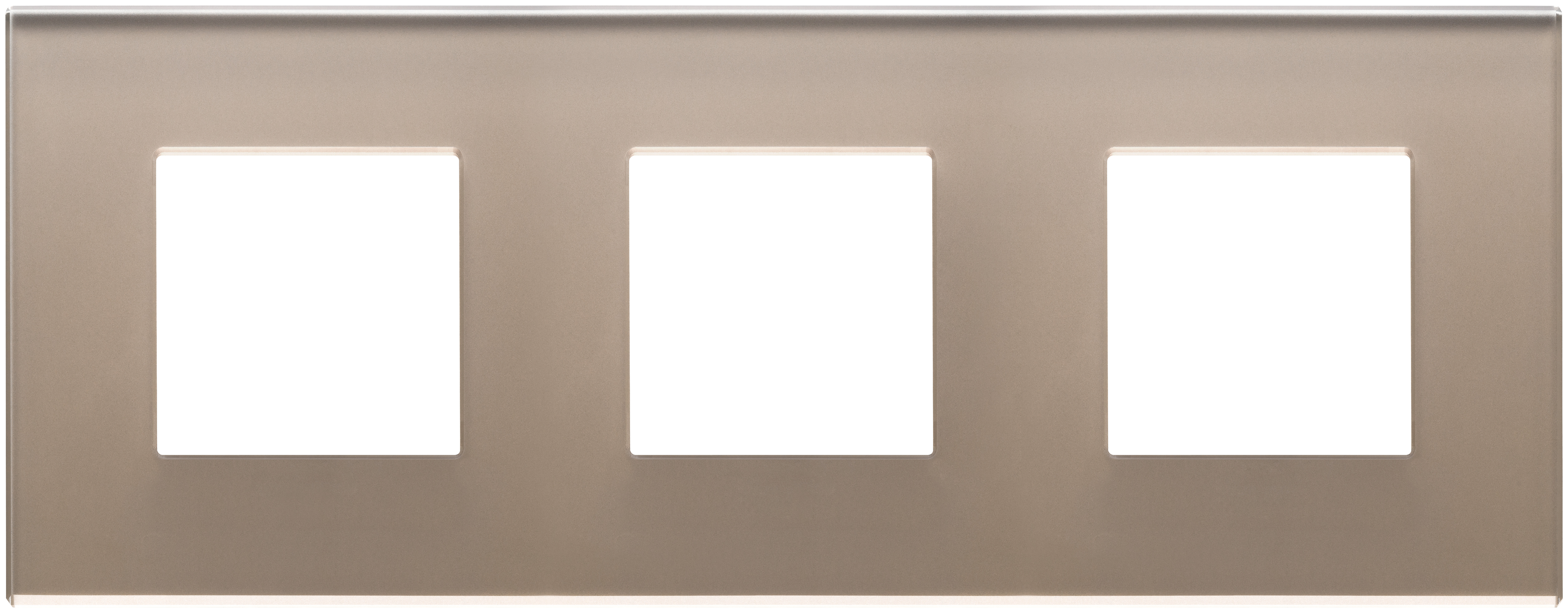

Plate 6M (2+2+2) 71mm glass opal brown

Product Status
3 - Active

Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Other
Material quality
Other
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
232,00 mm
Height
90,00 mm
Depth
11,60 mm
Built-in width
232,00 mm

00. CE Marking - EU

01. IMQ - Italy

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352669383
1 NR
27.1x11.4x3.2 [cm]
153.6 [g]
Barcode Qty 25 NR
8007352669390
25 NR
38x34x24 [cm]
3,840 [g]
