Plate 6M(2+2+2)x71mm met.brushed black - 22644.13

Pdf
Vimar - 22644.13 - Plate 6M(2+2+2)x71mm met.brushed black
Vimar - 22644.13 - Plate 6M(2+2+2)x71mm met.brushed black

22644.13
Wiring devices / Traditional wiring devices / EIKON / Cover plates

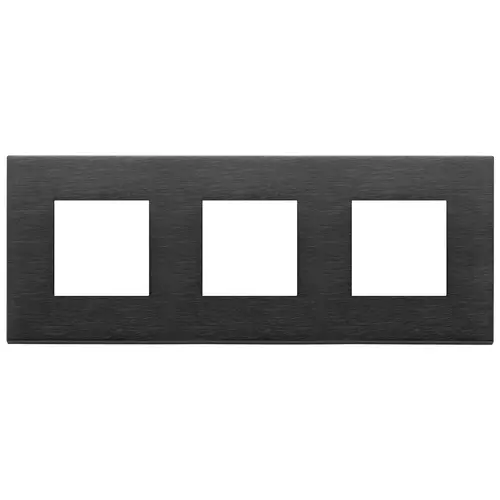

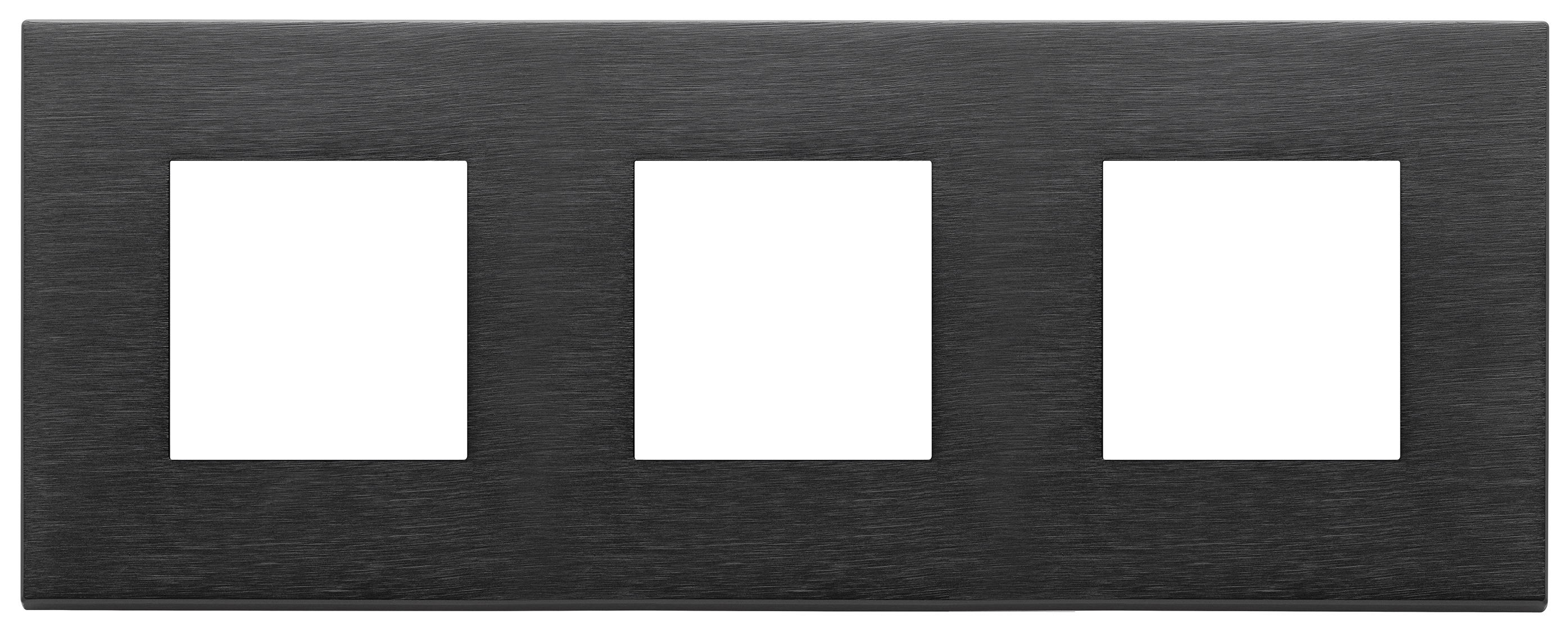

Plate 6M(2+2+2)x71mm met.brushed black

Product Status
3 - Active

Drawings

view encumbered art. 22644.13
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
6
Mounting direction
Horizontal and vertical
Number of units horizontal
6
Number of units vertical
1
Number of modules horizontal (module system)
6
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9017
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
232,00 mm
Height
90,00 mm
Depth
10,20 mm
Built-in width
232,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352664906
1 NR
24x9.7x1.7 [cm]
279 [g]
Barcode Qty 5 NR
8007352664913
5 NR
24.8x10.3x10.7 [cm]
1,467 [g]
