Plate 4M (2+2)x71mm metal dark bronze - 22643.12

Pdf
Vimar - 22643.12 - Plate 4M (2+2)x71mm metal dark bronze
Vimar - 22643.12 - Plate 4M (2+2)x71mm metal dark bronze

22643.12
Wiring devices / Traditional wiring devices / EIKON / Cover plates

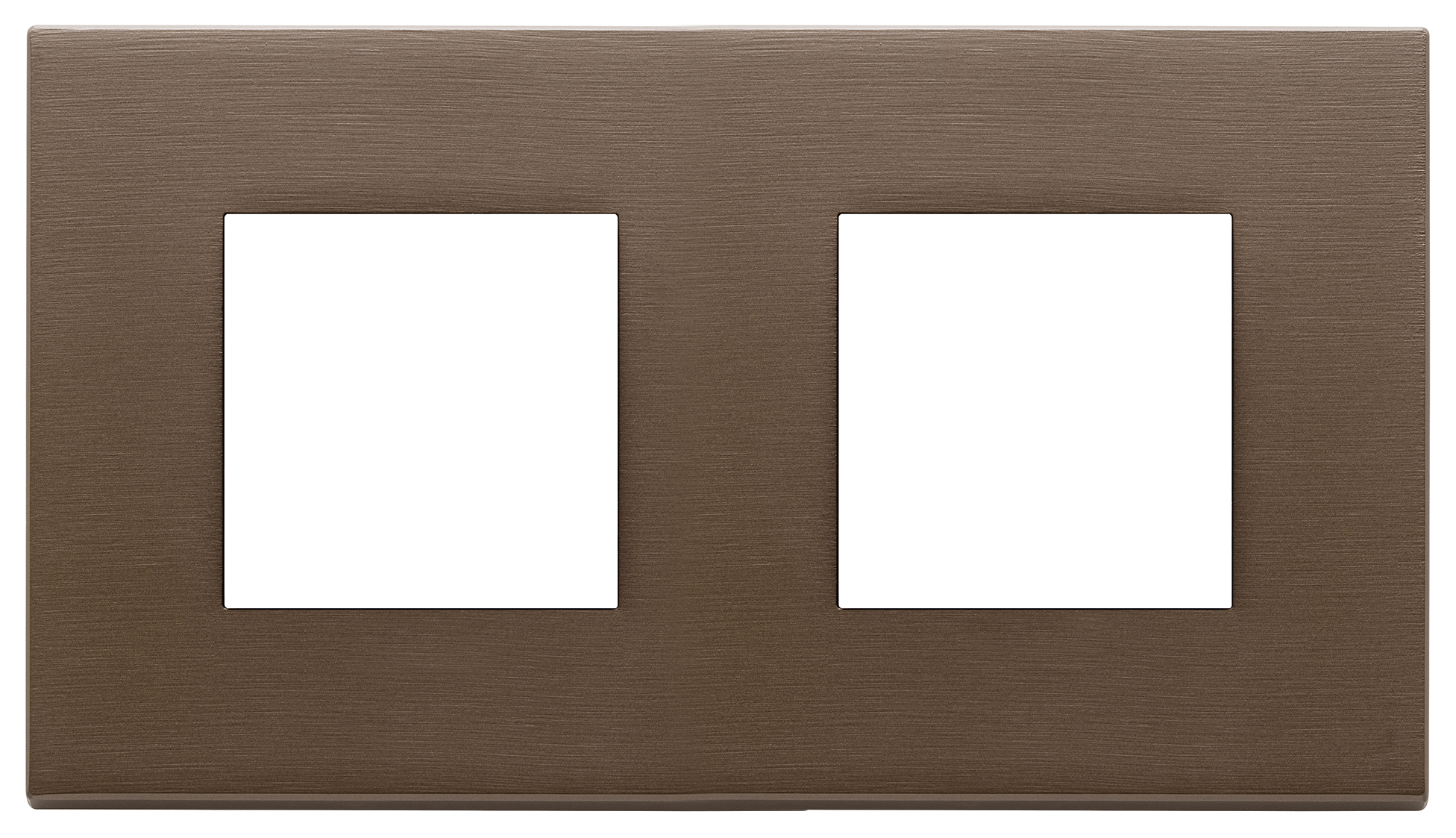

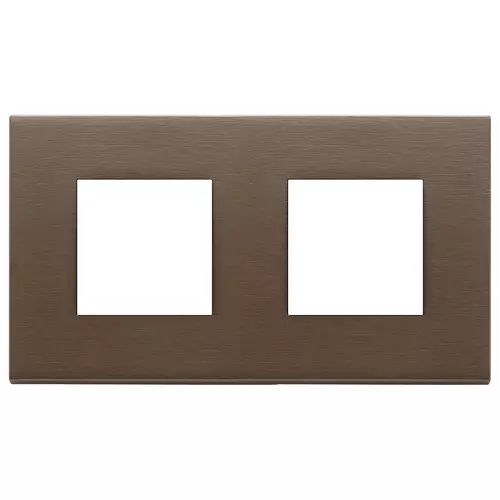

Plate 4M (2+2)x71mm metal dark bronze

Product Status
3 - Active

Drawings

view encumbered art. 22643.12
PNG DXF
3D view art. 22643.12
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Bronze
RAL-number (similar)
7013
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
161,00 mm
Height
90,00 mm
Depth
10,20 mm
Built-in width
161,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352665071
1 NR
16.8x9.7x1.7 [cm]
198.8 [g]
Barcode Qty 5 NR
8007352665088
5 NR
17.7x10.3x10.7 [cm]
1,060.2 [g]
