Plate 2M metal satin gold - 22642.88

Pdf
Vimar - 22642.88 - Plate 2M metal satin gold
Vimar - 22642.88 - Plate 2M metal satin gold

22642.88
Wiring devices / Traditional wiring devices / EIKON / Cover plates

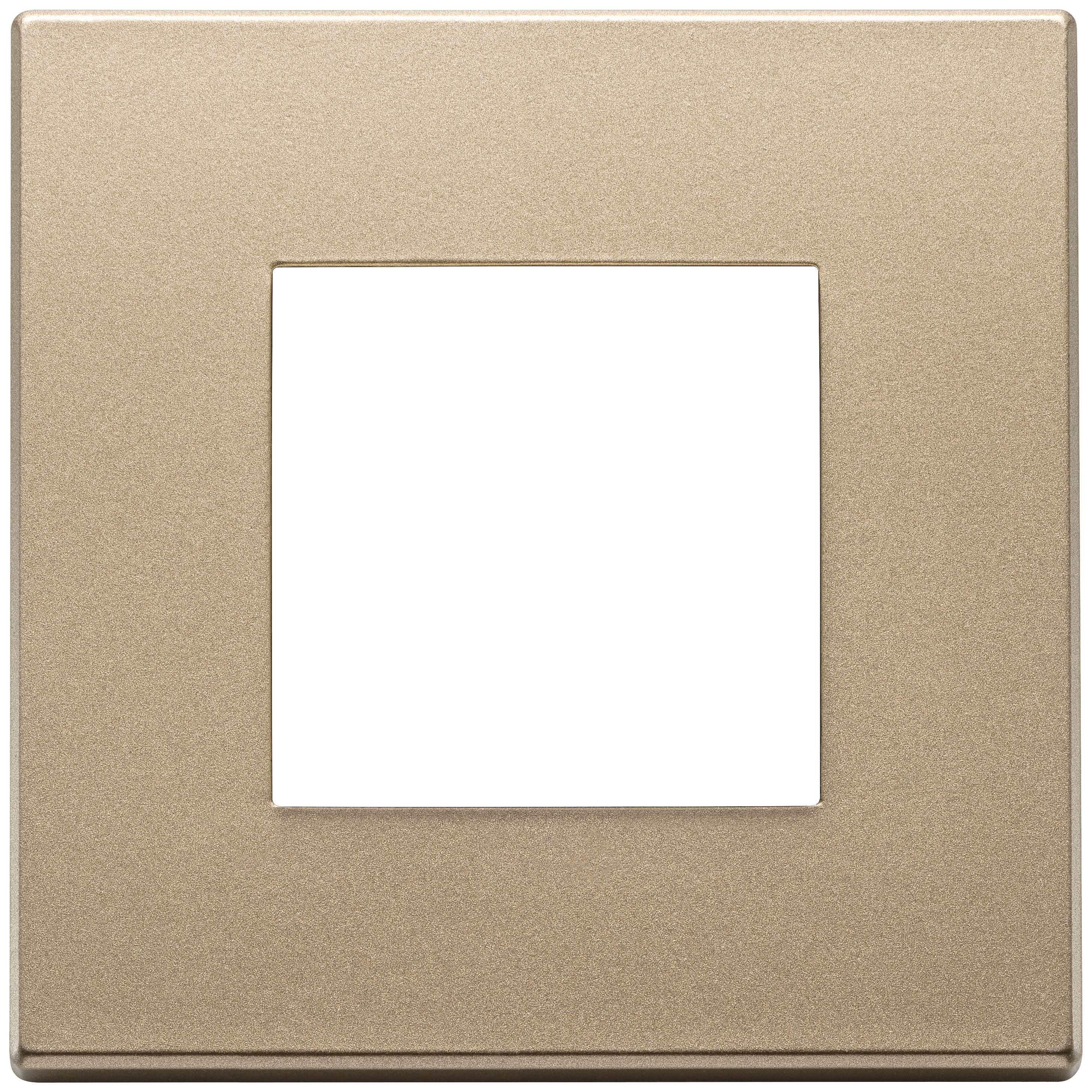

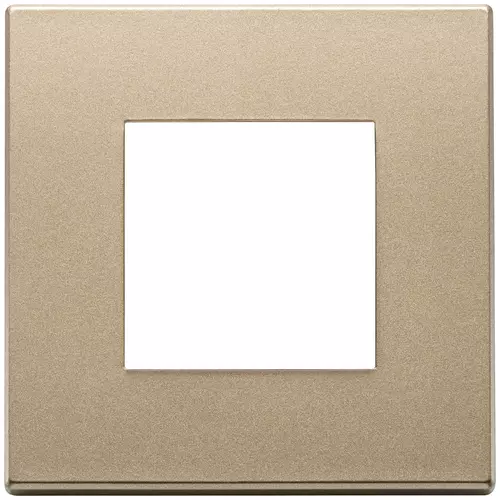

Plate 2M metal satin gold
2-module cover plate, polished metal, satin-finish gold

Product Status
3 - Active

Drawings

view encumbered art. 22642.88
PNG DXF
rear view art. 22642.88
PNG DXF
3D view art. 22642.88
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Surface protection
Lacquered
Surface finishing
Matt
Colour
Gold
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Type of fastening
Clamp mounting
Width
90,00 mm
Height
90,00 mm
Depth
7,15 mm
Built-in width
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352655416
1 NR
9.6x9.6x1.7 [cm]
141.4 [g]
Barcode Qty 5 NR
8007352655423
5 NR
10.2x10x10.4 [cm]
746.4 [g]
