Plate 2M metal antique brushed bronze - 22642.87

Pdf
Vimar - 22642.87 - Plate 2M metal antique brushed bronze
Vimar - 22642.87 - Plate 2M metal antique brushed bronze

22642.87
Wiring devices / Traditional wiring devices / EIKON / Cover plates

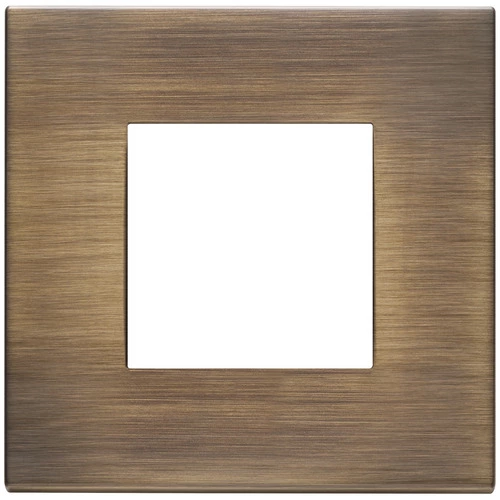

Plate 2M metal antique brushed bronze
2-module cover plate, exclusive metal, antique brushed bronze

Product Status
3 - Active

You may also be interested in

21602
21602 - Frame 2M +claws 71mm
21603
21603 - Frame 2M without screws 71mm

Drawings

view encumbered art. 22642.87
PNG DXF
rear view art. 22642.87
PNG DXF
3D view art. 22642.87
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Other
Surface protection
Metallic
Surface finishing
Matt
Colour
Bronze
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
90,00 mm
Height
90,00 mm
Depth
10,15 mm
Built-in width
90,00 mm
Built-in height
90,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352609648
1 NR
9.6x9.6x1.7 [cm]
140.6 [g]
Barcode Qty 5 NR
8007352611061
5 NR
10.2x10x10.4 [cm]
742.9 [g]
