Plate 3M crystal bronze mirror - 21653.75

Pdf
Vimar - 21653.75 - Plate 3M crystal bronze mirror

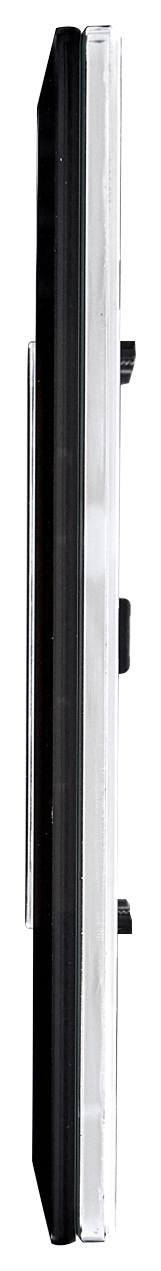

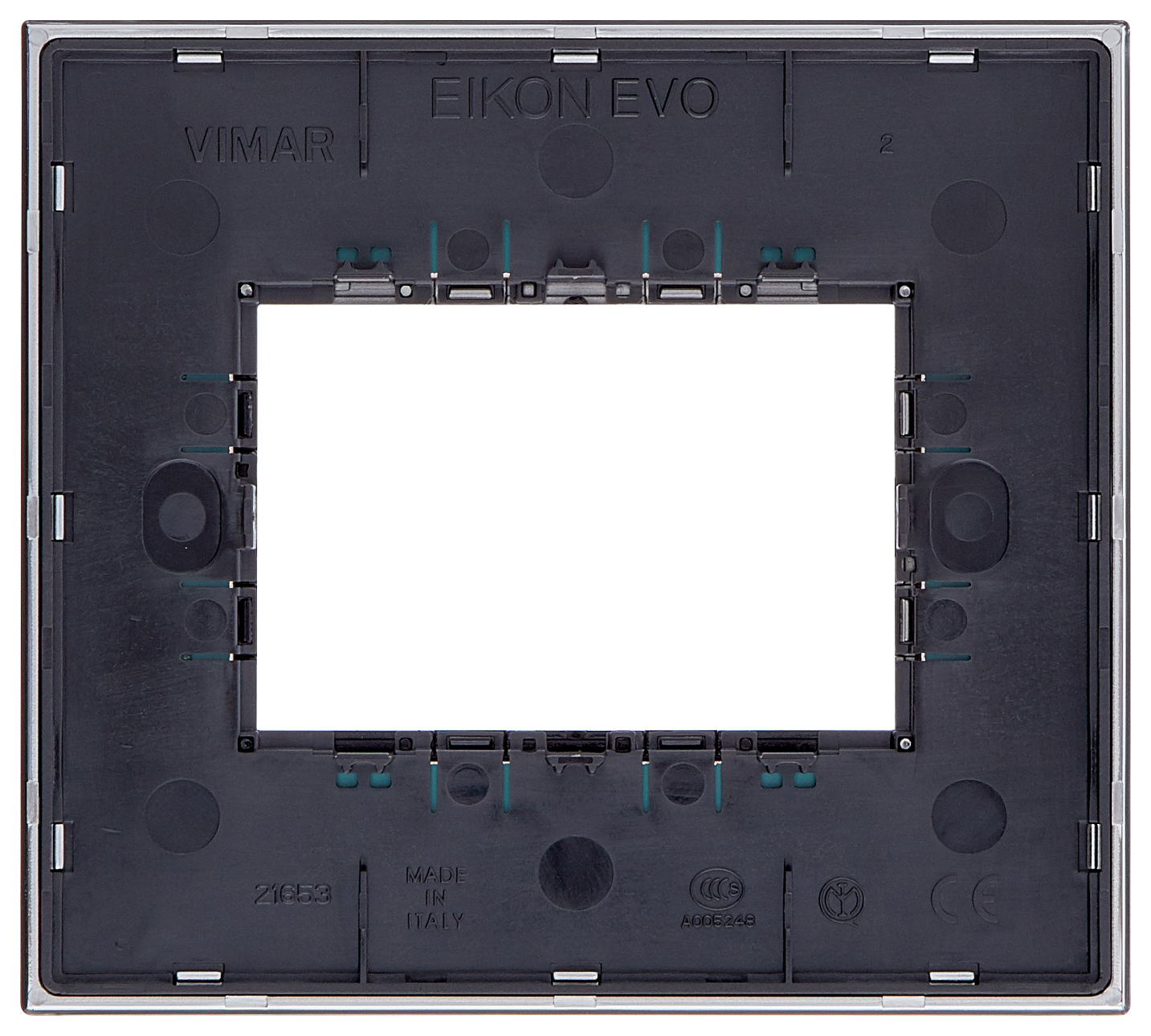

Foto gallery #1
Foto gallery #2
Vimar - 21653.75 - Plate 3M crystal bronze mirror

21653.75
Wiring devices / Traditional wiring devices / EIKON / Cover plates

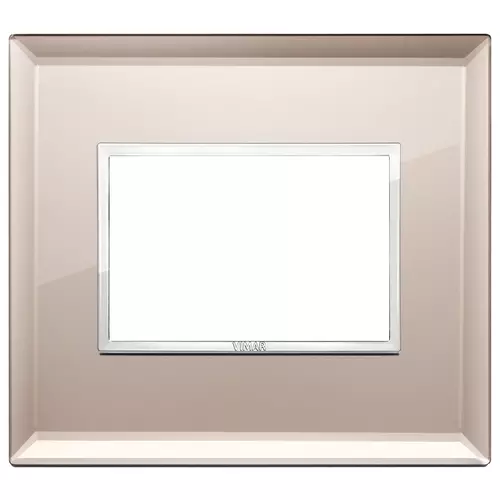

Plate 3M crystal bronze mirror
3-module cover plate, bevelled crystal, bronze mirror

Product Status
3 - Active

You may also be interested in

21613
21613 - Frame 3M +screws

Drawings

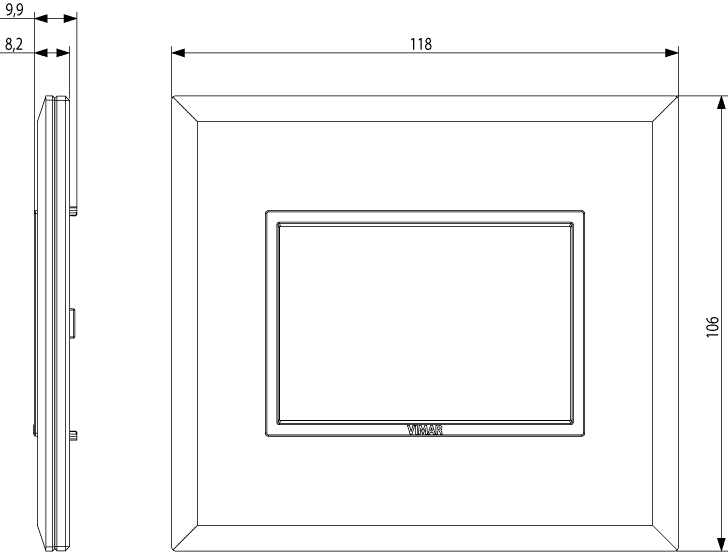

view encumbered art. 21653.75
PNG DXF

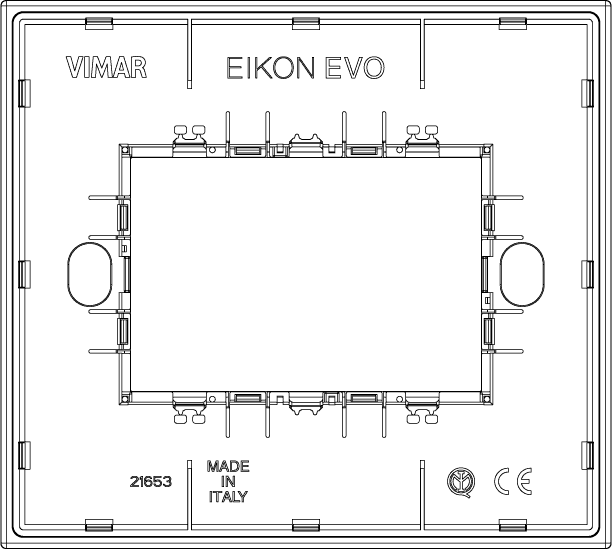

rear view art. 21653.75
PNG DXF

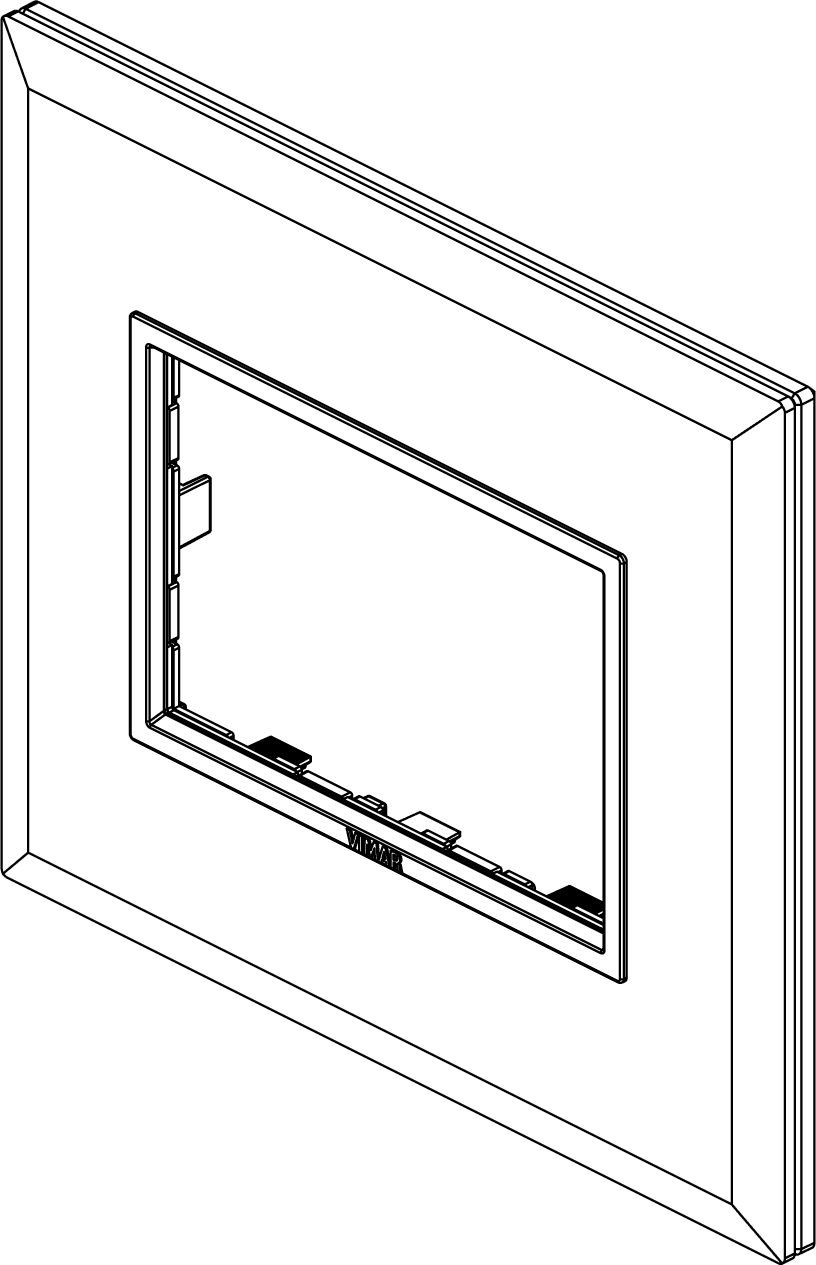

3D view art. 21653.75
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
3
Mounting direction
Horizontal and vertical
Number of units horizontal
3
Number of units vertical
1
Number of modules horizontal (module system)
3
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Glass
Material quality
Glass
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Colour
Bronze
RAL-number (similar)
1035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
118,00 mm
Height
106,00 mm
Depth
9,80 mm
Built-in width
118,00 mm
Built-in height
106,00 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352418851
1 NR
15.8x14.1x3.9 [cm]
164 [g]
