Plate 4M (2+2) 71mm Next grey - 21643.02

Pdf
Vimar - 21643.02 - Plate 4M (2+2) 71mm Next grey
Vimar - 21643.02 - Plate 4M (2+2) 71mm Next grey

21643.02
Wiring devices / Traditional wiring devices / EIKON / Cover plates

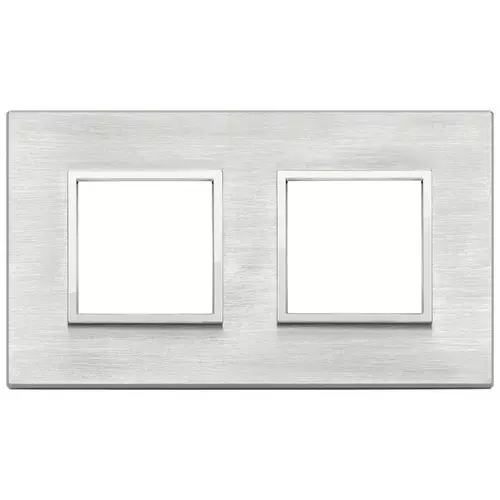

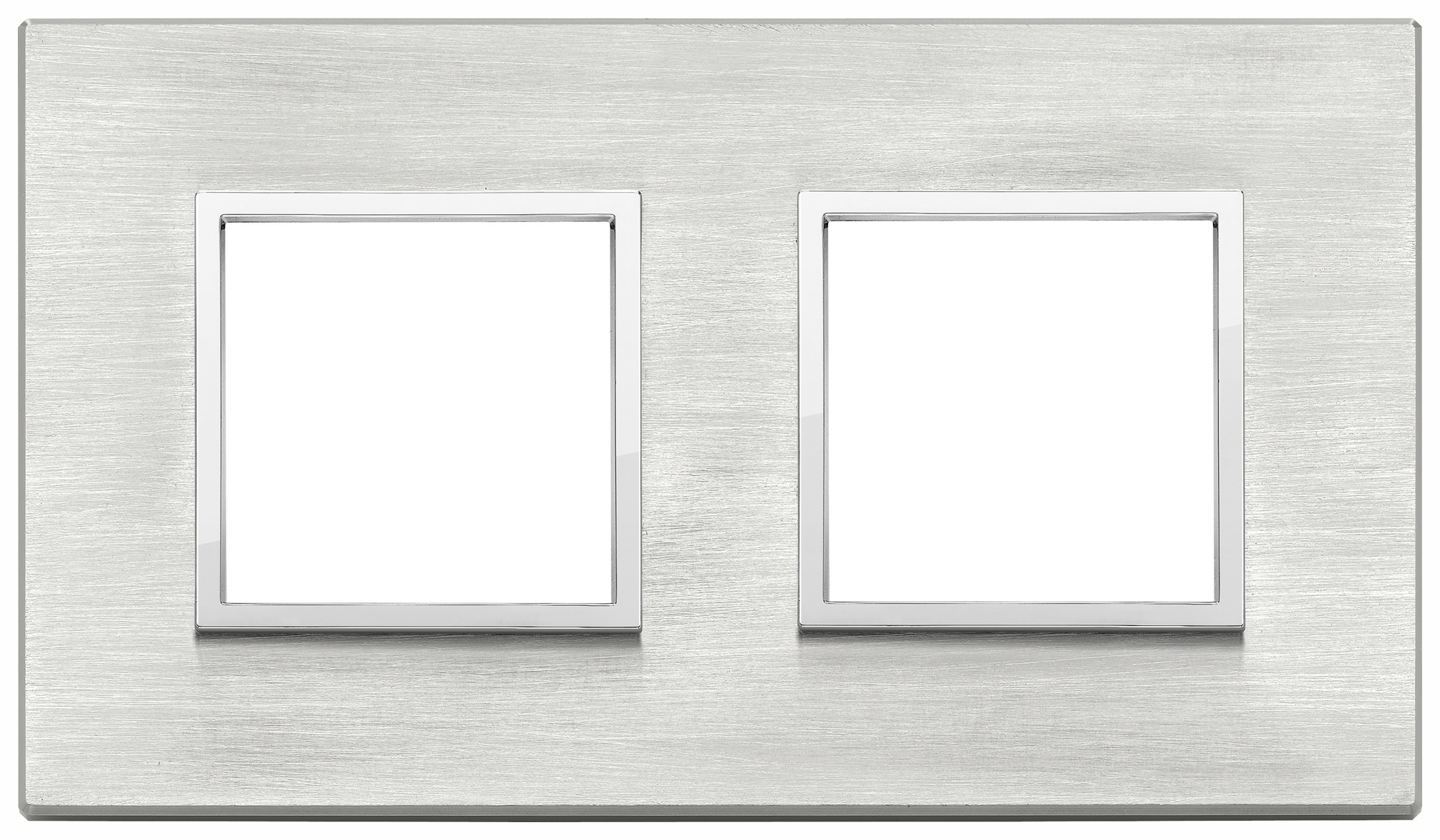

Plate 4M (2+2) 71mm Next grey
4-module cover plate (2+2, 71 mm distance between centres), Primari anodized aluminium, Next grey

Product Status
3 - Active

You may also be interested in

21603
21603 - Frame 2M without screws 71mm

Drawings

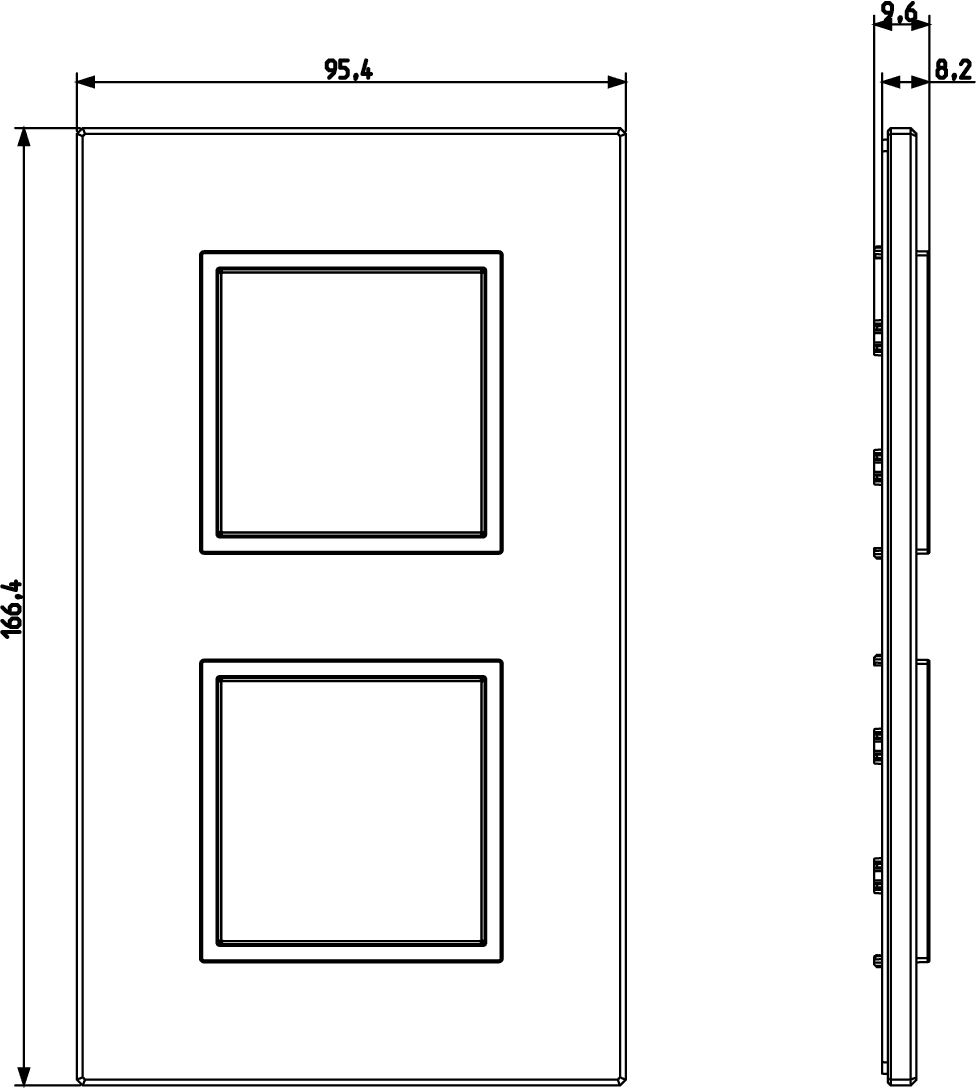

view encumbered art. 21643.02
PNG DXF
rear view art. 21643.02
PNG DXF

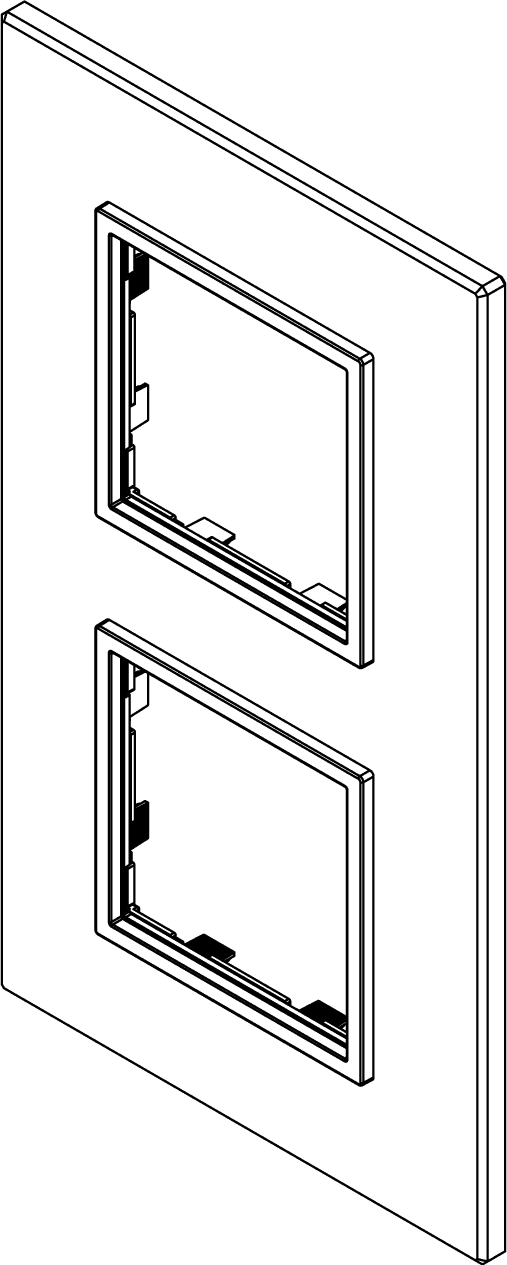

3D view art. 21643.02
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
4
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
1
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
95,40 mm
Height
166,40 mm
Depth
9,60 mm
Built-in width
95,40 mm
Built-in height
166,40 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352436367
1 NR
16.8x9.7x1.7 [cm]
116 [g]
Barcode Qty 5 NR
8007352436374
5 NR
17.7x10.3x10.7 [cm]
638.1 [g]
