Plate 2M aluminium lava grey - 21642.03

Pdf
Vimar - 21642.03 - Plate 2M aluminium lava grey
Vimar - 21642.03 - Plate 2M aluminium lava grey

21642.03
Wiring devices / Traditional wiring devices / EIKON / Cover plates

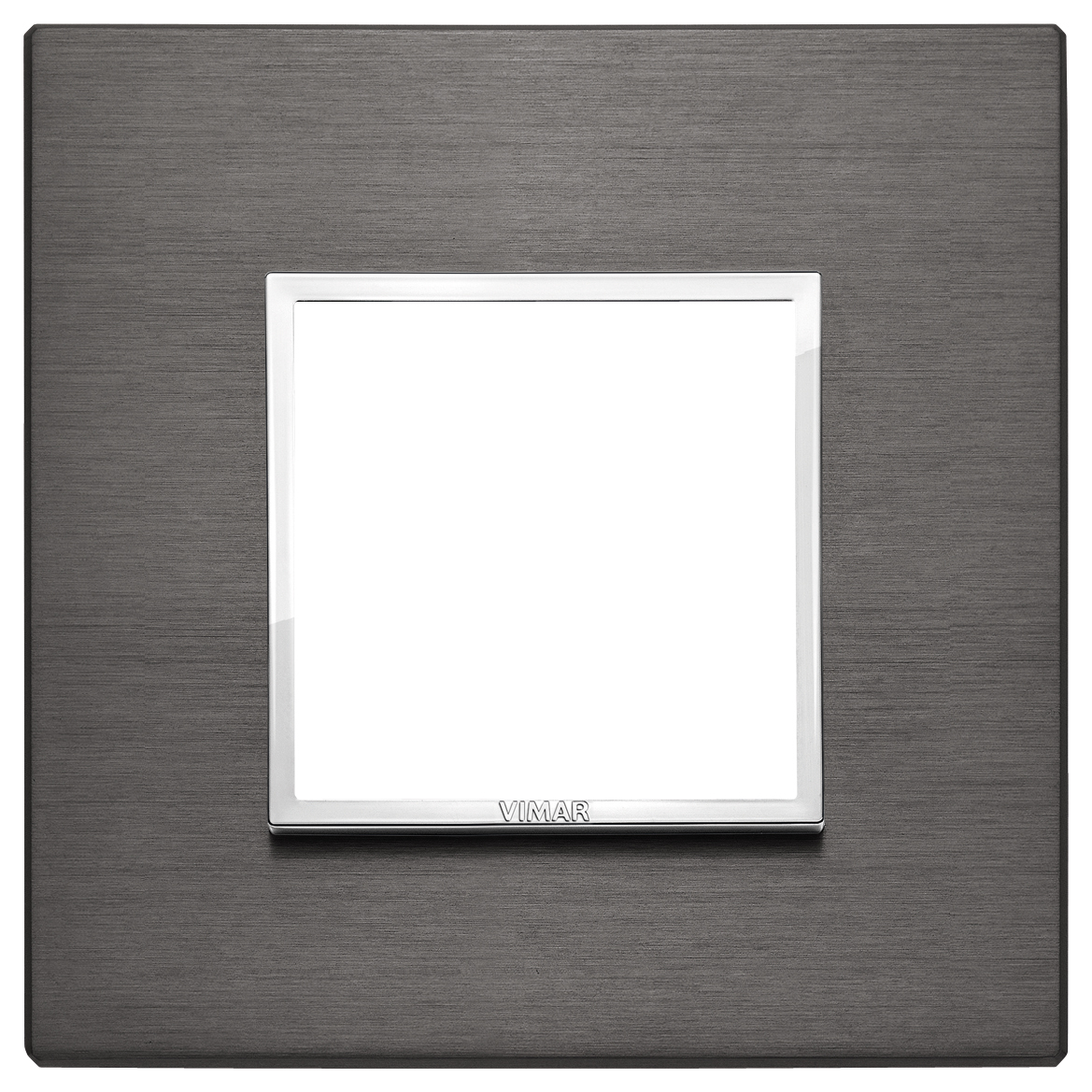

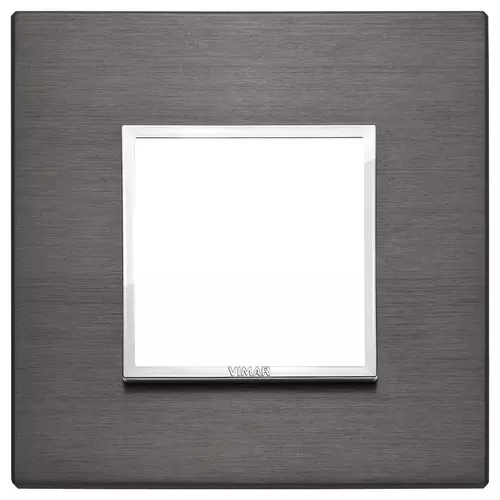

Plate 2M aluminium lava grey
2-module cover plate, Primari anodized aluminium, lava grey

Product Status
3 - Active

You may also be interested in

21602
21602 - Frame 2M +claws 71mm
21603
21603 - Frame 2M without screws 71mm

Drawings

view encumbered art. 21642.03
PNG DXF
rear view art. 21642.03
PNG DXF
3D view art. 21642.03
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
2
Mounting direction
Horizontal and vertical
Number of units horizontal
2
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
Yes
Material
Metal
Material quality
Aluminium
Halogen free
Yes
Surface protection
Anodised
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7043
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
94,70 mm
Height
94,70 mm
Depth
9,80 mm
Built-in width
94,70 mm
Built-in height
94,70 mm
Diameter bore hole (opening)
0 mm

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352418479
1 NR
10.85x11.6x1.85 [cm]
73.8 [g]
Barcode Qty 5 NR
8007352434165
5 NR
11.65x10.8x12.6 [cm]
420 [g]
