Frame 4M +screws - 21614

21614
Wiring devices / Traditional wiring devices / EIKON / Mounting frames

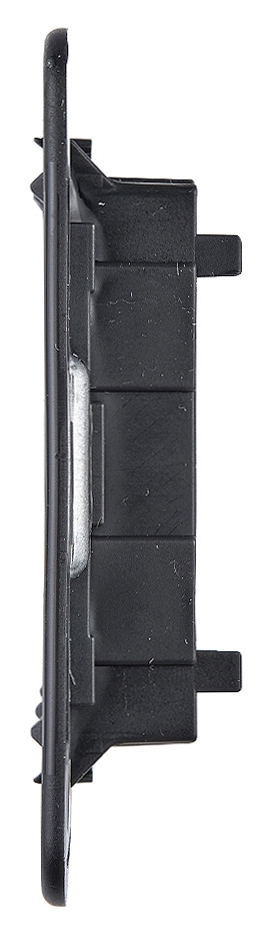

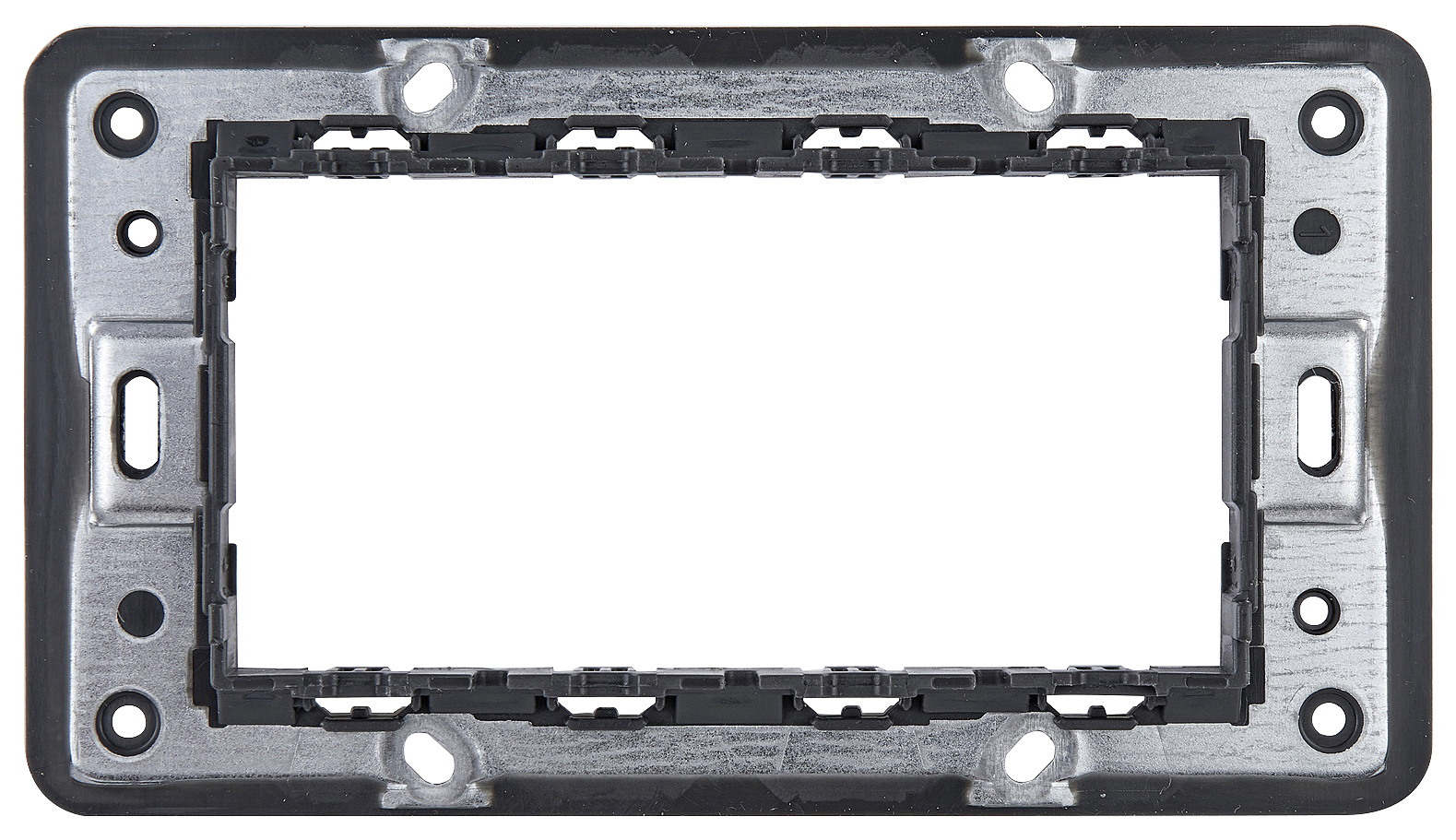

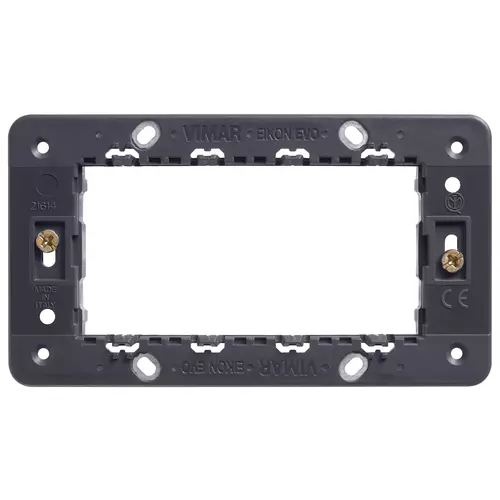

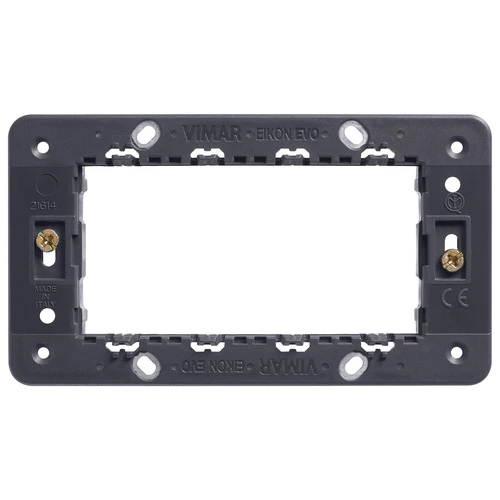

Frame 4M +screws
4-module mounting frame, with screws, for 4-module mounting boxes

Product Status
3 - Active

You may also be interested in

21614.C - Cover 4M Eikon mount-frame

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

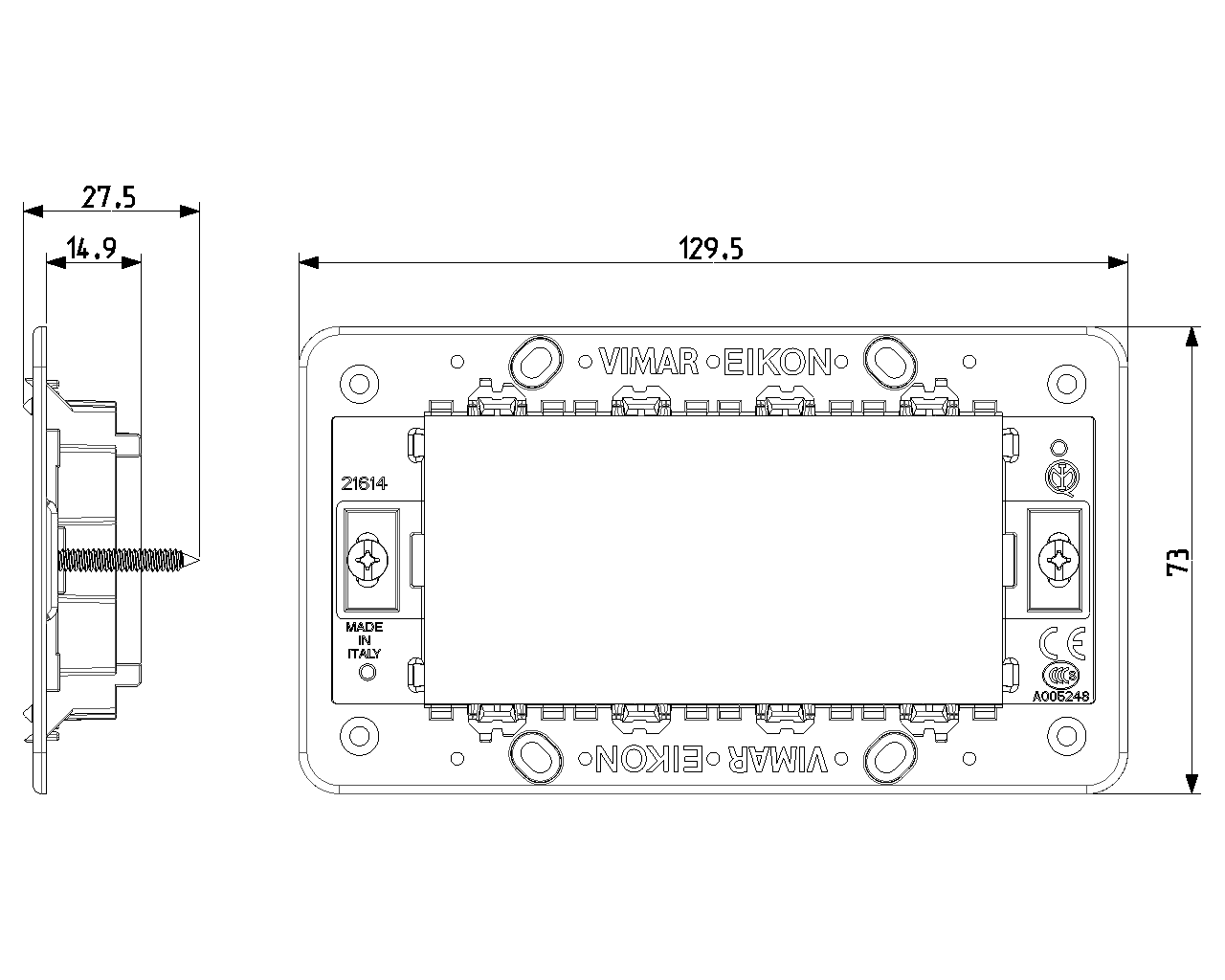

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
4

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

00. CE Marking - EU

00. CE Marking - EU

01. IMQ - Italy

01. IMQ - Italy

01. IMQ - Italy

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352420045

1 NR

13x7.3x1.9 [cm]

40.9 [g]

8007352420052

10 NR

13x7.3x19 [cm]

412.2 [g]

8007352420069

100 NR

39.5x29.5x14.5 [cm]

4,473 [g]

8007352483040

4,000 NR

80x120x86.5 [cm]

191,200 [g]
