Frame 5M BS - 20609

20609
Wiring devices / Traditional wiring devices / EIKON / Mounting frames

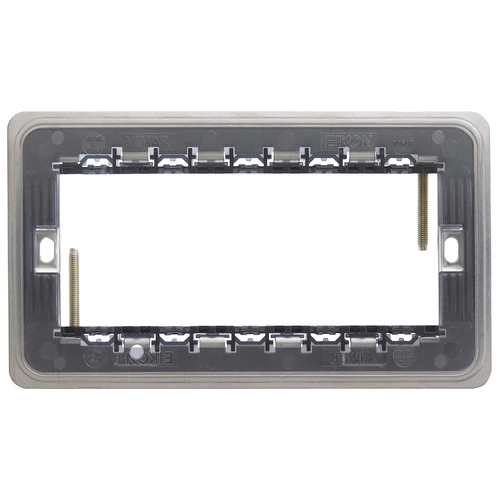

Frame 5M BS
5-module mounting frame, with screws, for British standard mounting boxes

Product Status
3 - Active

You may also be interested in

07937 - Screw for frame fixing - 35mm

07939 - Screw for frame fixing - 50 mm

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Holder for modular domestic switching devices

Model
Flush-mounted

Mounting method
Mounting with screw

Mounting method of the module inserts
Front side

Mounting direction
Horizontal and vertical

Number of modules horizontal (module system)
5

Number of modules vertical (module system)
1

With built-in installation box
No

With screws
Yes

Suitable for mounting in round junction box 60 mm
No

Flush-mounted installation
Yes

Suitable for subfloor installation duct box
No

Suitable for wall duct
No

Suitable for mounting on DIN-rail 35 mm
No

Material
Plastic

Material quality
Thermoplastic

00. CE Marking - EU

00. CE Marking - EU

00. CE Marking - EU

01. IMQ - Italy

08. ASTA - UK

29. QCERT - Colombia

96. Electrotechnical expert

Minimum order quantity: 10 NR

---

Barcode

8007352383531

1 NR

14.4x8.3x1.5 [cm]

66.5 [g]

8007352383548

10 NR

19x14.3x9.5 [cm]

732 [g]

8007352645004

50 NR

30.5x26x22 [cm]

4,000 [g]
