Vimar - 20466 - Badge switch 230V grey
Vimar - 20466 - Badge switch 230V grey

20466
Wiring devices / Traditional wiring devices / EIKON / Devices

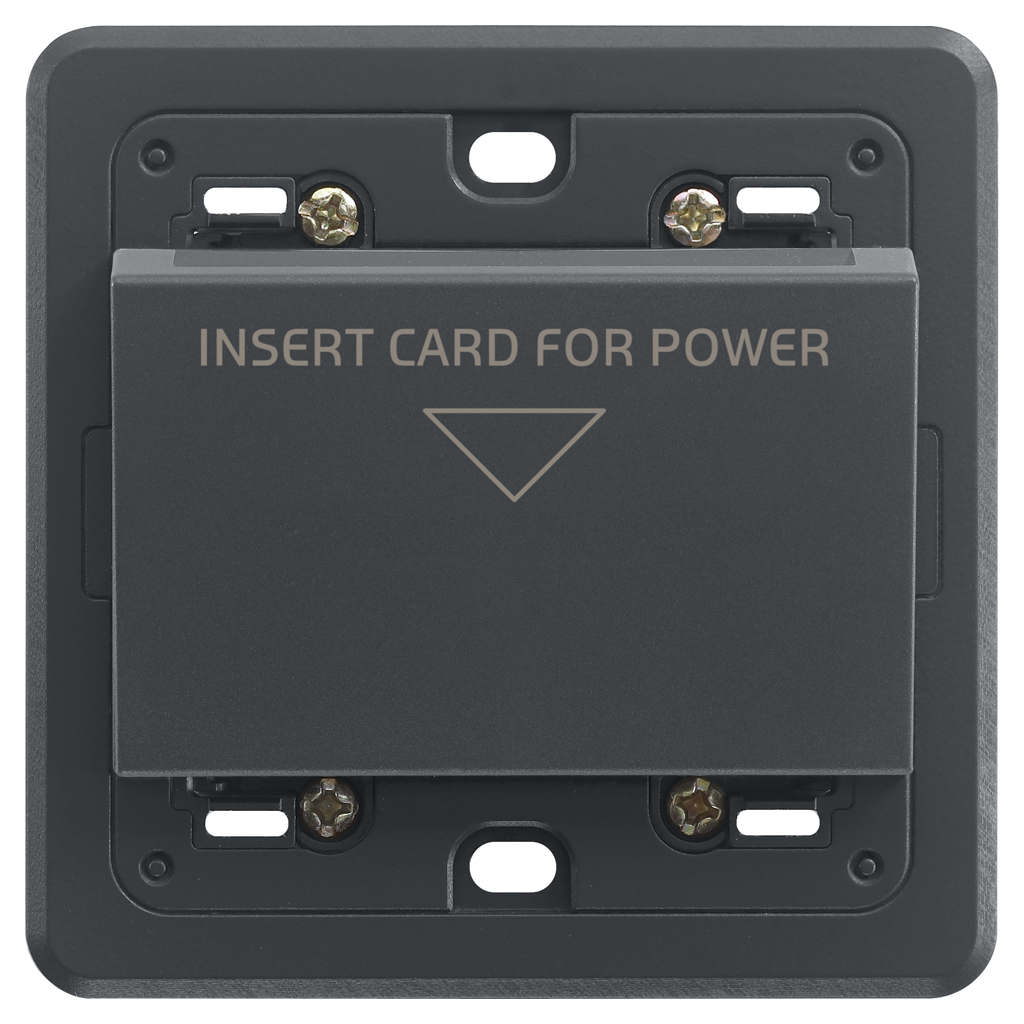

Badge switch 230V grey
Badge electronic switch with vertical pocket, 16 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, with built-in 3-module mounting frame for British standard installation, grey. Supplied without ISO card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

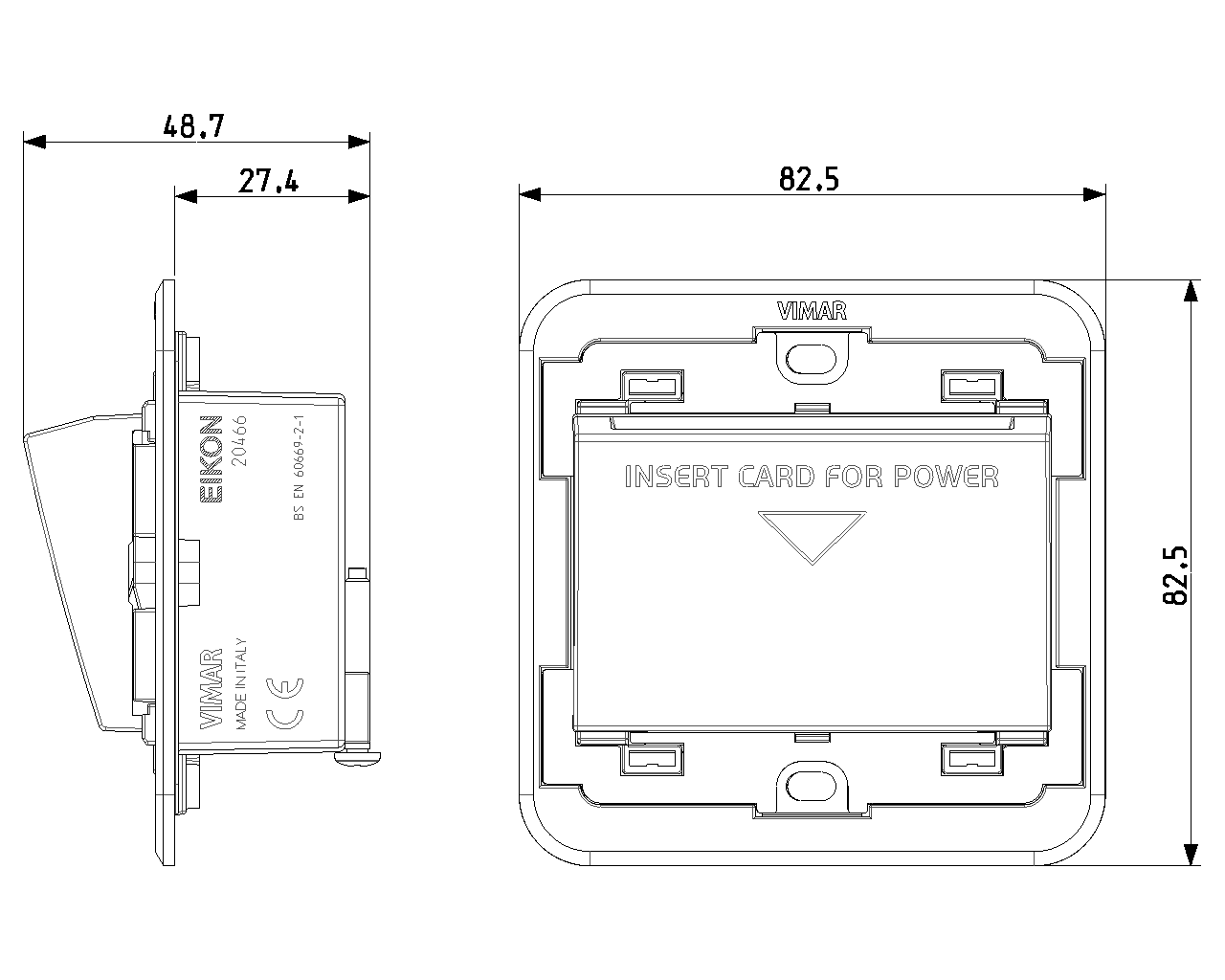

view encumbered art. 20466
PNG DXF
rear view art. 20466
PNG DXF
3D view art. 20466
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
230,00 - 230,01 V
Operating voltage AC 60 Hz
230,00 - 230,01 V
Operating temperature
5 - 45 °C
Degree of protection (IP)
IP20
Colour
Grey
Material
Plastic
Width
82,50 mm
Height
82,50 mm
Depth
48,70 mm

00. CE Marking - EU

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352403314
1 NR
11.7x10.8x7.1 [cm]
154.4 [g]
