Vertical badge switch 2M grey - 20463

Pdf
Vimar - 20463 - Vertical badge switch 2M grey
Vimar - 20463 - Vertical badge switch 2M grey

20463
Wiring devices / Traditional wiring devices / EIKON / Devices

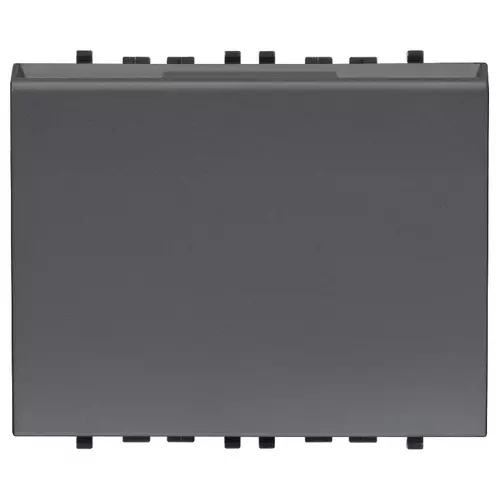

Vertical badge switch 2M grey
Upright electronic badge switch, 4 A 250 V~ NO (NON SELV) change-over relay output, power supply 120-230 V~ 50-60 Hz, slot lighting for location in the dark, trimmer for regulating switch-off time after removing the card, grey - 2 modules. Supplied without ISO card (badge)

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

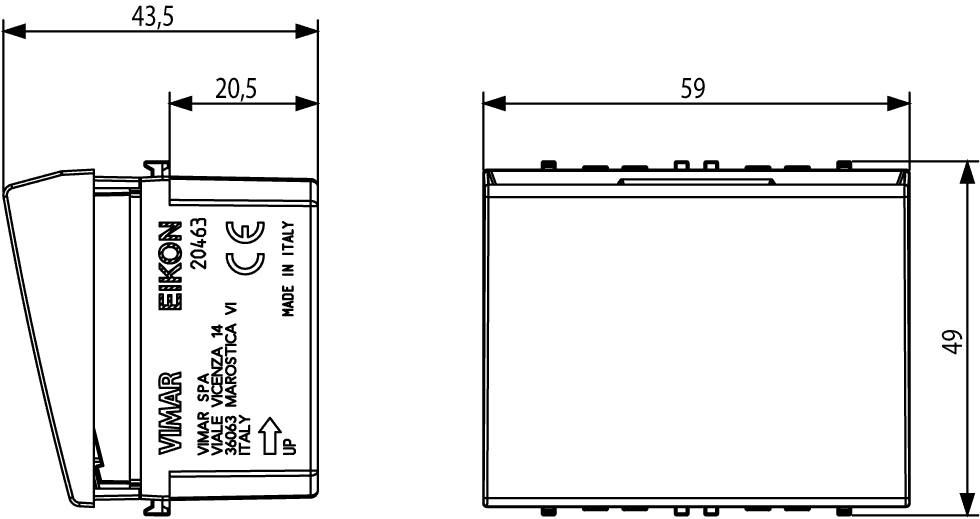

view encumbered art. 20463
PNG DXF
rear view art. 20463
PNG DXF
3D view art. 20463
PNG DXF
Class group
Alarm installations, emergency call and signalling
Class
Access control system
Standalone
Yes
Networkable
No
PC-binding
No
Type of interface
None
Reading strategy
Data medium
Signalling
None
Mounting method
Flush-mounted
Operating voltage AC 50 Hz
250,00 - 250,01 V
Operating voltage AC 60 Hz
250,00 - 250,01 V
Operating temperature
5 - 35 °C
Degree of protection (IP)
IP20
Colour
Grey
Material
Plastic
Width
44,80 mm
Height
49,00 mm
Depth
43,50 mm

00. CE Marking - EU

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352561403
1 NR
5.2x5.7x7.6 [cm]
69.9 [g]
Barcode Qty 5 NR
8007352563780
5 NR
21.4x11.6x6 [cm]
407.3 [g]
Barcode Qty 50 NR
8007352726147
50 NR
30.5x25.5x22.5 [cm]
4,073 [g]
