9P SUB D socket connector grey - 20365

Pdf
Vimar - 20365 - 9P SUB D socket connector grey
Vimar - 20365 - 9P SUB D socket connector grey

20365
Wiring devices / Traditional wiring devices / EIKON / Devices

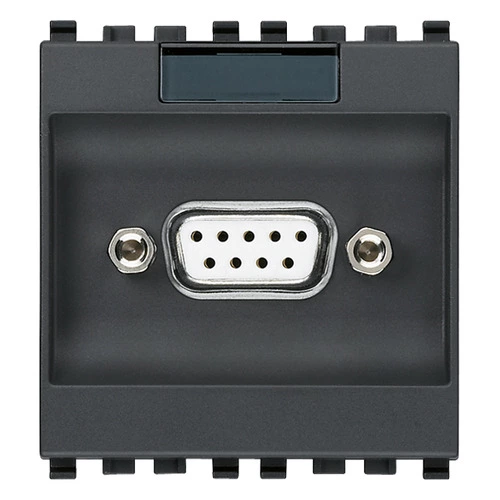

9P SUB D socket connector grey
9-pin socket connector, SUB D, soldering, grey - 2 modules

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 20365
PNG DXF
rear view art. 20365
PNG DXF
3D view art. 20365
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
D-sub-miniature
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Number of modules (module system)
2
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
44,80 mm
Device height
49,00 mm
Device depth
20,10 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352250079
1 NR
5.1x2.8x5.3 [cm]
19.6 [g]
Barcode Qty 5 NR
8007352250086
5 NR
14.2x6.7x5.9 [cm]
127.67 [g]
