Socket with 3 RCA connector grey - 20335

Pdf
Vimar - 20335 - Socket with 3 RCA connector grey
Vimar - 20335 - Socket with 3 RCA connector grey

20335
Wiring devices / Traditional wiring devices / EIKON / Devices

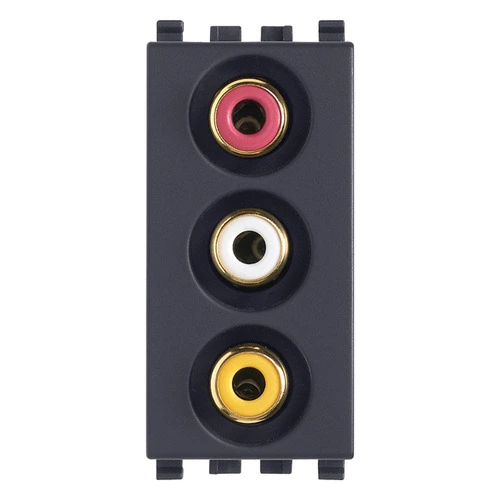

Socket with 3 RCA connector grey
Socket outlet with 3 RCA connectors, screw terminals, grey

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

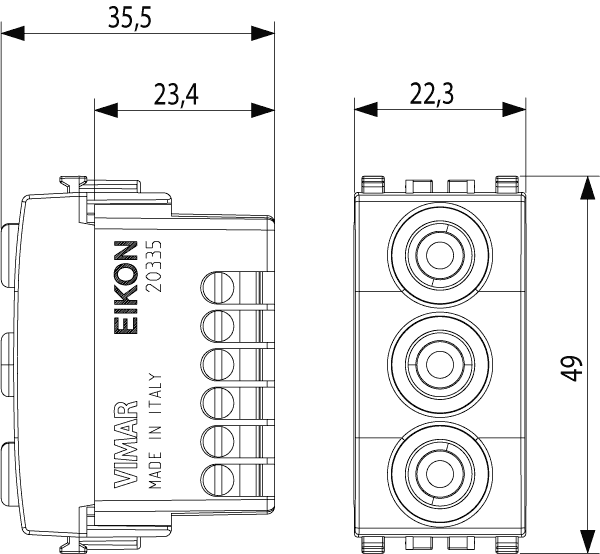

view encumbered art. 20335
PNG DXF
rear view art. 20335
PNG DXF
3D view art. 20335
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
RCA
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
35,50 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352420533
1 NR
5.1x2.8x5.3 [cm]
37.1 [g]
Barcode Qty 10 NR
8007352420540
10 NR
14.4x11.6x6 [cm]
413.4 [g]
Barcode Qty 120 NR
8007352657052
120 NR
36.5x33x13.5 [cm]
4,960.8 [g]
