2P point-line outlet soldering grey - 20334

Pdf
Vimar - 20334 - 2P point-line outlet soldering grey
Vimar - 20334 - 2P point-line outlet soldering grey

20334
Wiring devices / Traditional wiring devices / EIKON / Devices

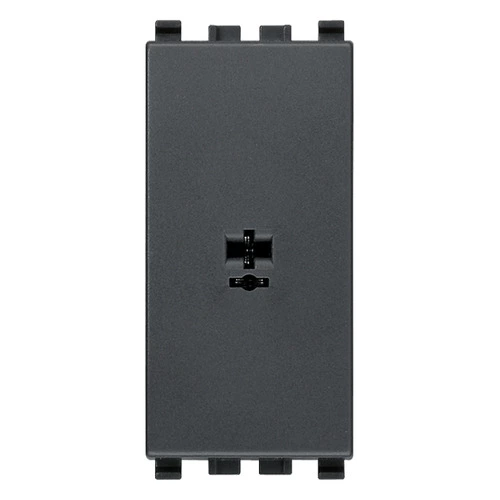

2P point-line outlet soldering grey
Socket outlet with 2P 60130-9 IEC-07 point-line connector, soldering terminal points, grey. For phonic circuits, Hi-Fi and similar installations

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 20334
PNG DXF
rear view art. 20334
PNG DXF
3D view art. 20334
PNG DXF
Class group
Domestic switching devices
Class
Insert/cover for communication technology
Assembly arrangement
Modular device for domestic switching devices
Utilization
Other
Support ring
No
With dust cover
No
With hinged lid
No
With imprint
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Number of modules (module system)
1
With strain relief
No
Luster terminal
No
Suitable for degree of protection (IP)
IP20
Device width
22,30 mm
Device height
49,00 mm
Device depth
20,50 mm

00. CE Marking - EU

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352250680
1 NR
4.1x2.8x5.3 [cm]
9.07 [g]
Barcode Qty 10 NR
8007352250697
10 NR
14.4x9x6 [cm]
127.07 [g]
