TV-FM-SAT single-conn.3outs grey - 20303

20303
Wiring devices / Traditional wiring devices / EIKON / Devices

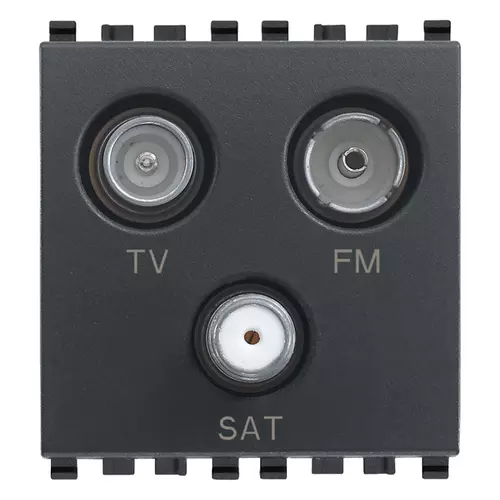

TV-FM-SAT single-conn.3outs grey
Coaxial TV-FM radio-SAT 5-2400 MHz socket outlet, single connection, demix, 3 outputs with TV male and female FM radio and F-type (SAT) connectors, connection attenuation 1 dB, grey - 2 modules. Allows the passage of d.c. current and control signals (24 V 500 mA max) through the female connector

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Multilanguage instructions sheet (485 kb)

---

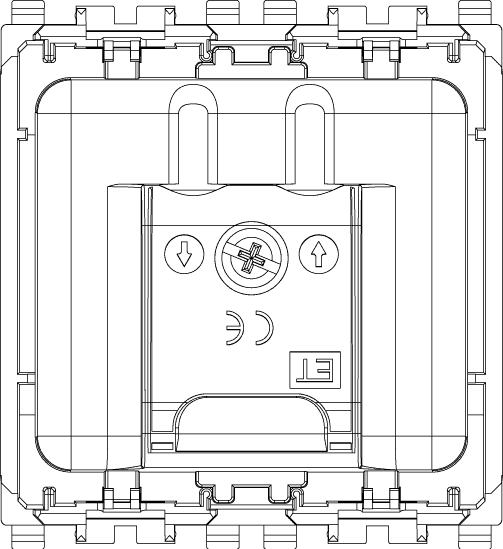

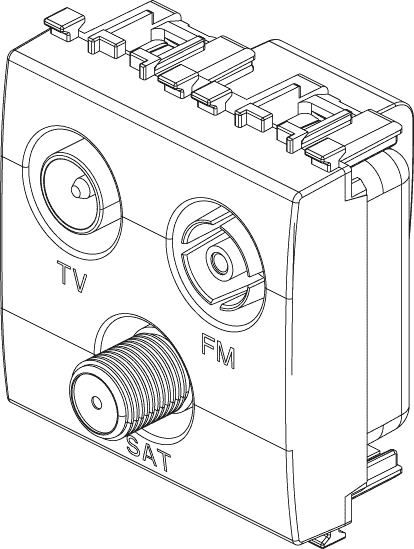

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Antenna and satellite technique

Class
Antenna socket box

Model
End socket

Cover
None

Tap loss at 860 MHz
1,80 dB

Tap loss at 2150 MHz
1,30 dB

Number of outlets
3

Suitable for remote power supply
Yes

Type of fastening
Snap mounting (engagement)

Colour
Grey

RAL-number (similar)
7024

Material
Plastic

00. CE Marking - EU

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352395305

1 NR

5.1x4.3x5.3 [cm]

81.6 [g]

8007352395312

5 NR

14.4x11.6x6 [cm]

456.6 [g]

8007352644793

60 NR

36.5x33x13.5 [cm]

5,898 [g]
