2P+E 16A universal outlet grey - 20210

Pdf
Vimar - 20210 - 2P+E 16A universal outlet grey
Foto gallery #1
Foto gallery #2
Vimar - 20210 - 2P+E 16A universal outlet grey

20210
Wiring devices / Traditional wiring devices / EIKON / Devices

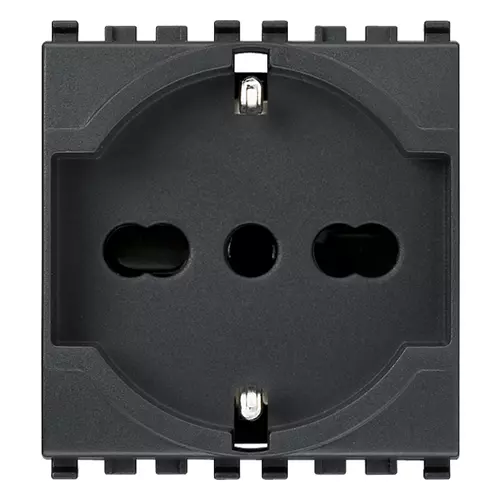

2P+E 16A universal outlet grey
2P+E 16 A 250 V~ SICURY socket outlet, universal, P40 Italian standard, grey - 2 modules

Product Status
3 - Active

Drawings

view encumbered art. 20210
PNG DXF

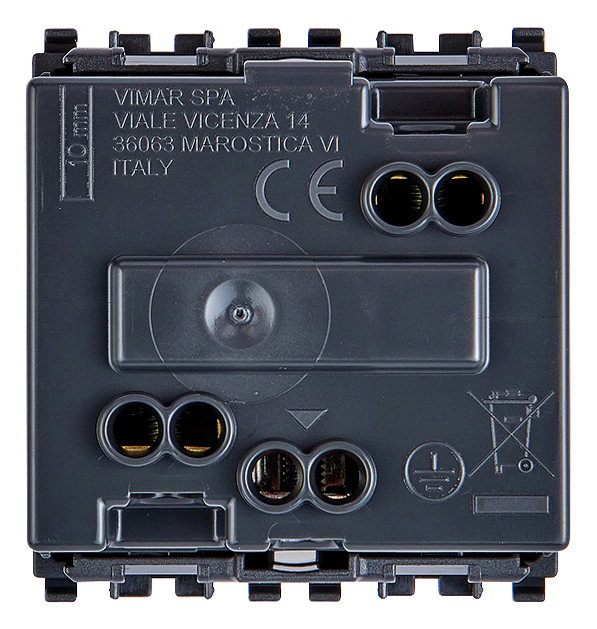

rear view art. 20210
PNG DXF
3D view art. 20210
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Other
Number of units
1
Number of modules (module system)
2
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
Grey
RAL-number (similar)
7024
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
16 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
44,80 mm
Device height
49,00 mm
Device depth
26,00 mm

00. CE Marking - EU

03. CSv-IMQ - Italy

37. Marking - Morocco

50. Product Environm. Profile

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352249592
1 NR
5.1x4.3x5.3 [cm]
47.67 [g]
Barcode Qty 20 NR
8007352249608
20 NR
26.9x11.6x9 [cm]
1,033.07 [g]
Barcode Qty 240 NR
8007352290563
240 NR
38x28.5x35.5 [cm]
12,960 [g]
Barcode Qty 3,840 NR
8007352750838
3,840 NR
120x80x105 [cm]
207,360 [g]
