2P+E 10A P11 outlet white - 20201.B

Pdf
Vimar - 20201.B - 2P+E 10A P11 outlet white
Foto gallery #1
Foto gallery #2
Vimar - 20201.B - 2P+E 10A P11 outlet white

20201.B
Wiring devices / Traditional wiring devices / EIKON / Devices

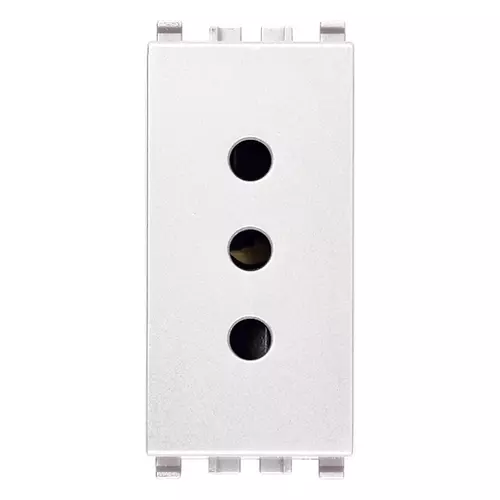

2P+E 10A P11 outlet white
2P+E 10 A 250 V~ SICURY socket outlet, Italian standard P11, white

Product Status
3 - Active

Drawings

view encumbered art. 20201.B
PNG DXF

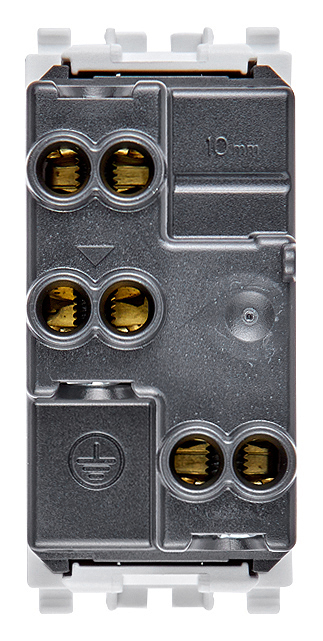

rear view art. 20201.B
PNG DXF

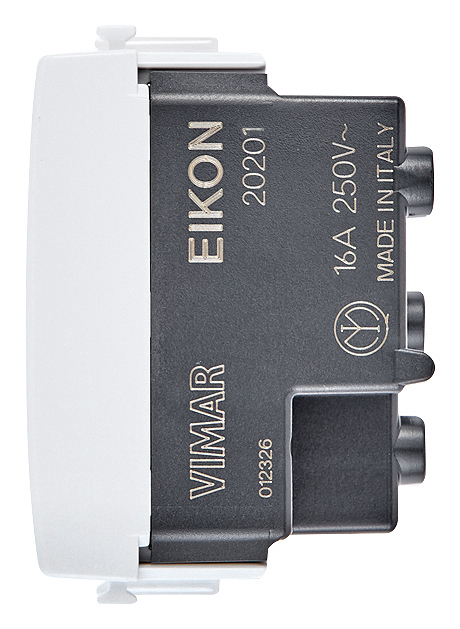

3D view art. 20201.B
PNG DXF
Class group
Domestic switching devices
Class
Socket outlet
Model
Italian type P11
Number of units
1
Number of modules (module system)
1
Number of socket outlets switchable
0
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
Yes
Colour
White
RAL-number (similar)
9016
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
Over voltage protection
No
Fault current protection
No
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
With loop through function
No
With on/off switch
No
Rotated central insert
No
Nominal current
10 A
Nominal voltage
250 V
Frequency
50,00 - 60,00 HZ
Suitable for degree of protection (IP)
IP20
Impact strength
Other
Device width
22,30 mm
Device height
49,00 mm
Device depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352313491
1 NR
4.1x2.8x5.3 [cm]
27.873 [g]
Barcode Qty 50 NR
8007352313507
50 NR
21.6x11.6x14.3 [cm]
1,666.93 [g]
Barcode Qty 500 NR
8007352352216
500 NR
57.5x22.5x30 [cm]
17,189.3 [g]
Barcode Qty 10,500 NR
8007352352223
10,500 NR
80x120x103 [cm]
335,000 [g]
