SET/RESET device grey - 20183

Pdf

20183
Wiring devices / Traditional wiring devices / EIKON / Devices

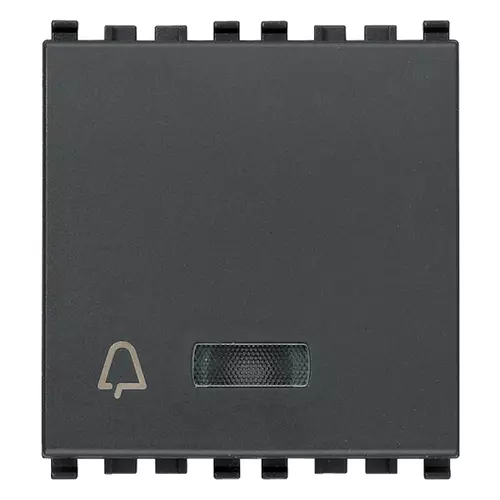

SET/RESET device grey
SET/RESET push button for emergency call system, visible in darkness, 2 NO 5 A 250 V~ relay outputs for acoustic and optical signalling, supply voltage 12 V~ 50-60 Hz or 12-24 V d.c. (SELV), grey - 2 modules. SET with built-in or from peripheral NC push buttons connected in series. RESET with peripheral NC push buttons connected in series

Product Status
3 - Active

Sheets, Manuals, Documentation


Drawings

Class group
Domestic switching devices
Class
Electronic insert for domestic switching devices
Model
Other
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Radio-controlled
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No

00. CE Marking - EU

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352251687
1 NR
11.2x9.6x9.8 [cm]
145.73 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
