IR relay-switch 230V grey - 20181

20181
Wiring devices / Traditional wiring devices / EIKON / Devices

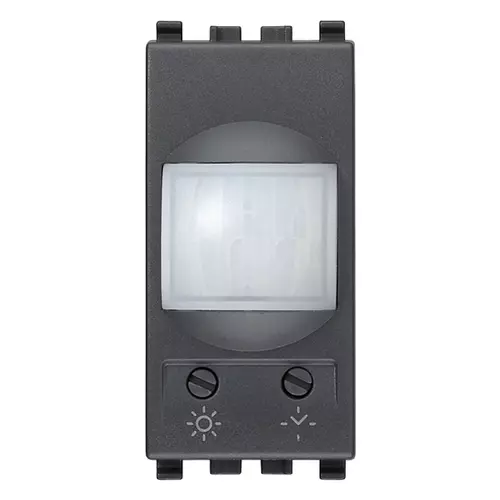

IR relay-switch 230V grey
Automatic lighting switch with IR motion sensor, adjustable dusk/dawn sensor threshold and time-delay cycle, NO 6 A 230 V~ relay output, supply voltage 230 V~ 50-60 Hz, grey

Product Status
3 - Active

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

Sheets, Manuals, Documentation

• Light Multilanguage instructions sheet (947 kb)
• Full Multilanguage instructions sheet (1103 kb)

---

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Domestic switching devices

Class
Electronic insert for domestic switching devices

Model
Other

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Radio-controlled
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

00. CE Marking - EU

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

---

Barcode

8007352257719

1 NR

5.1x4.3x5.3 [cm]

52.33 [g]

8007352257726

5 NR

14.4x11.6x6 [cm]

311.13 [g]

8007352656970

60 NR

36.5x33x13.5 [cm]

4,152 [g]
