MASTER dimmer 230V 400VA 2M grey - 20167

Pdf
Vimar - 20167 - MASTER dimmer 230V 400VA 2M grey
Vimar - 20167 - MASTER dimmer 230V 400VA 2M grey

20167
Wiring devices / Traditional wiring devices / EIKON / Devices

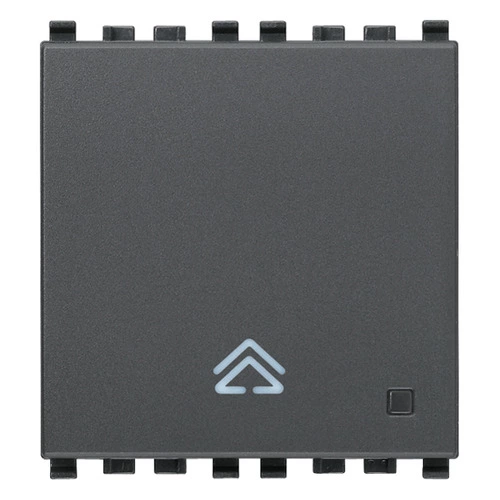

MASTER dimmer 230V 400VA 2M grey
Dimmer, 230 V~ for: 40-400 VA at 50 Hz, 40-300 VA at 60 Hz dimmable electronic transformers, with neutral terminal, control and regulation with built-in or from peripheral NO push buttons, MASTER function for 20168 and 14168, MOSFET technology, visible in darkness, protection fuse, grey - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 20167
PNG DXF
rear view art. 20167
PNG DXF
3D view art. 20167
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Capacitive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
44,80 mm
Device height
49,00 mm
Device depth
42,00 mm

01. IMQ - Italy

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352388185
1 NR
6x5.4x5.3 [cm]
79.4 [g]
Barcode Qty 5 NR
8007352388192
5 NR
17.2x13.1x6 [cm]
454.9 [g]
