SLAVE dimmer 230V 500W/VA 2M grey - 20166

Pdf
Vimar - 20166 - SLAVE dimmer 230V 500W/VA 2M grey
Vimar - 20166 - SLAVE dimmer 230V 500W/VA 2M grey

20166
Wiring devices / Traditional wiring devices / EIKON / Devices

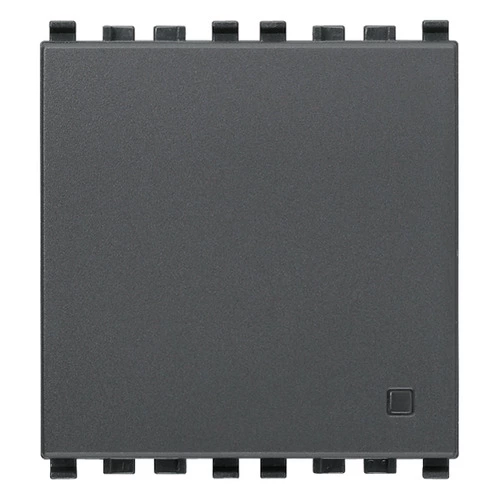

SLAVE dimmer 230V 500W/VA 2M grey
SLAVE dimmer, 230 V~ for: 40-500 W at 50 Hz, 40-400 W at 60 Hz incandescent lamps, 40-500 VA at 50 Hz,40-400 VA at 60 Hz ferromagnetic transformers, control from 20165 and 14165, MOSFET+TRIAC technology, protection fuse, grey - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 20166
PNG DXF
rear view art. 20166
PNG DXF
3D view art. 20166
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Other
Type of load
Inductive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
44,80 mm
Device height
49,00 mm
Device depth
42,00 mm

37. Marking - Morocco

96. Electrotechnical expert

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352388123
1 NR
6x5.4x5.3 [cm]
77.8 [g]
Barcode Qty 5 NR
8007352388130
5 NR
17.2x13.1x6 [cm]
446.1 [g]
