MASTER dimmer 230V 500W/VA 2M grey - 20165

Pdf
Vimar - 20165 - MASTER dimmer 230V 500W/VA 2M grey
Vimar - 20165 - MASTER dimmer 230V 500W/VA 2M grey

20165
Wiring devices / Traditional wiring devices / EIKON / Devices

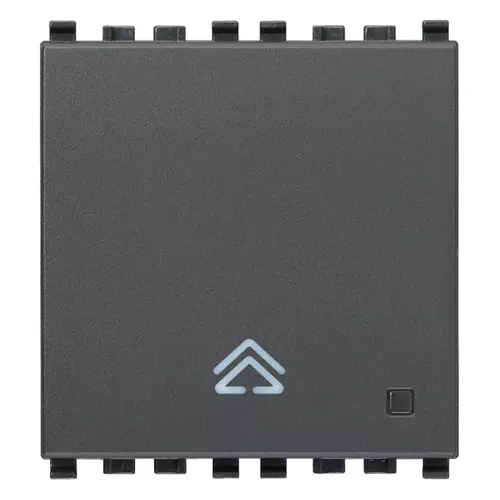

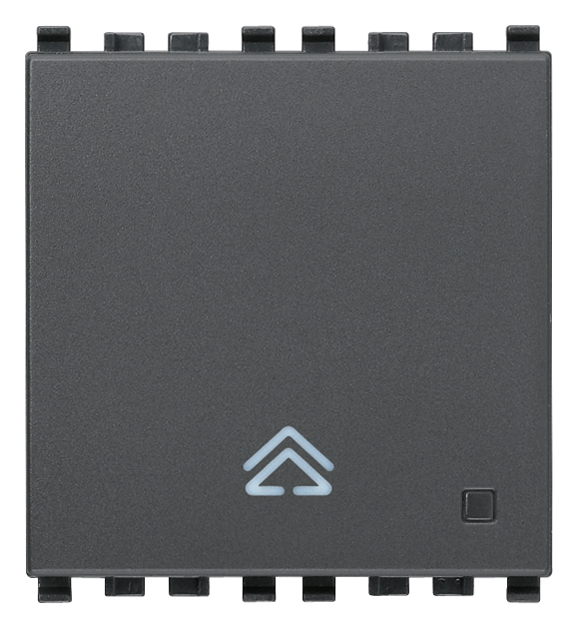

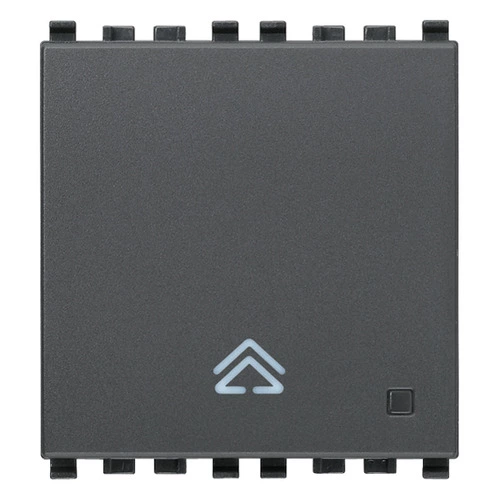

MASTER dimmer 230V 500W/VA 2M grey
Dimmer, 230 V~ for: 40-500 W at 50 Hz, 40-400 W at 60 Hz incandescent lamps, 40-500 VA at 50 Hz, 40-400 VA at 60 Hz ferromagnetic transformers, control and regulation with built-in or from peripheral NO push buttons, MASTER function for 20166 and 14166, MOSFET+TRIAC technology, visible in darkness, protection fuse, grey - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 20165
PNG DXF

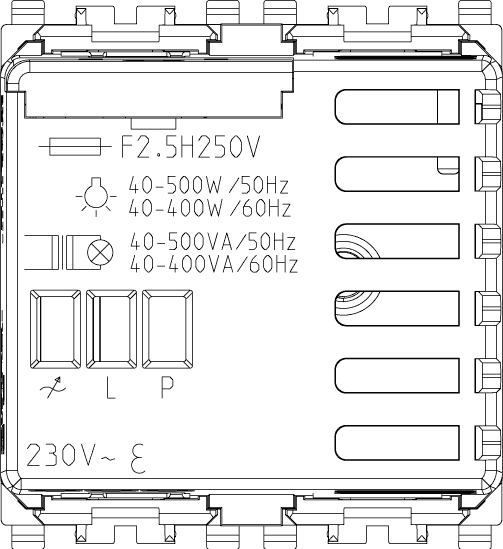

rear view art. 20165
PNG DXF

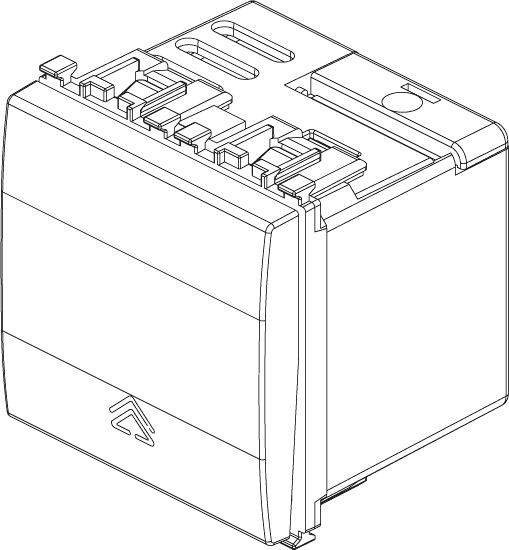

3D view art. 20165
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Push button
Type of load
Inductive load
Applicable with button
Yes
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
44,80 mm
Device height
49,00 mm
Device depth
42,00 mm

00. CE Marking - EU

01. IMQ - Italy

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352388062
1 NR
6x5.4x5.3 [cm]
79 [g]
Barcode Qty 5 NR
8007352388079
5 NR
17.2x13.1x6 [cm]
452.4 [g]
