SLAVE dimmer 230V 500VA 2M grey - 20143

Pdf
Vimar - 20143 - SLAVE dimmer 230V 500VA 2M grey
Vimar - 20143 - SLAVE dimmer 230V 500VA 2M grey

20143
Wiring devices / Traditional wiring devices / EIKON / Devices

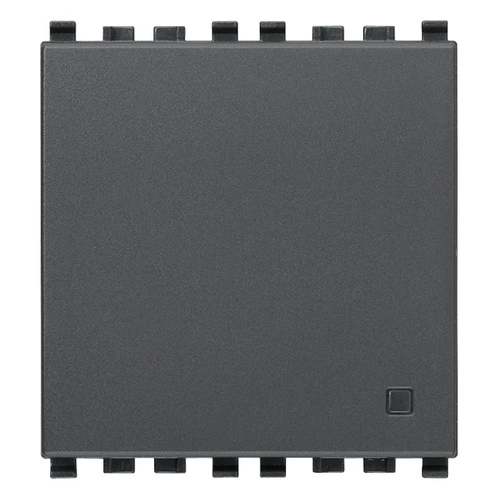

SLAVE dimmer 230V 500VA 2M grey
SLAVE dimmer, 230 V~ 50/60 Hz for: 40-500 VA dimmable electronic transformers, with neutral terminal, control from 20142 and 14142, MOSFET technology, protection fuse, grey - 2 modules

Product Status
2 - Will be discontinued

Sheets, Manuals, Documentation

Drawings

view encumbered art. 20143
PNG DXF
rear view art. 20143
PNG DXF
3D view art. 20143
PNG DXF
Class group
Domestic switching devices
Class
Dimmer
Method of operation
Other
Type of load
Capacitive load
Applicable with button
No
Applicable with movement sensor
No
Applicable with presence indicator
No
Applicable with time switch/timer
No
Applicable with transmission button
No
Applicable with infrared button
No
Mounting method
Flush-mounted
Type of fastening
Snapper mounting
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Suitable for degree of protection (IP)
IP40
Nominal voltage
230,00 - 230,01 V
Frequency
50,00 - 60,00 HZ
Control voltage
230,00 - 230,01 V
Device width
44,80 mm
Device height
49,00 mm
Device depth
42,00 mm
Minimum order quantity: 5 NR

Barcode

Barcode Qty 1 NR
8007352388000
1 NR
6x5.4x5.3 [cm]
71.7 [g]
Barcode Qty 5 NR
8007352388017
5 NR
17.2x13.1x6 [cm]
414.7 [g]
