Axial 1P 16AX 1-way switch grey - 20101

Pdf
Vimar - 20101 - Axial 1P 16AX 1-way switch grey
Vimar - 20101 - Axial 1P 16AX 1-way switch grey

20101
Wiring devices / Traditional wiring devices / EIKON / Devices

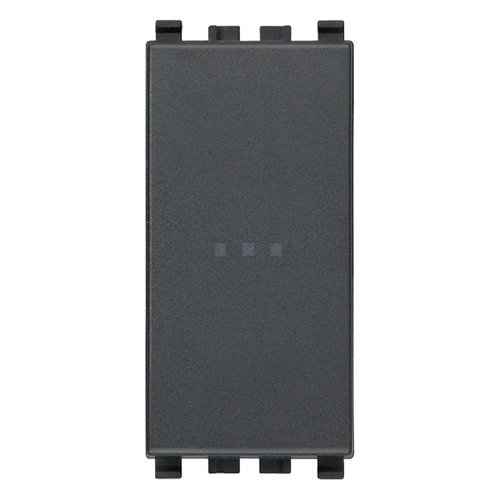

Axial 1P 16AX 1-way switch grey
Axial 1P 16 AX 250 V~ 1-way switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

You may also be interested in

00938.A
00938.A - LED unit 110-250V 0,3Waxialcontrol amber
00938.G
00938.G - LED unit 110-250V 0,3Waxialcontrol green
00938.R
00938.R - LED unit 110-250V 0,3Waxialcontrol red
00938.B
00938.B - LED unit 110-250V 0,3Waxialcontrol blue
00938.W
00938.W - LED unit 110-250V 0,3Waxialcontrol white

Drawings

view encumbered art. 20101
PNG DXF
rear view art. 20101
PNG DXF
3D view art. 20101
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
44,00 mm
Built-in depth
34,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

34. PSE - Japan

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352459762
1 NR
5.1x2.8x5.3 [cm]
29.3 [g]
Barcode Qty 20 NR
8007352459779
20 NR
27x11.6x6 [cm]
657 [g]
Barcode Qty 120 NR
8007352651265
120 NR
37.5x30x13.5 [cm]
4,656 [g]
