Pushbutton+2hotel indicators 230V - 20097

Pdf
Vimar - 20097 - Pushbutton+2hotel indicators 230V
Vimar - 20097 - Pushbutton+2hotel indicators 230V

20097
Wiring devices / Traditional wiring devices / EIKON / Devices

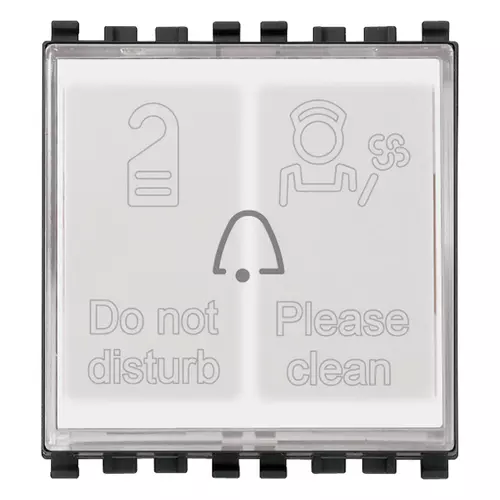

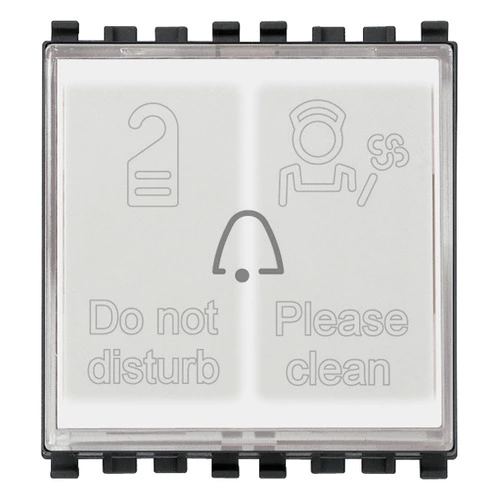

Pushbutton+2hotel indicators 230V
1P NO 10 A 250 V~ push button for hotel, with two indicator units Do Not Disturb and Please Clean 230 V~ - 2 modules

Product Status
3 - Active

Drawings

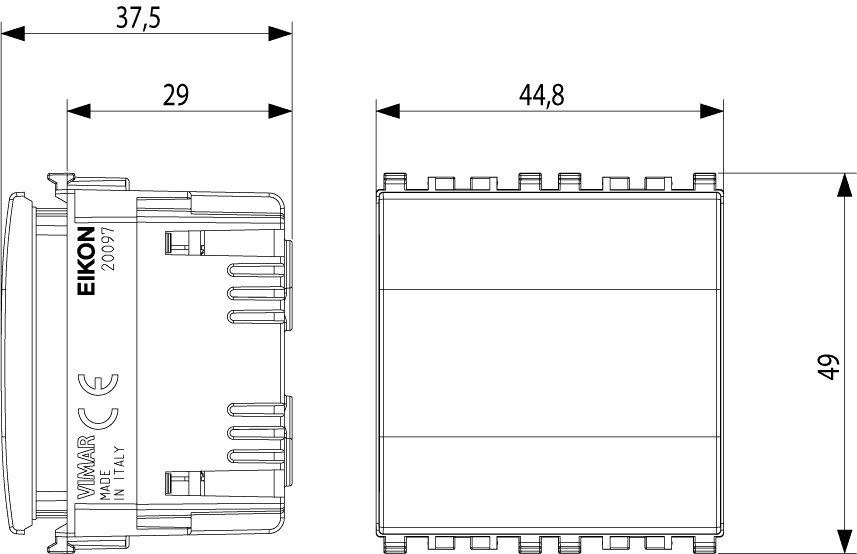

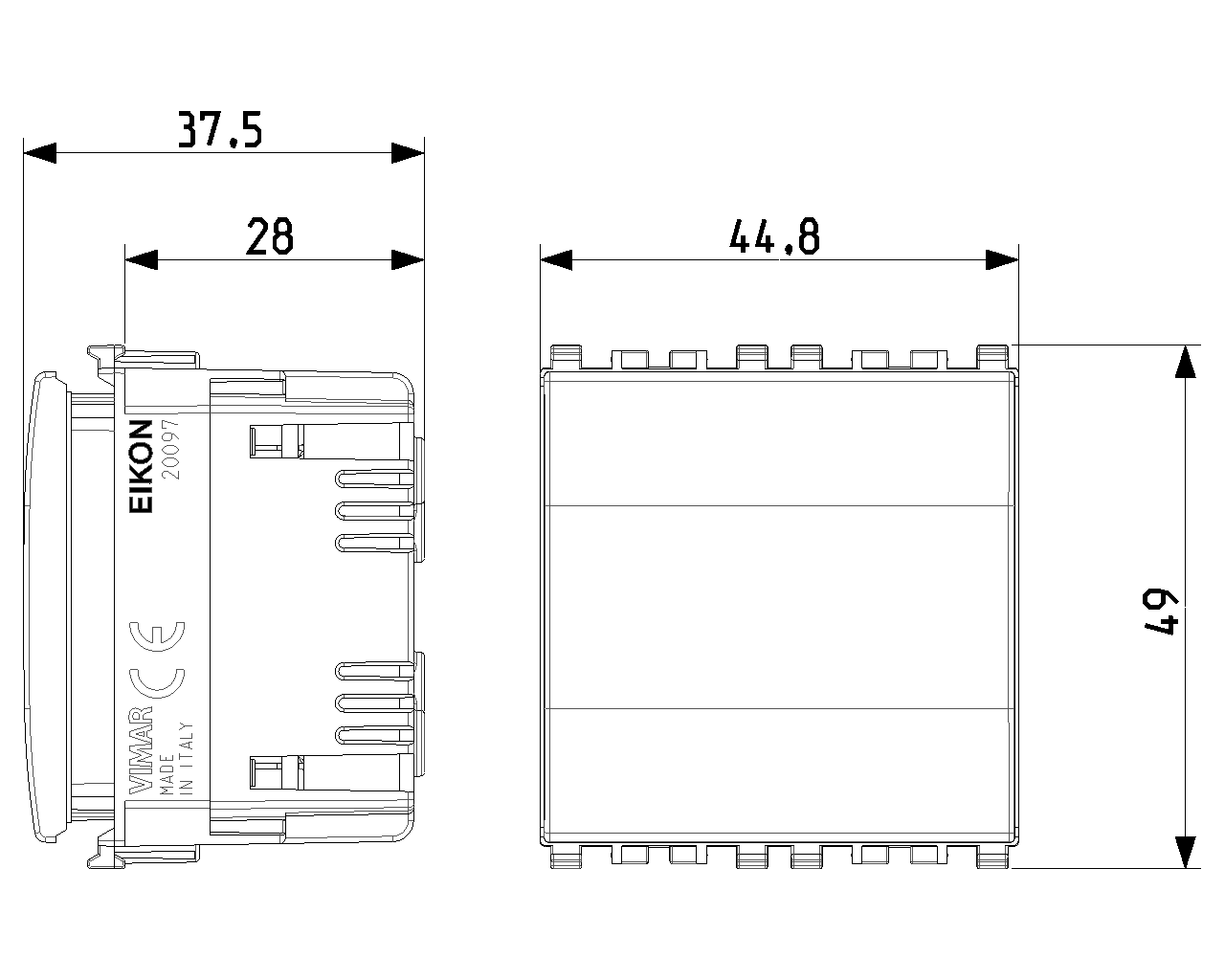

view encumbered art. 20097
PNG DXF

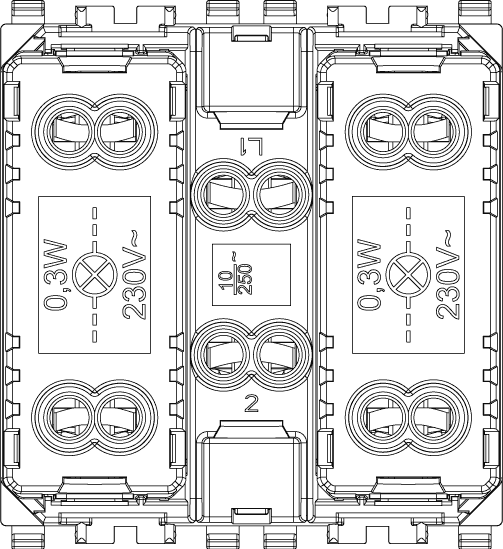

rear view art. 20097
PNG DXF
3D view art. 20097
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Single push button
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
200
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
Yes
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
7024
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
44,80 mm
Device height
49,00 mm
Device depth
37,50 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

20. IQC - Argentina

31. TISI - Thailand

37. Marking - Morocco

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352491816
1 NR
5.1x4.3x5.3 [cm]
49.7 [g]
Barcode Qty 10 NR
8007352491823
10 NR
26.9x11.6x4.9 [cm]
562.4 [g]
