1P 6(3)A rotary switch grey - 20096

Pdf

20096
Wiring devices / Traditional wiring devices / EIKON / Devices

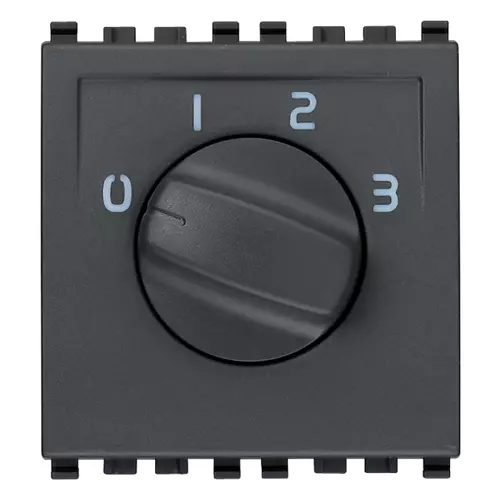

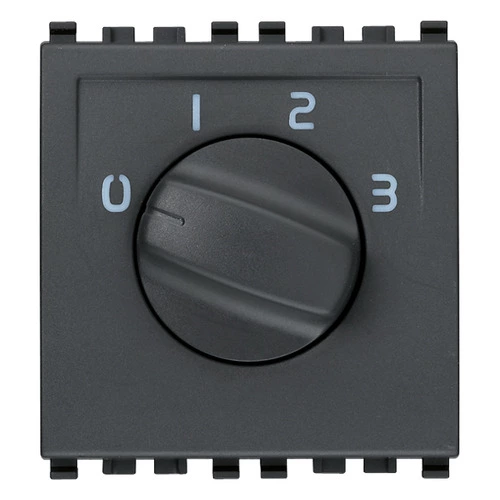

1P 6(3)A rotary switch grey

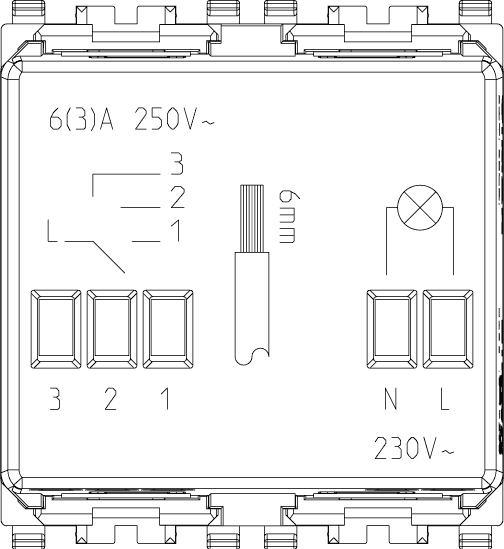

1P 6(3) A 250 V~ 4-position rotary switch, for fan-coil speed regulation, lightable symbols with supply 230 V~ only, grey - 2 modules

Product Status
3 - Active

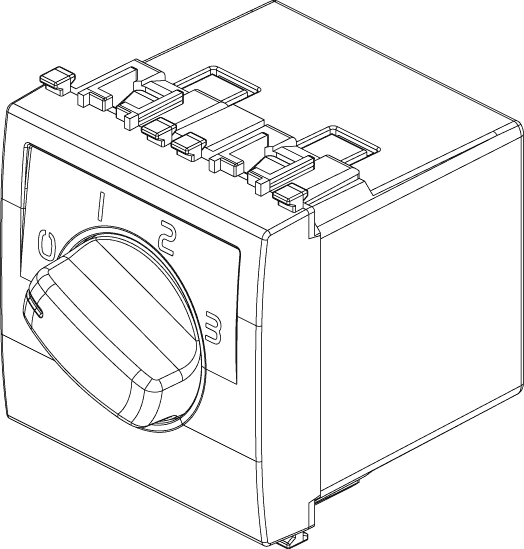

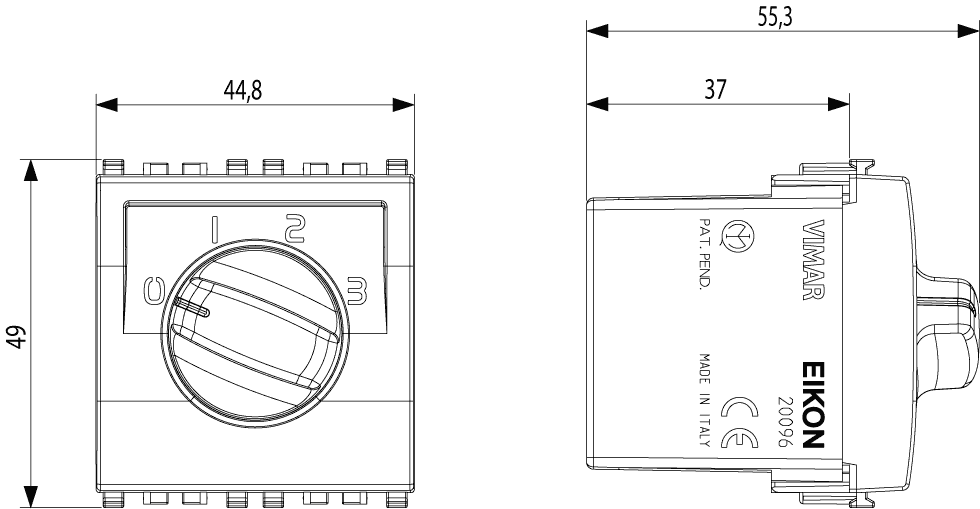

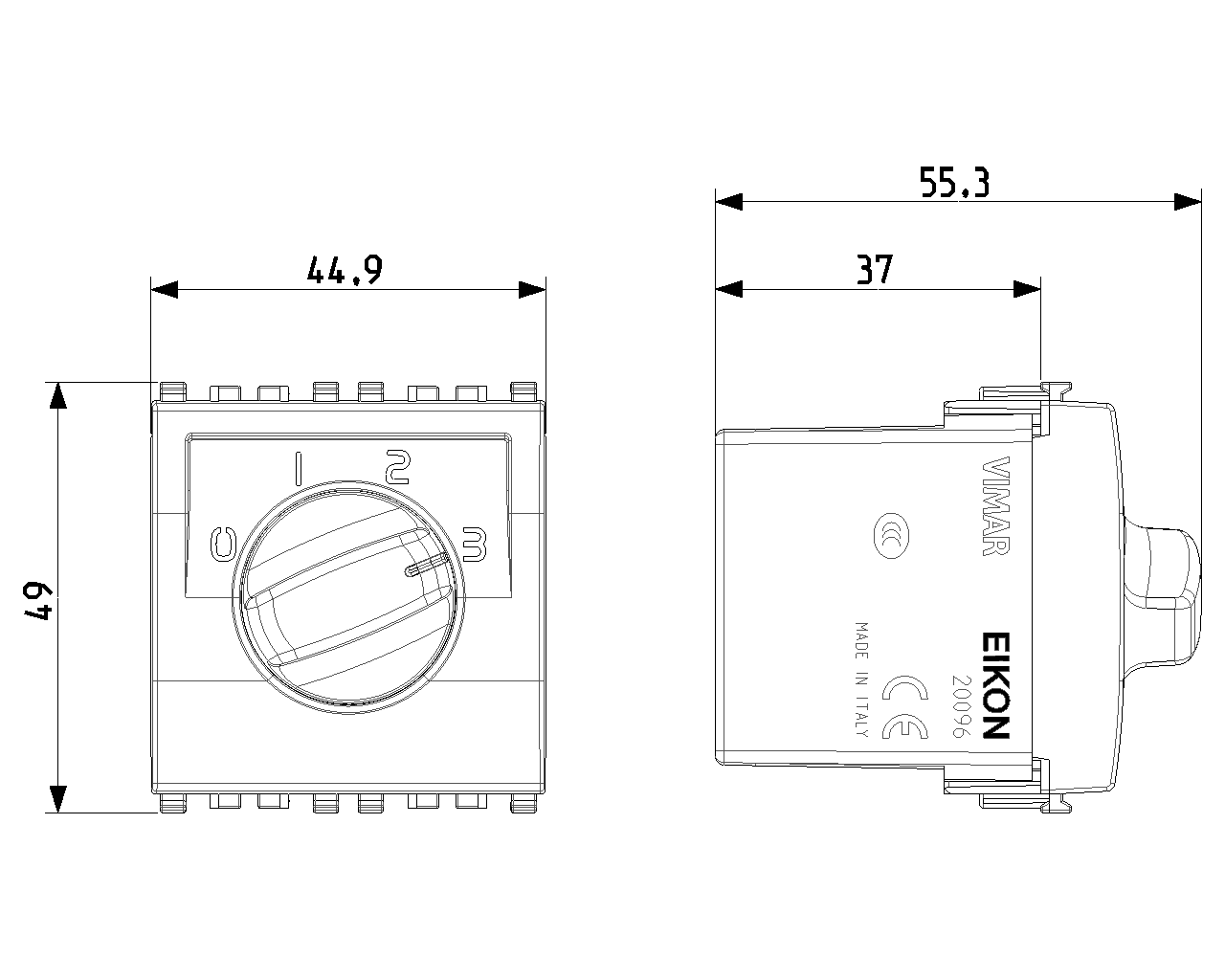

Drawings

Class group
Domestic switching devices
Class
Three-stage switch
Method of operation
Turn button
Wiring system
Other
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Transparent
No
Suitable for degree of protection (IP)
IP40
Rated current
6 A
Nominal voltage
250 V
Type of fastening
Other

00. CE Marking - EU

20. IQC - Argentina

37. Marking - Morocco

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352251670
1 NR
11.2x9.6x9.8 [cm]
119.87 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
