2P NO 16A push button +000-key Next - 20086.CU.N

Pdf
Vimar - 20086.CU.N - 2P NO 16A push button +000-key Next
Vimar - 20086.CU.N - 2P NO 16A push button +000-key Next

20086.CU.N
Wiring devices / Traditional wiring devices / EIKON / Devices

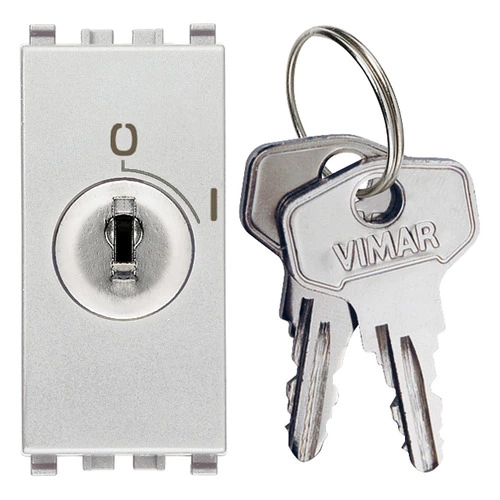

2P NO 16A push button +000-key Next
2P NO 16 A 250 V~ key-operated push button, 000 unified key removable in OFF position only, Next

Product Status
3 - Active

Drawings

view encumbered art. 20086.CU.N
PNG DXF
rear view art. 20086.CU.N
PNG DXF
3D view art. 20086.CU.N
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm

00. CE Marking - EU

01. IMQ - Italy

20. IQC - Argentina

29. QCERT - Colombia

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352291775
1 NR
5.1x2.8x5.3 [cm]
54.13 [g]
Barcode Qty 10 NR
8007352291782
10 NR
14.4x11.6x6 [cm]
586.33 [g]
