2P NO 16A push button +key white - 20086.B

Pdf
Vimar - 20086.B - 2P NO 16A push button +key white
Vimar - 20086.B - 2P NO 16A push button +key white

20086.B
Wiring devices / Traditional wiring devices / EIKON / Devices

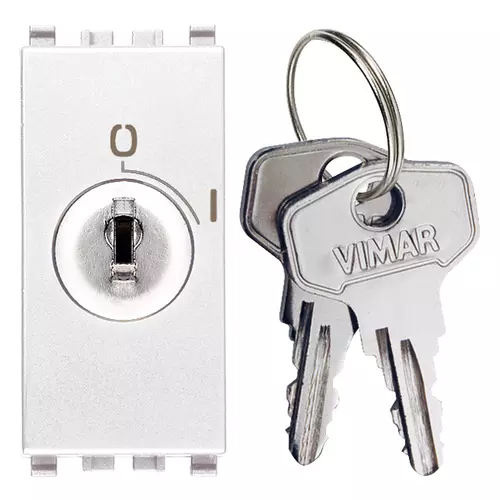

2P NO 16A push button +key white
2P NO 16 A 250 V~ key-operated push button, key removable in OFF position only, white

Product Status
3 - Active

Drawings

view encumbered art. 20086.B
PNG DXF
rear view art. 20086.B
PNG DXF
3D view art. 20086.B
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
0
Number of modules (module system)
100
Number of poles
2
Nominal voltage
250 V
Rated current
16,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352315891
1 NR
5.1x2.8x5.3 [cm]
54.27 [g]
Barcode Qty 10 NR
8007352315907
10 NR
14.4x11.6x6 [cm]
587.47 [g]
