2P 16(3)A 1-way switch +key Next - 20083.N

Pdf
Vimar - 20083.N - 2P 16(3)A 1-way switch +key Next
Vimar - 20083.N - 2P 16(3)A 1-way switch +key Next

20083.N
Wiring devices / Traditional wiring devices / EIKON / Devices

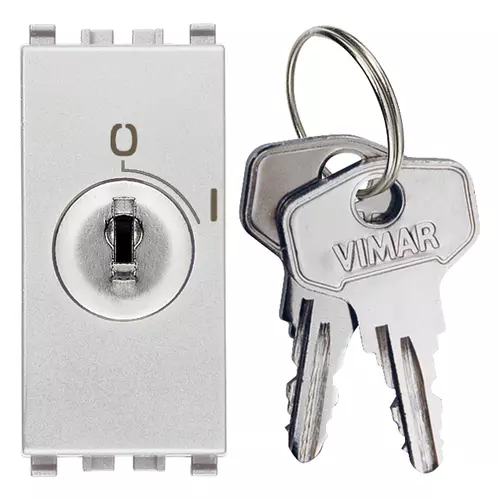

2P 16(3)A 1-way switch +key Next
Independent mounting 2P 16(3) A 250 V~ key-operated 1-way switch, with key removable in both positions, Next. To be installed with the appropriate accessories from the Eikon series. Protection degree: IP20, Degree of pollution: II, Overvoltage category: III, for conductors from 1.5 mm2 to 4 mm2, complete circuit disconnection, Tracking index: PTI250, Glow wire 850°C

Product Status
3 - Active

Drawings

rear view art. 20083.N
PNG DXF
3D view art. 20083.N
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm
Built-in depth
33,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352291737
1 NR
5.1x2.8x5.3 [cm]
53.2 [g]
Barcode Qty 10 NR
8007352291744
10 NR
14.4x11.6x6 [cm]
576.87 [g]
