2P 16AX 1-way switch +key in OFF Next - 20082.N

Pdf
Vimar - 20082.N - 2P 16AX 1-way switch +key in OFF Next
Vimar - 20082.N - 2P 16AX 1-way switch +key in OFF Next

20082.N
Wiring devices / Traditional wiring devices / EIKON / Devices

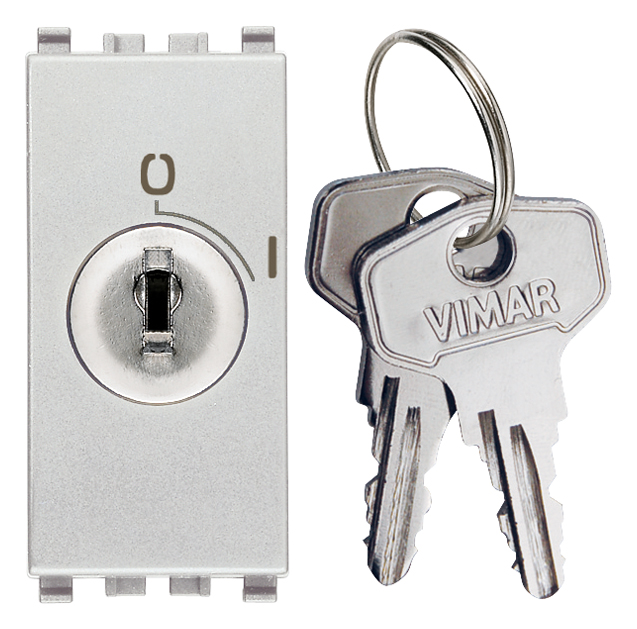

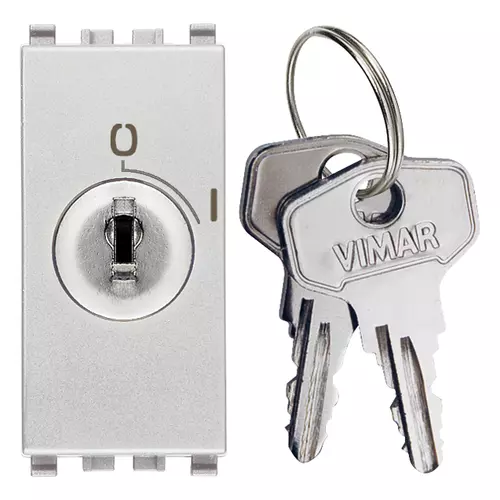

2P 16AX 1-way switch +key in OFF Next
2P 16 AX 250 V~ key-operated 1-way switch, key removable in OFF position only, Next. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
2 - Will be discontinued

Drawings

view encumbered art. 20082.N
PNG DXF
rear view art. 20082.N
PNG DXF
3D view art. 20082.N
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Key
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
0
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
16,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
22,30 mm
Device height
49,00 mm
Device depth
43,50 mm
Built-in depth
33,50 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

29. QCERT - Colombia

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352291713
1 NR
5.1x2.8x5.3 [cm]
52.87 [g]
Barcode Qty 10 NR
8007352291720
10 NR
14.4x11.6x6 [cm]
577.6 [g]
