Two intelocked NO+NO 10A pushes Next - 20062.N

Pdf
Vimar - 20062.N - Two intelocked NO+NO 10A pushes Next
Foto gallery #1
Foto gallery #2
Vimar - 20062.N - Two intelocked NO+NO 10A pushes Next

20062.N
Wiring devices / Traditional wiring devices / EIKON / Devices

Two intelocked NO+NO 10A pushes Next

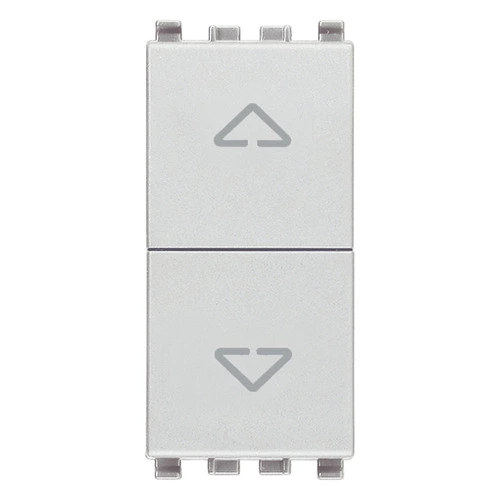

Two interlocked push buttons, 1P NO + 1P NO 10 A 250 V~, with directional arrows, Next

Product Status
3 - Active

Drawings

view encumbered art. 20062.N
PNG DXF
rear view art. 20062.N
PNG DXF
3D view art. 20062.N
PNG DXF
Class group
Domestic switching devices
Class
Push button
Assembly arrangement
Modular device for domestic switching devices
Model
Other
Method of operation
Push button
Number of rockers
1
Number of modules (module system)
100
Number of poles
1
Nominal voltage
250 V
Rated current
10,00 A
With lighting
No
Feedback-signal contact
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Transparent
No
Label space/information surface
Yes
Suitable for degree of protection (IP)
IP40
Device width
22,30 mm
Device height
49,00 mm
Device depth
39,00 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352291539
1 NR
4.1x2.8x5.3 [cm]
33.6 [g]
Barcode Qty 10 NR
8007352291546
10 NR
14.4x9x6 [cm]
371.4 [g]
Barcode Qty 160 NR
8007352637276
160 NR
37.5x30x13.5 [cm]
6,242.4 [g]
