20060
Wiring devices / Traditional wiring devices / EIKON / Devices

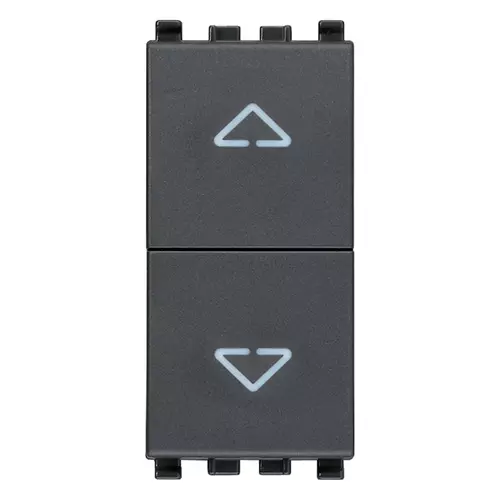

2P 10AX 2-way switch grey
2P 10 AX 250 V~ (6 terminals) two-button switch, with directional arrows and central OFF position, grey. Max 100 W for self-ballasted lamps (IEC 60669-1:2017)
Product Status
3 - Active
You may also be interested in
Drawings
Domestic switching devices
Push button
Modular device for domestic switching devices
Other
Other
1
100
2
250 V
10,00 A
No
No
Flush-mounted
Engage (snap)
Plastic
Thermoplastic
Yes
Untreated
Matt
Grey
7024
No
Yes
IP40
22,30 mm
49,00 mm
43,50 mm
00. CE Marking - EU
14. TSE - Turkey
20. IQC - Argentina
29. QCERT - Colombia
31. TISI - Thailand
37. Marking - Morocco
Barcode
| Question: | If I press a push button, does it stay in position until the opposite push button is pressed? |
|---|---|
| Answer: | The product is a 2-pole switch, with a central OFF position. When one of the two push buttons is pressed, it remains in position (allowing the movement of the roller shutter/curtain) until the other push button is pressed to restore it to the neutral position. |
| Question: | Can the product be fully opened by pressing the push button once? |
| Answer: | Yes. Upon pressure, the product even remains on after you release it, allowing the continuous closure of the circuit to which it is connected without having to hold it down. |
