1P NO 10A name-plate push button grey - 20050

20050
Wiring devices / Traditional wiring devices / EIKON / Devices

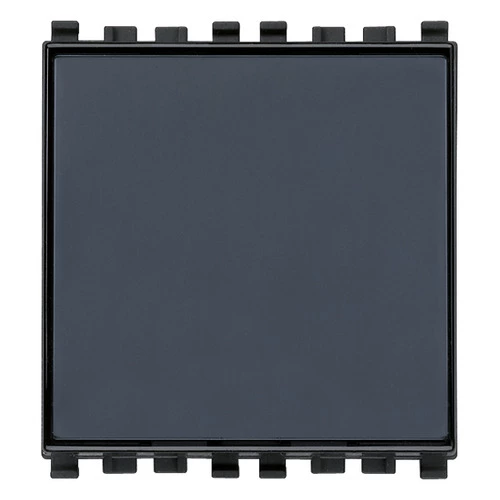

1P NO 10A name-plate push button grey
1P NO 10 A 250 V~ lightable name-plate push button, for E10 10x28 mm 1 W max lamp, grey - 2 modules. Delivered without lamp

Product Status
3 - Active

You may also be interested in

14771 - E10 10x28mm 24V 2W incand.lamp white

14777 - E10 10x28mm 220V 3W incand.lamp white

00940 - E10 10x21 230V 0,7W LED lamp white

• Documents and downloads
• ETIM technical data
• Certifications
• Supply data

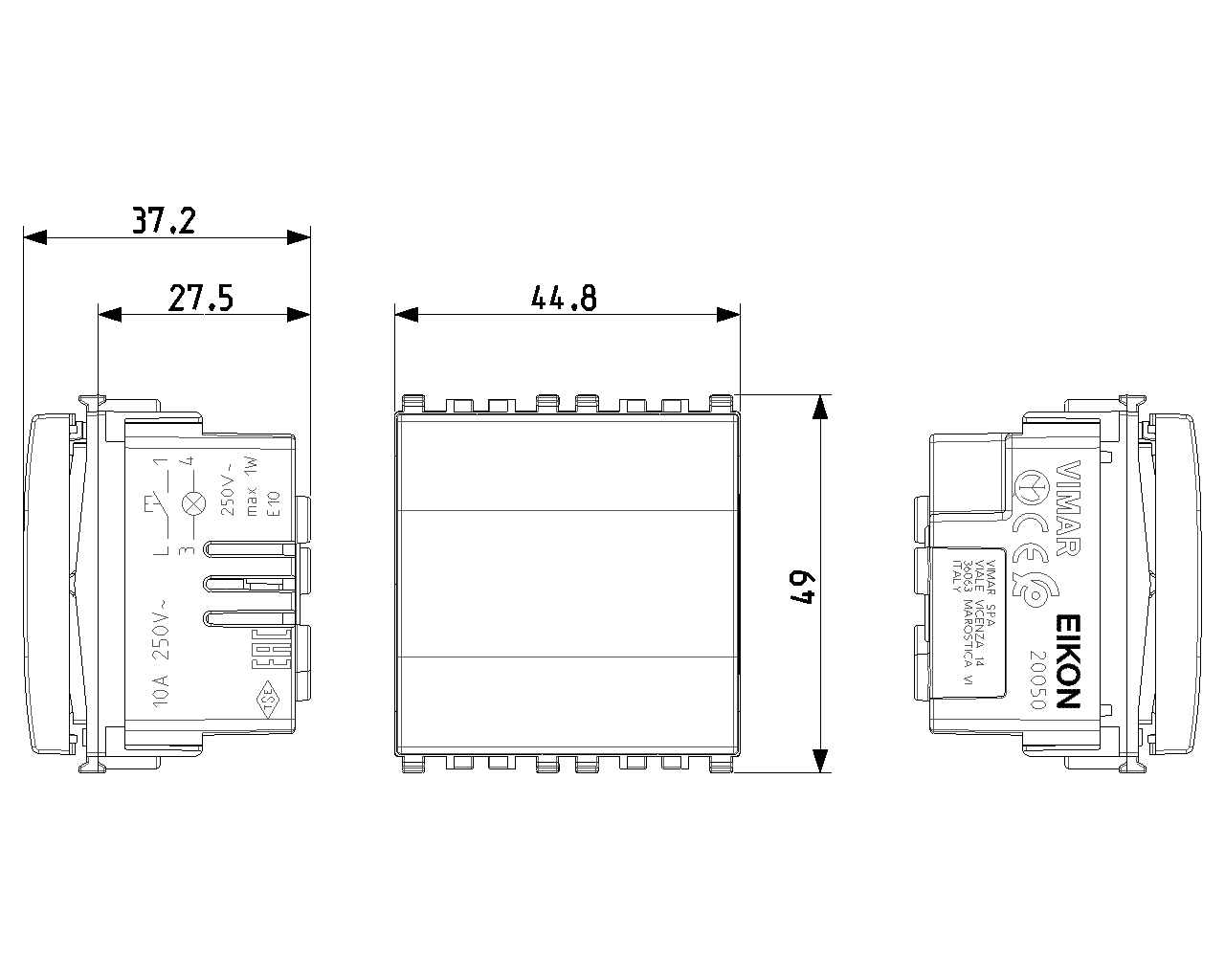

Drawings

PNG DXF

PNG DXF

PNG DXF

Class group
Communication technique

Class
Doorbell

With name plate
Yes

With lighting
Yes

Material
Plastic

Mounting method
Flush-mounted

Colour
Grey

Wireless
No

Built-in depth
26,50 mm

Height
49,00 mm

00. CE Marking - EU

01. IMQ - Italy

14. TSE - Turkey

19. NOM - Mexico

20. IQC - Argentina

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

---

Barcode

8007352253087

1 NR

5.1x4.3x5.3 [cm]

51.33 [g]

8007352253094

20 NR

26.9x11.6x9 [cm]

1,110.2 [g]

8007352644649

240 NR

38x28.5x35.5 [cm]

13,860 [g]
