13A switched/fused connection unit Next - 20049.L.N

Pdf
Vimar - 20049.L.N - 13A switched/fused connection unit Next
Vimar - 20049.L.N - 13A switched/fused connection unit Next

20049.L.N
Wiring devices / Traditional wiring devices / EIKON / Devices

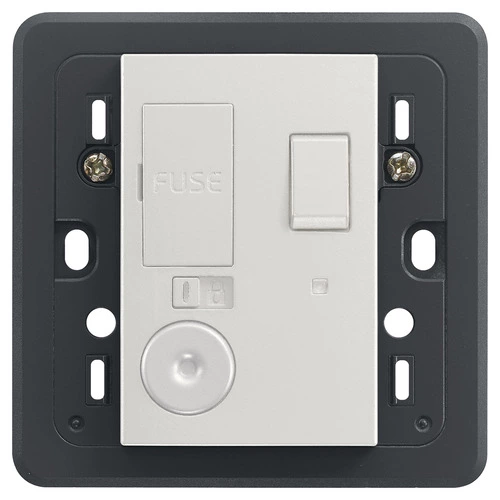

13A switched/fused connection unit Next
2P switched 13 A 250 V~ connection unit, protection fuse, with built-in mounting frame for installation in British standard square flush mounting boxes and to complete with 3-module British standard cover plates, Next

Product Status
3 - Active

Sheets, Manuals, Documentation

Drawings

view encumbered art. 20049.L.N
PNG DXF
rear view art. 20049.L.N
PNG DXF
3D view art. 20049.L.N
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Other
Number of modules (module system)
3
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Screw mounting
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Surface protection
Lacquered
Surface finishing
Matt
Colour
Silver
RAL-number (similar)
9022
Label space/information surface
Yes
Illumination
Yes
Function lighting
Illuminated (on)
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
13,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
82,50 mm
Device height
82,50 mm
Device depth
33,00 mm
Built-in depth
20,40 mm

00. CE Marking - EU

08. ASTA - UK

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 10 NR

Barcode

Barcode Qty 1 NR
8007352406988
1 NR
8.5x3.9x8.6 [cm]
106.4 [g]
Barcode Qty 10 NR
8007352406995
10 NR
20.7x18.5x9.6 [cm]
1,162 [g]
