2P 20AX 1-way switch grey - 20016

Pdf
Vimar - 20016 - 2P 20AX 1-way switch grey
Vimar - 20016 - 2P 20AX 1-way switch grey

20016
Wiring devices / Traditional wiring devices / EIKON / Devices

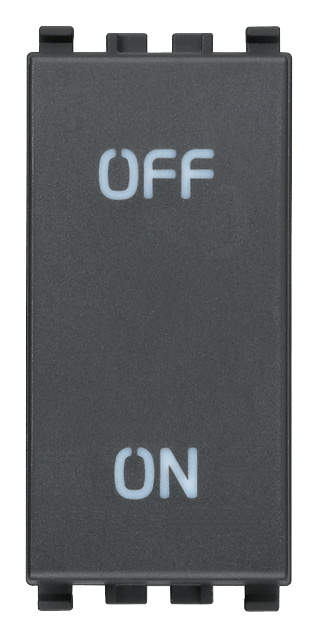

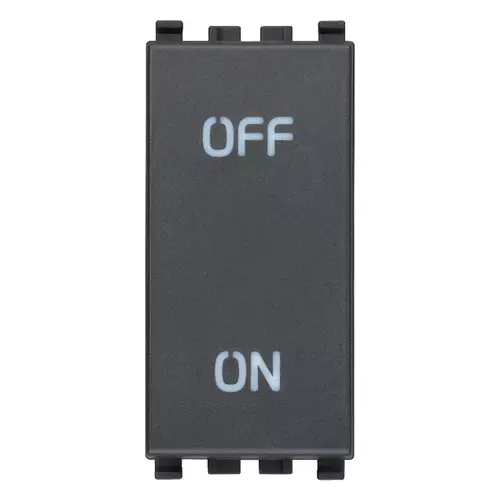

2P 20AX 1-way switch grey
2P 20 AX 250 V~, 1-way switch, lightable, replaceable button, grey. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 20016
PNG DXF

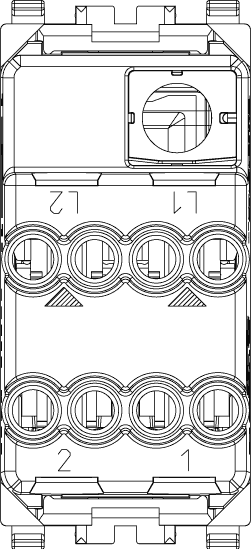

rear view art. 20016
PNG DXF
3D view art. 20016
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
2-pole switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
Yes
Device width
22,30 mm
Device height
49,00 mm
Device depth
36,10 mm
Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

92. RoHS UAE

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352404908
1 NR
4.1x2.8x5.3 [cm]
33.2 [g]
Barcode Qty 50 NR
8007352404915
50 NR
21.4x11.6x14.2 [cm]
1,746 [g]
