Vimar - 20015 - 2P 16AX 1-way switch grey

20015
Wiring devices / Traditional wiring devices / EIKON / Devices

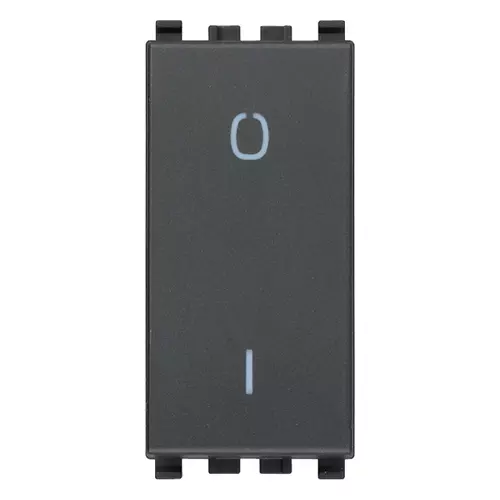

2P 16AX 1-way switch grey
2P 16 AX 250 V~ 1-way switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

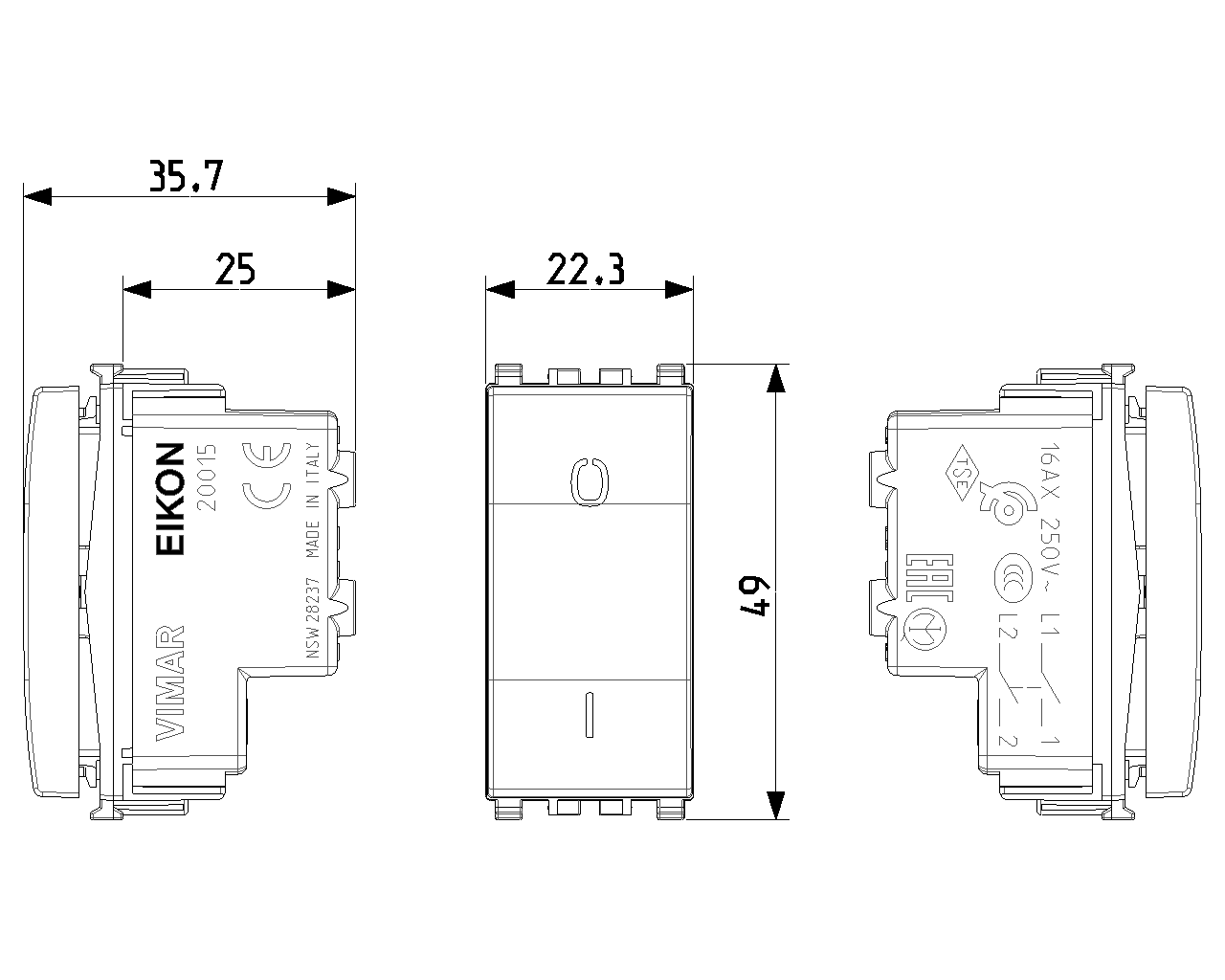

view encumbered art. 20015

PNG DXF

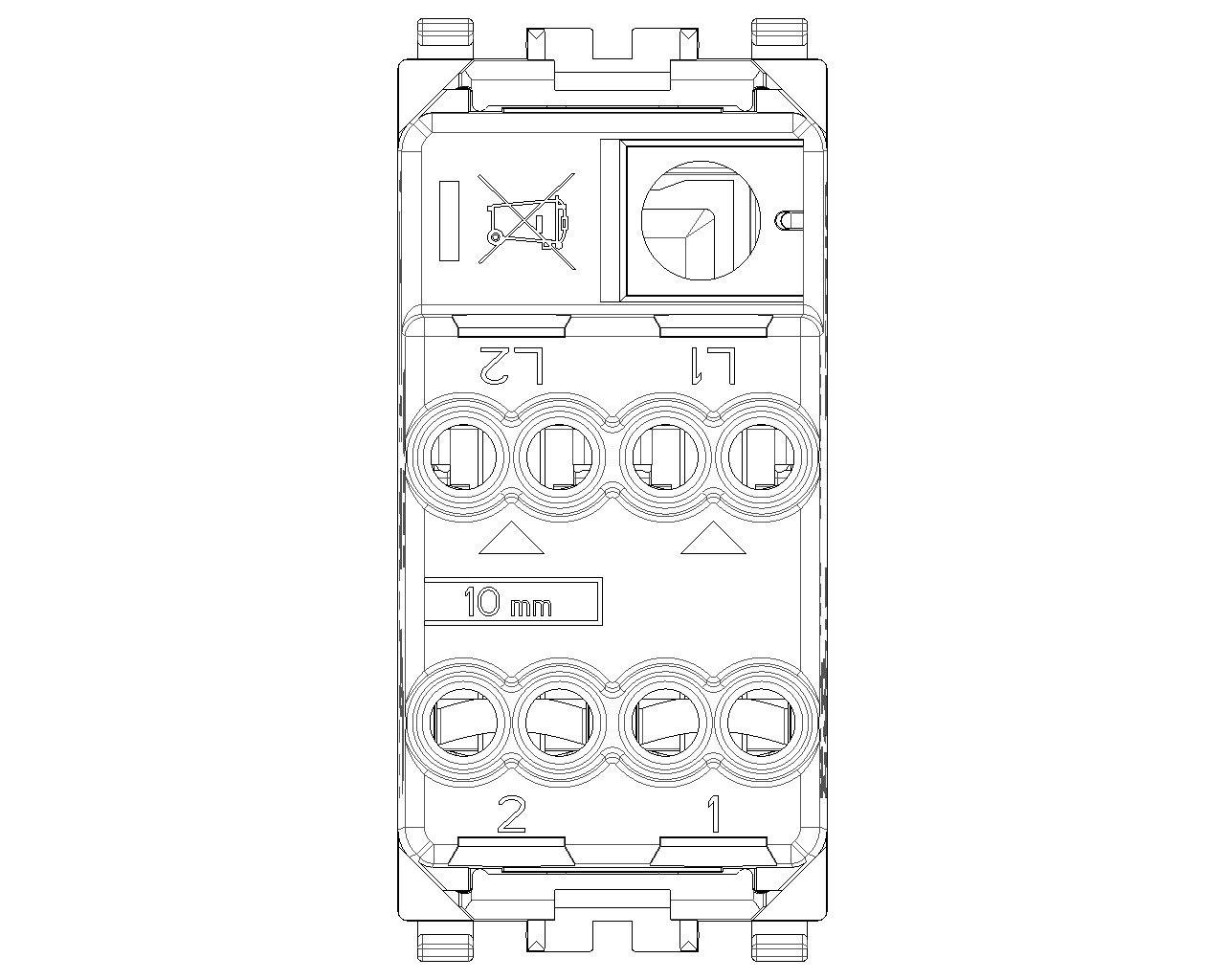

rear view art. 20015

PNG DXF

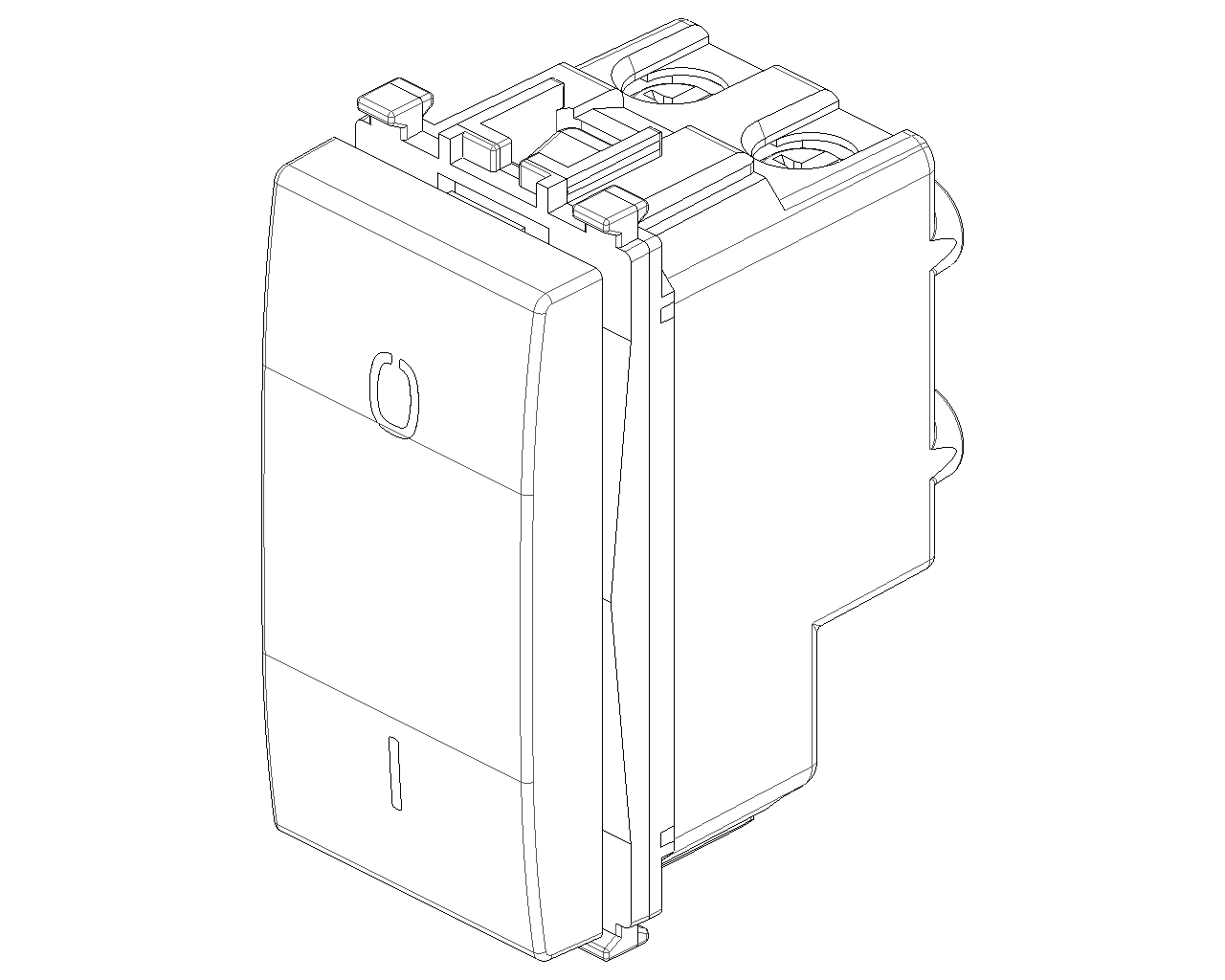

3D view art. 20015

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
2-pole switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
Yes

Device width
22,30 mm

Device height
49,00 mm

Device depth
36,80 mm

Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352250949

1 NR

4.1x2.8x5.3 [cm]

31.6 [g]

8007352250956

50 NR

21.4x11.6x14.2 [cm]

1,669.53 [g]

8007352641181

500 NR

57.5x22.5x30 [cm]

17,215 [g]

8007352750777

10,500 NR

120x80x105 [cm]

361,515 [g]
