1P 16AX reversing switch grey - 20013

Pdf

Vimar - 20013 - 1P 16AX reversing switch grey

20013
Wiring devices / Traditional wiring devices / EIKON / Devices

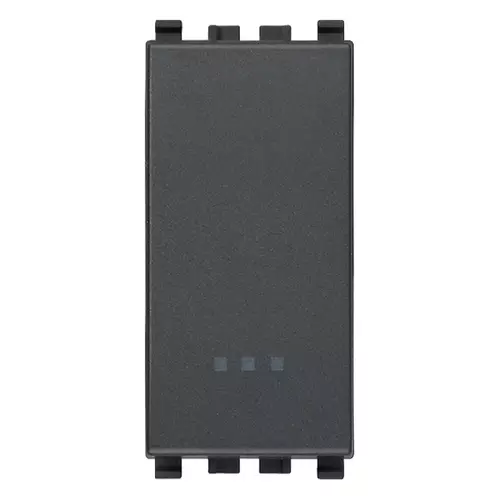

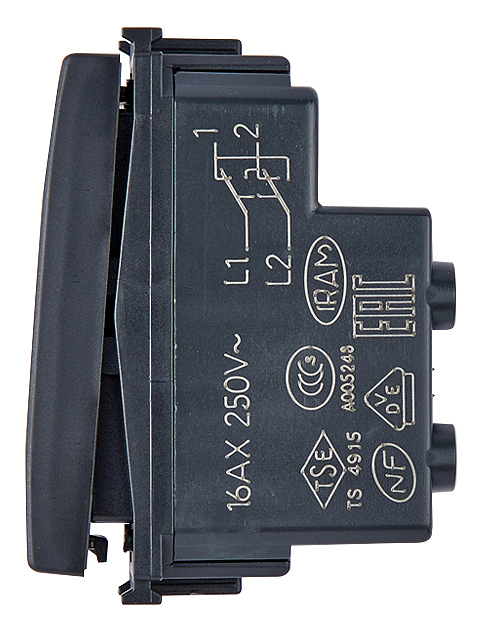

1P 16AX reversing switch grey
1P 16 AX 250 V~ reversing switch, lightable, replaceable button, grey. Max 200 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 20013

PNG DXF

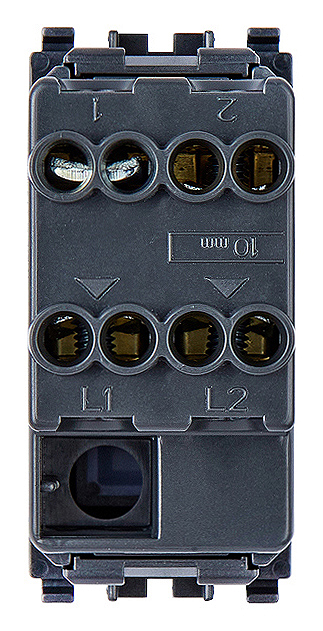

rear view art. 20013

PNG DXF

3D view art. 20013

PNG DXF

Class group
Domestic switching devices

Class
Installation switch

Wiring system
Intermediate switch

Method of operation
Rocker/button

Assembly arrangement
Modular device for domestic switching devices

Number of modules (module system)
1

Push button switch
Yes

Number of rockers
1

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

With mounting plate
No

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Label space/information surface
Yes

Illumination
Optional

Function lighting
Control and orientation

Type of lighting
LED exchangeable

Suitable for degree of protection (IP)
IP40

Nominal voltage
250 V

Rated current
16,00 A

Feedback-signal contact
No

Connection type
Screwed terminal

Washing machine switch
No

Device width
22,30 mm

Device height
49,00 mm

Device depth
36,15 mm

Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352250765

1 NR

4.1x2.8x5.3 [cm]

33.8 [g]

8007352250772

50 NR

21.4x11.6x14.2 [cm]

1,786.27 [g]

8007352642768

500 NR

57.5x22.5x30 [cm]

18,370 [g]

Share

Codice QR scheda articolo

Legal

Vimar reserves the right to change at any time and without notice the characteristics of the products reported. Installation should be carried out by qualified staff in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. For the terms of use of the information on the product info sheet see Conditions of Use.
