Vimar - 20008 - 1P NO 10A push button grey

20008
Wiring devices / Traditional wiring devices / EIKON / Devices

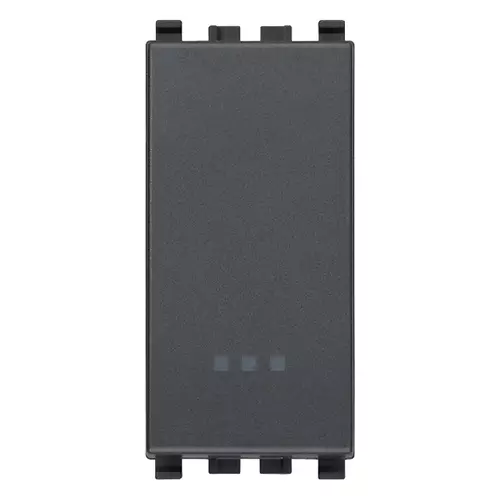

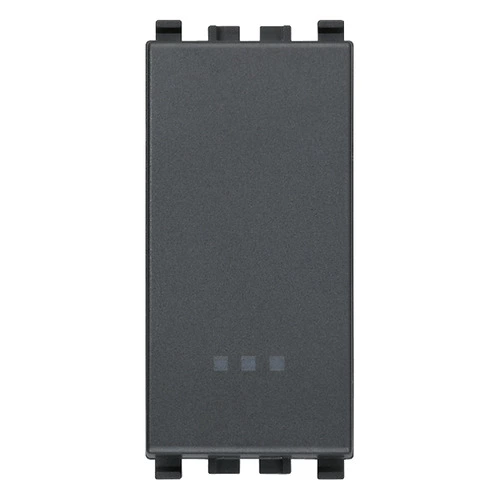

1P NO 10A push button grey
1P NO 10 A 250 V~ push button, lightable, replaceable button, grey

Product Status
3 - Active

Drawings

view encumbered art. 20008

PNG DXF

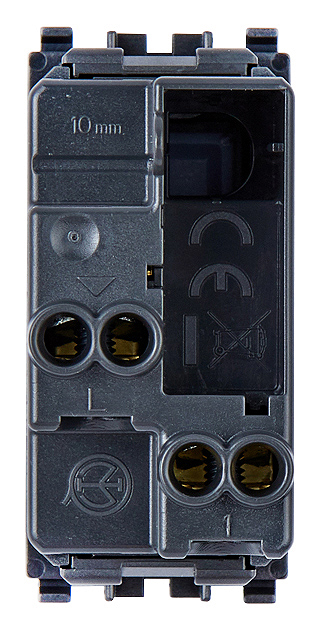

rear view art. 20008

PNG DXF

3D view art. 20008

PNG DXF

Class group
Domestic switching devices

Class
Push button

Assembly arrangement
Modular device for domestic switching devices

Model
Single push button

Method of operation
Push button

Number of rockers
1

Number of modules (module system)
100

Number of poles
1

Nominal voltage
250 V

Rated current
10,00 A

With lighting
Yes

Feedback-signal contact
No

Mounting method
Flush-mounted

Type of fastening
Engage (snap)

Material
Plastic

Material quality
Thermoplastic

Halogen free
Yes

Surface protection
Untreated

Surface finishing
Matt

Colour
Grey

RAL-number (similar)
7024

Transparent
No

Label space/information surface
Yes

Suitable for degree of protection (IP)
IP40

Device width
22,30 mm

Device height
49,00 mm

Device depth
36,10 mm

00. CE Marking - EU

01. IMQ - Italy

13. SNI-MGI - Indonesia

14. TSE - Turkey

15. CCC - China

19. NOM - Mexico

20. IQC - Argentina

26. SASO - Saudi Arabia

28. NSW - Australia

29. QCERT - Colombia

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

50. Product Environm. Profile

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

8007352250789

1 NR

4.1x2.8x5.3 [cm]

26.07 [g]

8007352250796

50 NR

21.4x11.6x14.2 [cm]

1,397.47 [g]

8007352290518

500 NR

57.5x22.5x30 [cm]

14,504.67 [g]

8007352750746

10,500 NR

120x80x105 [cm]

304,605 [g]
