Three 1P 20AX 2-way switches grey - 20007

Pdf
Vimar - 20007 - Three 1P 20AX 2-way switches grey
Vimar - 20007 - Three 1P 20AX 2-way switches grey

20007
Wiring devices / Traditional wiring devices / EIKON / Devices

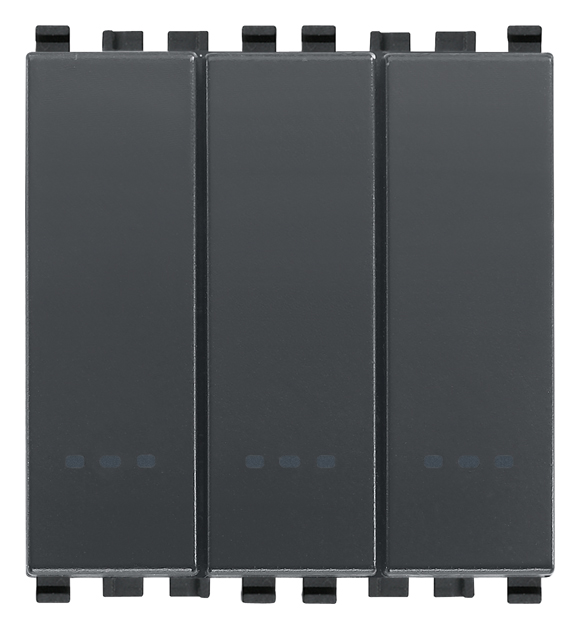

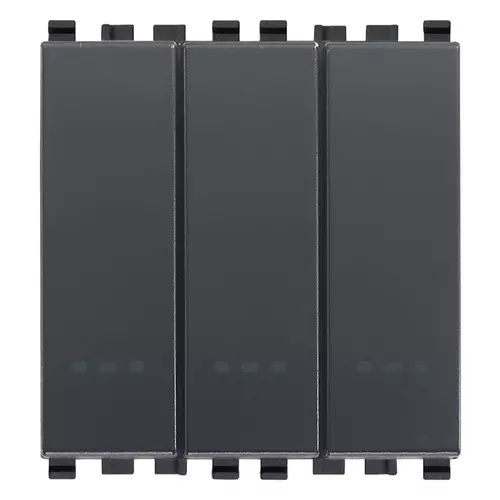

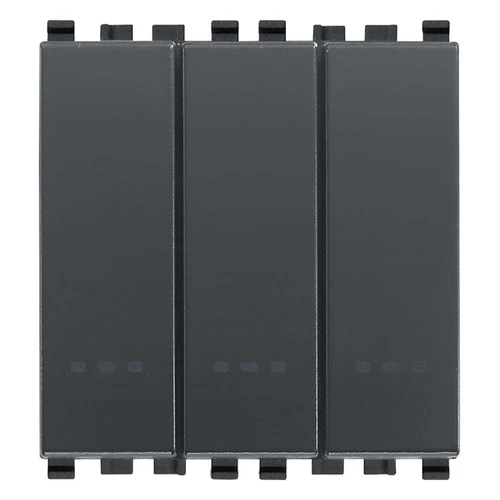

Three 1P 20AX 2-way switches grey
Three 1P 20 AX 250 V~ 2-way switches, grey - 2 modules. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

view encumbered art. 20007
PNG DXF
rear view art. 20007
PNG DXF
3D view art. 20007
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
2
Push button switch
Yes
Number of rockers
3
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Illumination
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
44,80 mm
Device height
49,00 mm
Device depth
42,75 mm
Built-in depth
31,60 mm

00. CE Marking - EU

01. IMQ - Italy

15. CCC - China

19. NOM - Mexico

31. TISI - Thailand

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 20 NR

Barcode

Barcode Qty 1 NR
8007352404465
1 NR
5.1x4.3x5.3 [cm]
71.45 [g]
Barcode Qty 20 NR
8007352404472
20 NR
26.9x11.6x9 [cm]
1,510 [g]
