1P 20AX 1-way switch grey - 20002

Pdf
Vimar - 20002 - 1P 20AX 1-way switch grey
Vimar - 20002 - 1P 20AX 1-way switch grey

20002
Wiring devices / Traditional wiring devices / EIKON / Devices

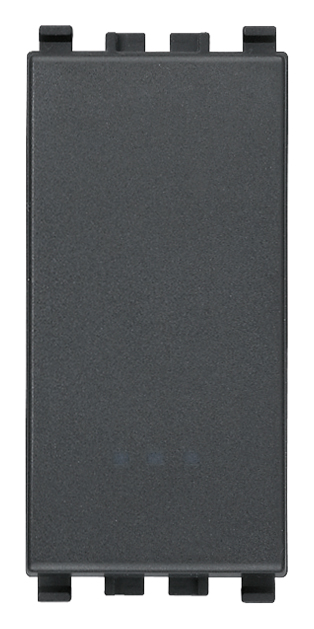

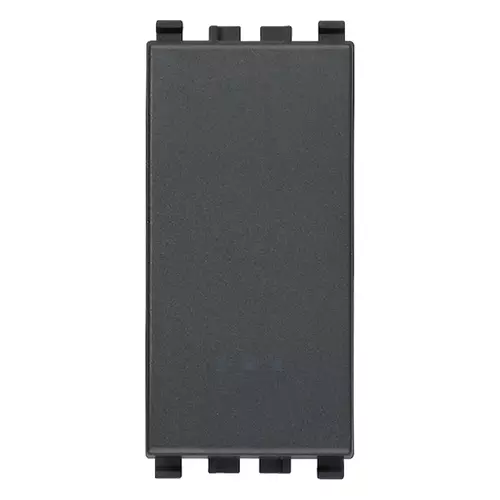

1P 20AX 1-way switch grey
1P 20 AX 250 V~ 1-way switch, lightable, replaceable button, grey. Max 250 W for self-ballasted lamps (IEC 60669-1:2017)

Product Status
3 - Active

Drawings

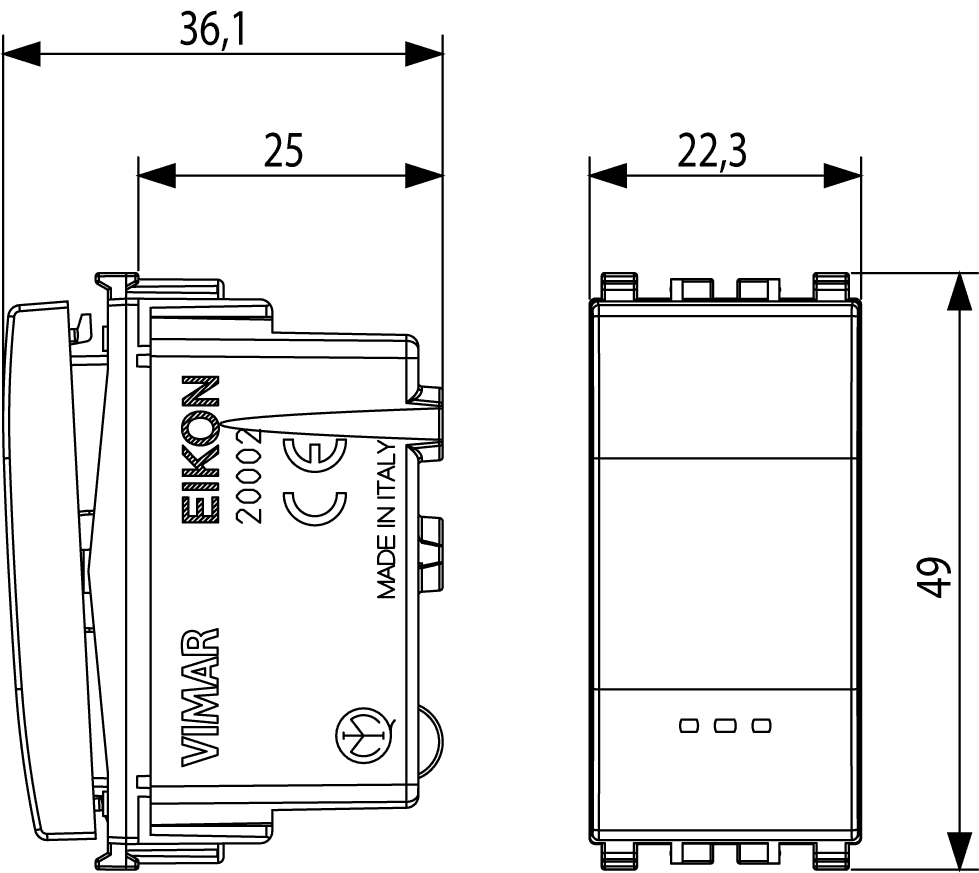

view encumbered art. 20002
PNG DXF
rear view art. 20002
PNG DXF
3D view art. 20002
PNG DXF
Class group
Domestic switching devices
Class
Installation switch
Wiring system
Off switch 1-pole
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Number of modules (module system)
1
Push button switch
Yes
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
Grey
RAL-number (similar)
7024
Label space/information surface
Yes
Illumination
Optional
Function lighting
Control and orientation
Type of lighting
LED exchangeable
Suitable for degree of protection (IP)
IP40
Nominal voltage
250 V
Rated current
20,00 A
Feedback-signal contact
No
Connection type
Screwed terminal
Washing machine switch
No
Device width
22,30 mm
Device height
49,00 mm
Device depth
36,80 mm
Built-in depth
25,00 mm

00. CE Marking - EU

01. IMQ - Italy

19. NOM - Mexico

31. TISI - Thailand

36. ISI - India

37. Marking - Morocco

96. Electrotechnical expert

99. WEEE Directive

Minimum order quantity: 50 NR

Barcode

Barcode Qty 1 NR
8007352403802
1 NR
4.1x2.8x5.3 [cm]
26.72 [g]
Barcode Qty 50 NR
8007352403819
50 NR
21.4x11.6x14.2 [cm]
1,421.26 [g]
