Classic plate 8M metal brushed brass - 19668.12.01

Pdf
Vimar - 19668.12.01 - Classic plate 8M metal brushed brass
Vimar - 19668.12.01 - Classic plate 8M metal brushed brass

19668.12.01
Wiring devices / Traditional wiring devices / ARKÉ / Cover plates

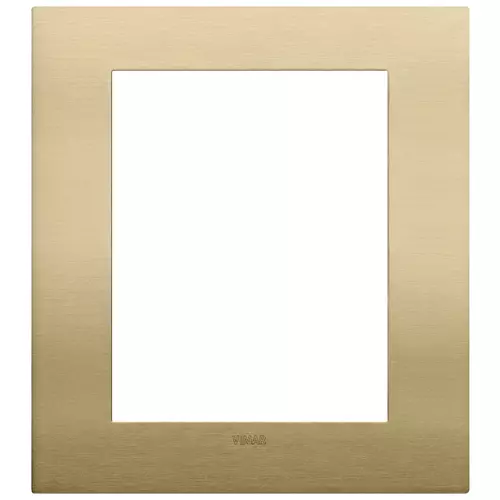

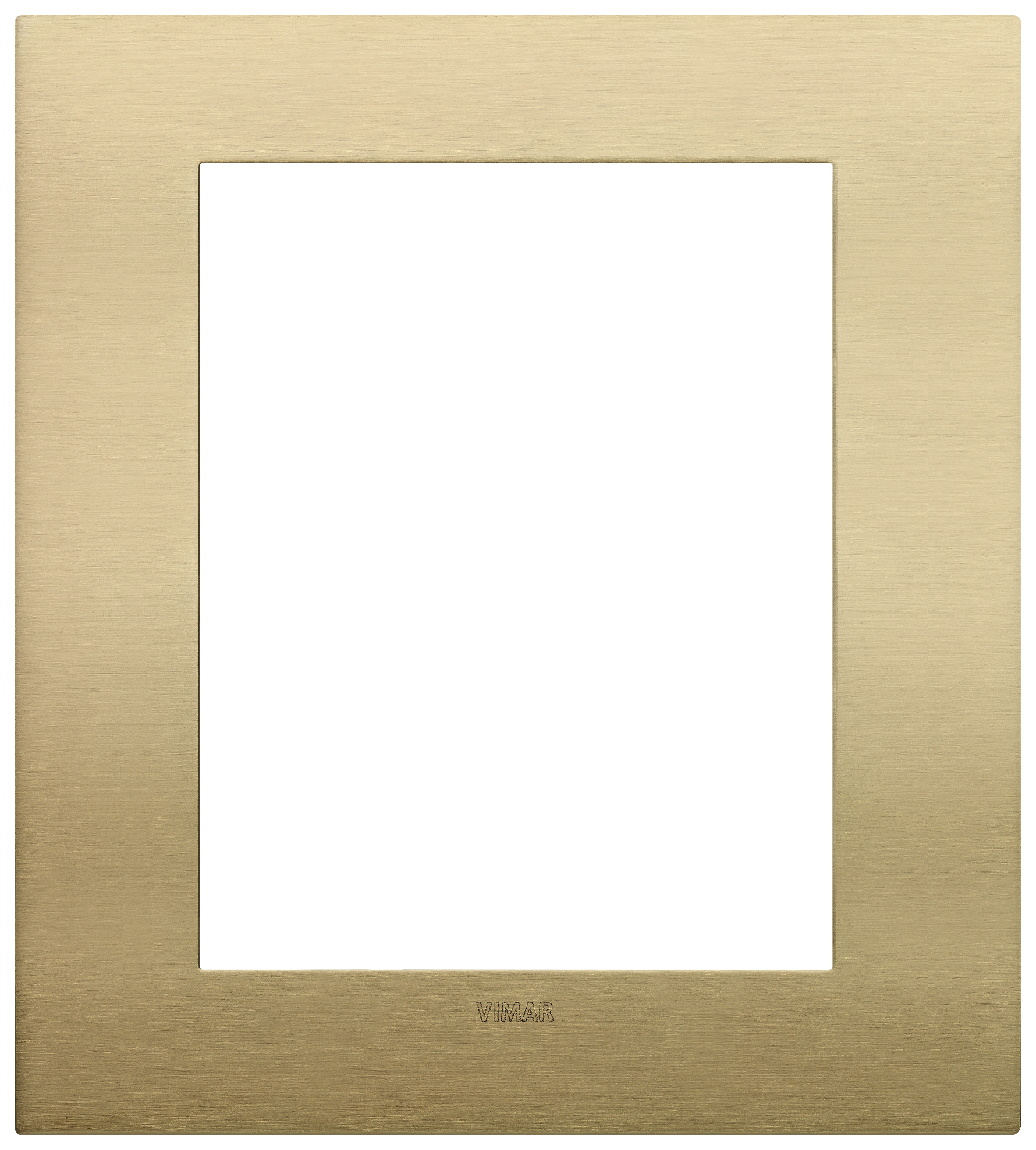

Classic plate 8M metal brushed brass

Product Status
3 - Active

Drawings

view encumbered art. 19668.12.01
PNG DXF
rear view art. 19668.12.01
PNG DXF
3D view art. 19668.12.01
PNG DXF
Class group
Domestic switching devices
Class
Cover frame for domestic switching devices
Number of units
8
Mounting direction
Horizontal and vertical
Number of units horizontal
4
Number of units vertical
2
Number of modules horizontal (module system)
4
Number of modules vertical (module system)
2
With mounting grid
Yes
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
Yes
Suitable for wall duct
Yes
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Metal
Material quality
Other
Halogen free
Yes
Anti-bacterial treatment
No
Surface protection
Metallic
Surface finishing
Matt
Colour
Brass
RAL-number (similar)
1036
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP00
Type of fastening
Clamp mounting
Width
146,50 mm
Height
163,00 mm
Depth
9,30 mm
Built-in width
146,50 mm
Built-in height
0,00 mm

00. CE Marking - EU

01. IMQ - Italy

29. QCERT - Colombia

Minimum order quantity: 1 NR

Barcode

Barcode Qty 1 NR
8007352721401
1 NR
18.5x18.5x2.2 [cm]
247 [g]
